5304

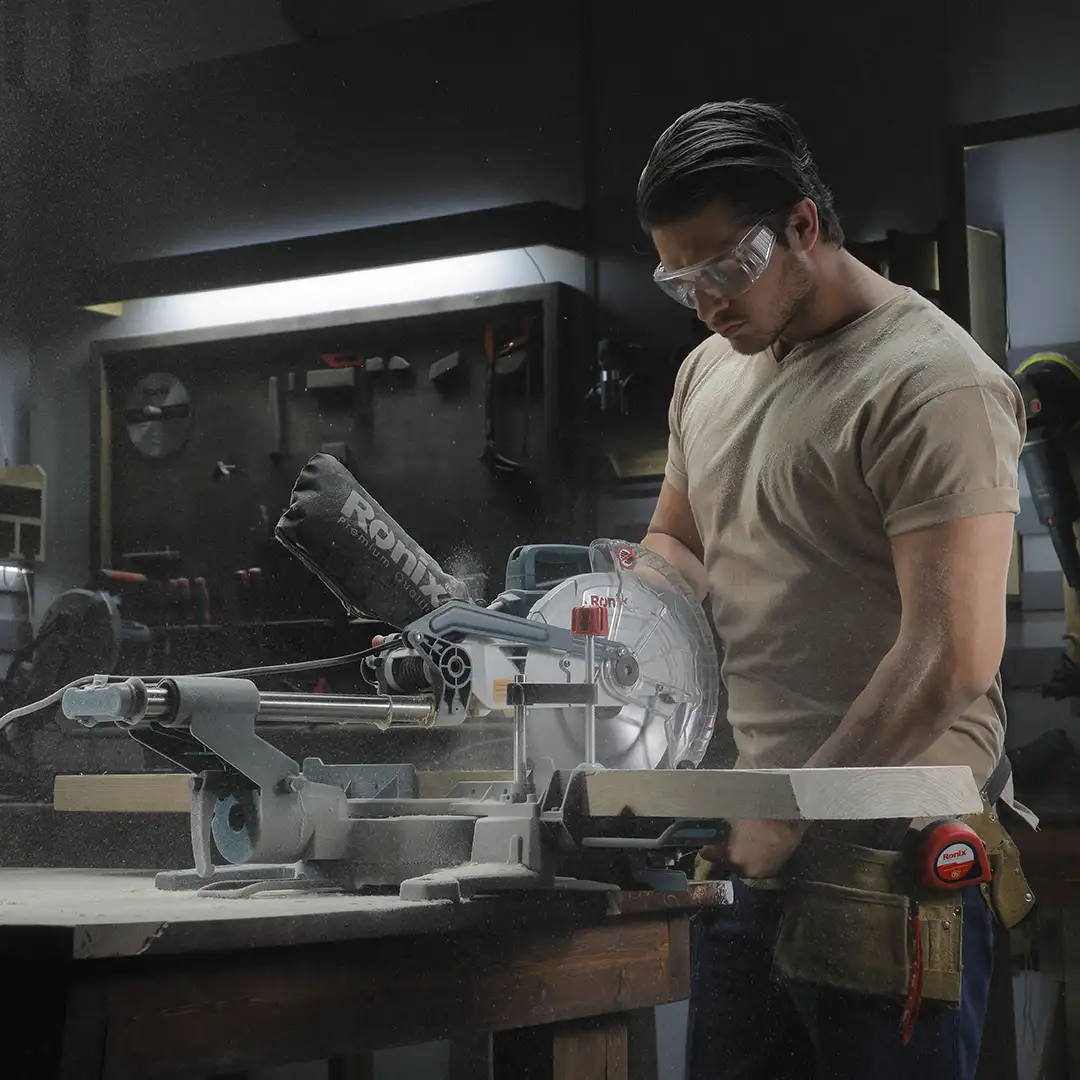

Sliding Miter Saw 1800W-255mm

Write a review

Compare

The special feature of an electric miter saw model is that it allows the blade to be operated by a motor. It looks somewhat like a circular saw and has a table and a saw (blade and motor). The saw is attached to an articulated arm which allows the user to lower the machine straight or at an angle onto the workpiece that is placed on the table. It is also important to note that apart from their functionality, electric miter saws vary in power and performance. They are equipped with a movable table that in some cases has a scale ranging from 0 to 90°. The purpose of this graduation is to allow crosscuts with high quality. Ronix miter saw with a power of 1800W creates a speed of 5200 RPM which rotates the 255mm cutting disc of the machine, is a tool for precise cutting of wood, PVC, metal, etc. This miter saw can make do-it-yourselfers or professionals pleased. So, it is an ideal power tool to have around on a job site or for a DIY project.

Hot Sales

Download Catalog

Detailed Description

When choosing the right electric miter saw, you need to consider the parts you will be cutting. If it is light work, an electric miter saw with low power and cutting height is sufficient. For the rest and more demanding jobs, choose Ronix 5304.

Ronix 5304, 1800W 255mm Singel Bevel Sliding Miter Saw:

The Ronix 5304 miter saw is not only capable of making angled cuts but also angled and straight cuts. Whether it's for landscaping work or harder jobs, Ronix 5304 will satisfy you. To learn more, this article will help you.

Motor and mechanism:

The sliding miter saw is armed with sliding rails perk. The major advantage of this model is that you do not have to move the workpiece yourself. It is very practical when the pieces are thick and heavy. This saves time and reduces handling fatigue. The power and the number of revolutions per minute are directly related to the capacity of the saw to cut material. The motor of the 5304 has a power of 1800 watts. The rotation of the blade is 5200 revolutions per minute which permits having a maximum cutting depth of 89x320mm at 0°/90°, 89x210mm at 45°/90°, 42x320mm at 0°/45°, 42x210mm at 45°/45. Ronix 5304 miter saw is fitted with a 255mm TCG blade for making accurate crosscuts. Replacement blades are part of the life of any saw, and certainly of miter saws. Over time, they wear out, become less sharp and strong, and need to be replaced. When changing the blade, the tool is equipped with a spindle locking system that allows quick and easy change and a safety mechanism.

Body:

One consideration is the weight of the machine, especially if you will be using the sliding miter saw for long hours. A machine tool that is too heavy can make you unnecessarily tired and cause tendonitis and other backaches. That's why we advise you to choose the Ronix 5304 with a moderate weight of 20 kg. Of course, there are lighter miter saws that make it easier to move around. However, they will also be less powerful and therefore less suitable for large construction sites and professional use. A horizontal D-handle is featured on this miter saw for a better fit and ease of use. It also has an adjustable and extendable base for additional workpiece support. Besides, miter saws need to offer maximum safety, both for the users and the machine itself. For this reason, all switches are dust-free to reduce dust penetration. The efficient dust collection system also allows for cleaner operations in your work area. The saw is also equipped with an advanced table locking system for quick and accurate adjustment of common angles with 9 locking points.

Accessories and packaging:

The Ronix 5304 miter saw is supplied in a Ronix-designed color box including a dust bag, a spanner, a pair of carbon brushes, a vise Screw, an angled handle, and an extension board.

Features

Download Exploded View Download User Manual

- Powerful 1800W motor delivers 5200RPM for maximum productivity and top performances in different functions
- Made from high quality material which secures precise cutting in different angles and applications
- Adjustable and expandable base extensions for additional work-piece support
- Compact design and lightweight for job site portability
- Horizontal D-handle design for better fit and easy and comfortable operation
- Advanced table locking system for fast and precise setting in common angles by using 9 stop points
- Efficient dust collection system enables cleaner operations
- Material clamp for secure fixing of the work piece from the top
- Spindle lock system for easy and fast wheel changing and safety mechanism
- Anti-dust switch for reducing dust penetration and longer life
- Ability to perform angular cutting in both bevel and table position
- Armed with scaled fence and movable fence
- Include with TCG blade
- Armed with sliding rails perk for increase cutting capacity
- Equipped with protection guard for user safety

Download Exploded View Download User Manual

Specifications

Model

5304

Power

1800W

Voltage

220-240V

Frequency

50-60Hz

No-Load Speed

5200RPM

Disk Diameter

255mm

Max Cutting Capacity at 0°/90°

89*320mm

Max Cutting Capacity at 45°/90°

89*210mm

Max Cutting Capacity at 0°/45°

42*320mm

Max Cutting Capacity at 45°/45°

42*210mm

Weight

20kg

Includes

Wrench,Carbon brush,Dust Bag,Vise Screw,Angle Handle,Extention Board.
