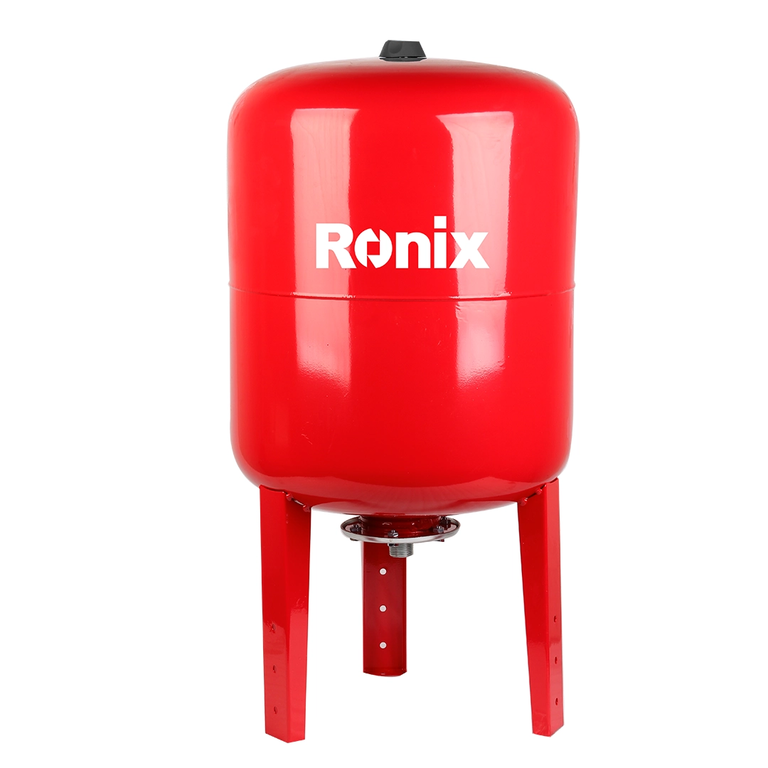

Pressure Tank 80L-16Bar
Model : RH-4072
: 0
Ronix-product-detail-10519-1
Pressure Tank 80L-16Bar
Pressure Tank 80L-16Bar

similar model

RH-4072 RH-4070 RH-4071 RH-4073

Model : RH-4072 (NA)

Pressure Tank 80L-16Bar

Barcode For Inner Carton : 6942318625329

Bulk Order
  • Max pressure: 16 bar Schrader valve pre-pressure: 2-2.5 bar
  • Pressure tank outside have painting
  • Both the diaphragm of the Pressure Wave tanks are reinforced in specific wear areas to enhance longevity and reliable performance All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions
  • The pressure boosting tank optimizes water pump performance, ensuring a steady and consistent water flow, especially during peak demand periods
Designed for pump systems that need higher water storage capacity, the Ronix RH-4072 is an 80 L vertical pressure tank with a carbon steel body, 1.5 mm tank body thickness, EPDM diaphragm, and 1 in connection. Its 16-bar maximum pressure rating and Schrader valve pre-charge set between 2–2.5 bar help support efficient pump operation and steady, consistent water flow during peak demand periods.
Model RH-4072
Max Pressure 16 Bar
Style vertical
Capacity 80 L
Tank Material carbon steel
Tank body thickness 1.5 mm
Diaphragm Material EPDM
Connection 1 inch
Weight 16 kg
Supplide in carton
Accessories /
Downloads & Resources
Discover more below about the body structure, diaphragm components, and water supply performance of the Ronix RH-4072.
Built with a carbon steel body and 1.5 mm tank body thickness, the RH-4072 offers an 80 L capacity in a vertical tank style. A protective paint coating helps resist corrosion, while the 16 kg weight gives the tank a stable structure for pump system installation.
Strengthened key wear areas help the EPDM diaphragm support extended durability and reliable operation. Inside the tank, all internal parts, including the air valve, are rounded to help reduce the risk of diaphragm damage under demanding conditions.
A 16-bar maximum pressure rating allows the RH-4072 to support steady pump system performance. The Schrader valve pre-charge is set between 2–2.5 bar, helping the tank enhance pump efficiency and provide steady, consistent water flow, even during peak demand periods.
The Ronix RH-4072 Pressure Tank is supplied in carton packaging.
