Pressure Tank 24L-10Bar
Model : RH-4070
: 0
Ronix-product-detail-10519-1
Pressure Tank 24L-10Bar
Pressure Tank 24L-10Bar

similar model

RH-4070 RH-4071 RH-4072 RH-4073

Model : RH-4070 (NA)

Pressure Tank 24L-10Bar

Barcode For Inner Carton : 6942318625305

Bulk Order
  • Max pressure: 10 bar Schrader valve pre-pressure: 2-2.5 bar
  • Pressure tank outside have painting
  • Both the diaphragm of the Pressure Wave tanks are reinforced in specific wear areas to enhance longevity and reliable performance All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions
  • The pressure boosting tank optimizes water pump performance, ensuring a steady and consistent water flow, especially during peak demand periods

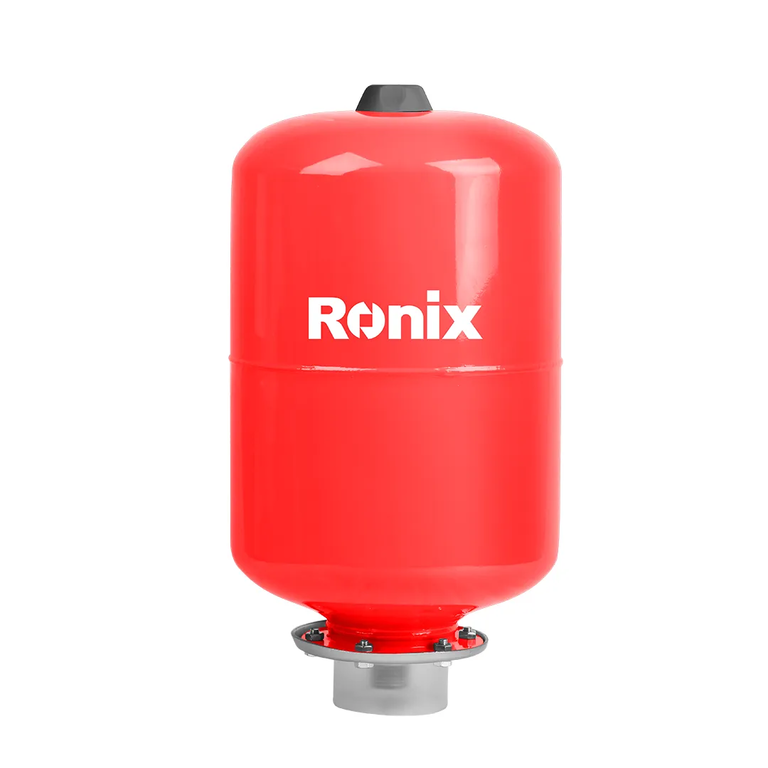

The Ronix RH-4070 is a vertical pressure tank designed to support steady and consistent water flow in pump systems. It features a 24 L carbon steel tank with a 1.2 mm body thickness, a reinforced EPDM diaphragm, and a 1 in connection. With a maximum pressure of 10 bar and a Schrader valve pre-charge set between 2–2.5 bar, this pressure tank helps improve pump performance and supports reliable water supply during peak demand periods.
Model RH-4070
Max Pressure 10 Bar
Style vertical
Capacity 24 L
Tank Material carbon steel
Diaphragm Material EPDM
Tank body thickness 1.2 mm
Connection 1 inch
Weight 5.5 kg
Packaging carton
Accessories /
Downloads & Resources
Ronix-product-detail-10521-1

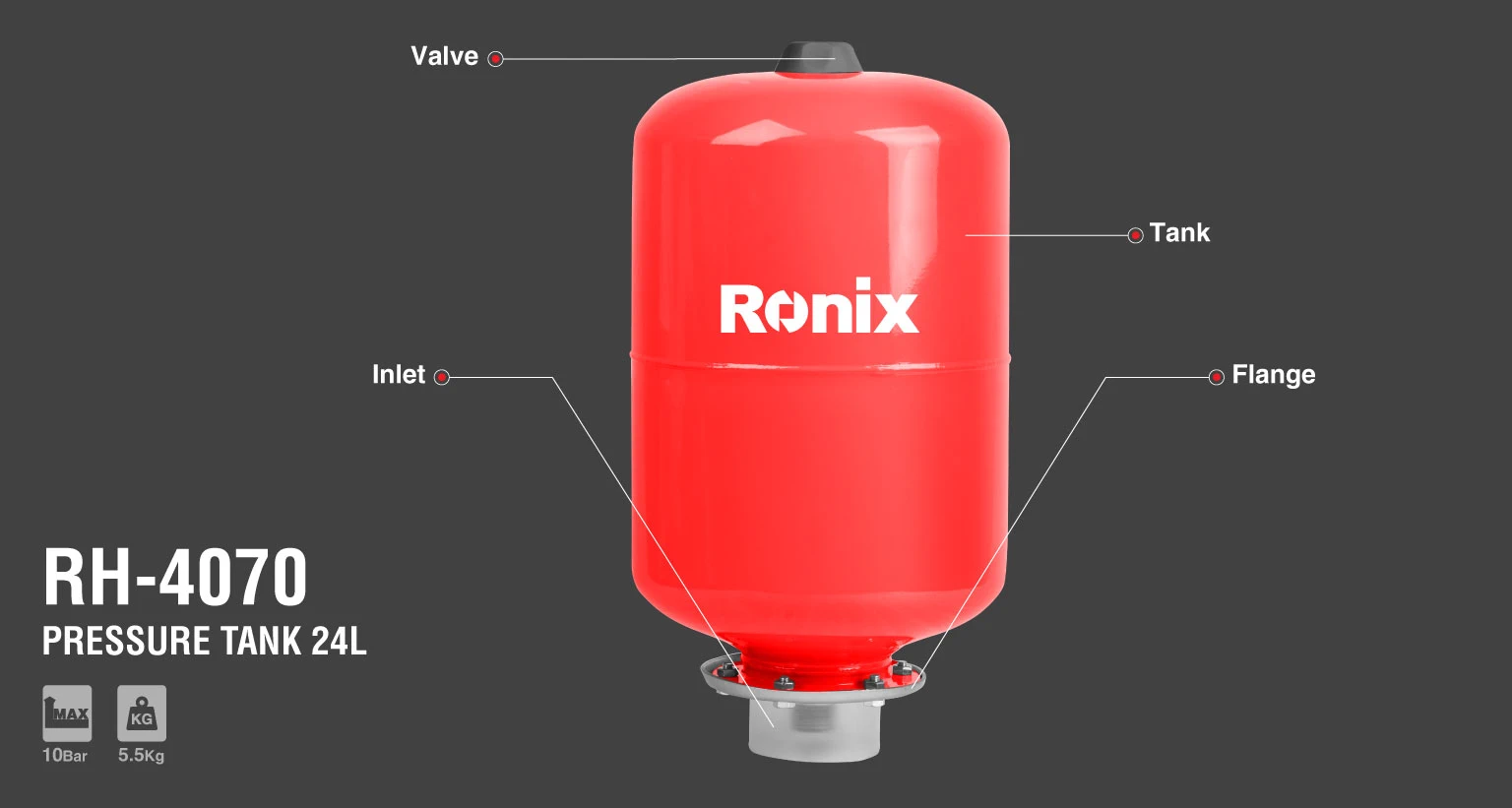

Take a closer look below at the design, diaphragm structure, and performance features of the Ronix RH-4070 Vertical Pressure Tank.
The RH-4070 has a vertical tank style with a carbon steel body, protective paint coating for corrosion resistance, and a 24 L capacity. Its 1.2 mm tank body thickness and 5.5 kg weight provide a practical structure for regular pump system use.
This model uses an EPDM diaphragm with reinforced key wear areas for extended durability and reliable operation. All internal parts, including the air valve, are rounded to help prevent diaphragm damage under demanding conditions.
The RH-4070 supports a maximum pressure of 10 bar and comes with a Schrader valve pre-charge set between 2–2.5 bar. Its design helps optimize water pump efficiency, supporting steady and consistent water flow even during peak demand periods.
The Ronix RH-4070 Pressure Tank is supplied in carton packaging.
