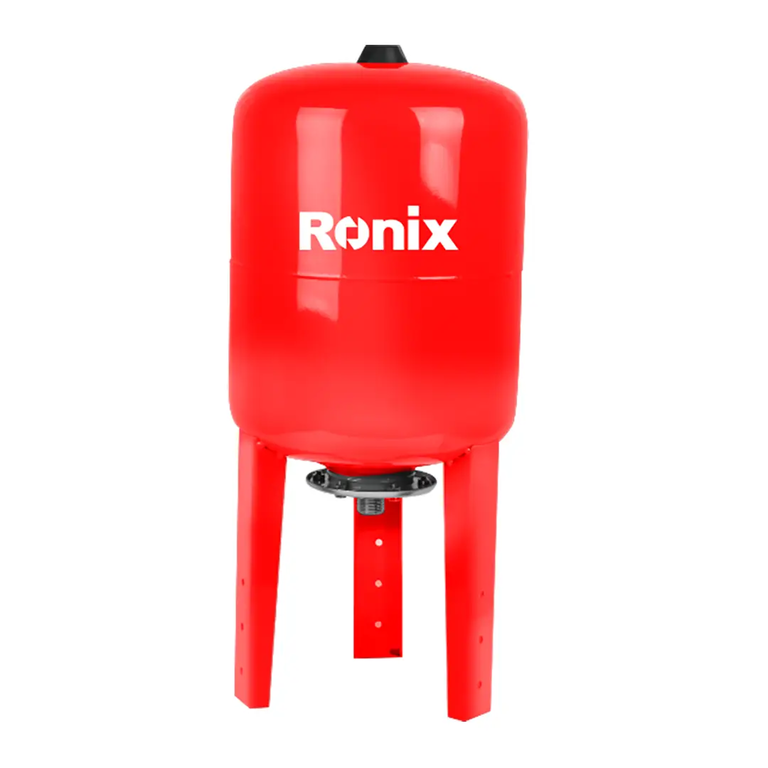

Pressure Tank 50L-16Bar
Model : RH-4071
: 0
Ronix-product-detail-10519-1
Pressure Tank 50L-16Bar
Pressure Tank 50L-16Bar

similar model

RH-4071 RH-4070 RH-4072 RH-4073

Model : RH-4071 (NA)

Pressure Tank 50L-16Bar

Barcode For Inner Carton : 6942318625312

Bulk Order
  • Max pressure: 16 bar Schrader valve pre-pressure: 2-2.5 bar
  • Pressure tank outside have painting
  • Both the diaphragm of the Pressure Wave tanks are reinforced in specific wear areas to enhance longevity and reliable performance All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions
  • The pressure boosting tank optimizes water pump performance, ensuring a steady and consistent water flow, especially during peak demand periods
The Ronix RH-4071 vertical pressure tank comes with a 50 L carbon steel tank, 1.5 mm tank body thickness, reinforced EPDM diaphragm, and 1 in connection. With a maximum pressure of 16 bar and a Schrader valve pre-charge set between 2–2.5 bar, this model helps support efficient pump operation and steady water supply during peak demand periods.
Model RH-4071
Max Pressure 16 Bar
Style vertical
Capacity 50 L
Tank Material carbon steel
Diaphragm Material EPDM
Tank body thickness 1.5 mm
Connection 1 inch
Weight 11 kg
Packaging carton
Accessories /
Downloads & Resources
Explore the sections below for more details on the design, diaphragm structure, and water supply performance of the Ronix RH-4071.
The RH-4071 has a vertical tank style with a 50 L capacity and carbon steel construction. Its tank body has a 1.5 mm thickness, while the protective paint coating helps resist corrosion. With an 11 kg weight, this pressure tank provides a solid structure for pump system use.
This pressure tank is equipped with an EPDM diaphragm, with key wear areas strengthened to support durability and reliable operation. The internal parts, including the air valve, are rounded to help reduce the risk of diaphragm damage under demanding conditions.
The RH-4071 supports a maximum pressure of 16 bar and uses a Schrader valve pre-charge set between 2–2.5 bar. Its design helps enhance water pump efficiency and supports steady, consistent water flow, even during peak demand periods.
The Ronix RH-4071 Pressure Tank is supplied in carton packaging.
