Vacuum suction cup with pressure gauge 200k
Model : RH-9933
: 0
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k
Vaccume suction cup with pressure guage 200k

Model : RH-9933 (NA)

Vacuum suction cup with pressure gauge 200k

Barcode : 6975451227570

Bulk Order
Strong suction cup, which can work at a temperature of 0° C to 60°C and lift objects to200 kg (Level Load capacity:180 kg
Vertical plane Load capacity:110kg)

Red-Line Indicator Warns User of Any Vacuum Loss
Equipped with Release Valve Lever and quick release rubber block
non-slip handle design increase friction and prevents hand slip
Made of odorless and  durable natural rubber for a strong and safe grip.
Suitable for lifting and moving glass, floor, window, tile, granite, doors and any clean, smooth, flat, non-porous  surface

Lifting loads needs strong tools, but lifting and carrying flat surfaces like glass and doors needs specific precise mechanisms. Ronix RH-9933 Vacuum Suction Cup is the tool that can have all the jobs done perfectly and with no trouble. This tool has different features that make it a very safe and durable assistant in any situation.

Model RH-9933
Load Capacity 200 Kg/Level Load capacity:180 kg/Vertical plane Load/capacity:110kg
Pad size 200mm
Pad Material rubber
Body Material PA6
Dimention 200*200*85mm
Supplied in BMC
Includes Sealing ring ,gasket, hook tools
Downloads & Resources
Ronix-product-detail-10521-1

To know more about RH-9933 Vacuum Suction Cup 200K scroll down to read the following parts about different aspects of this tool.

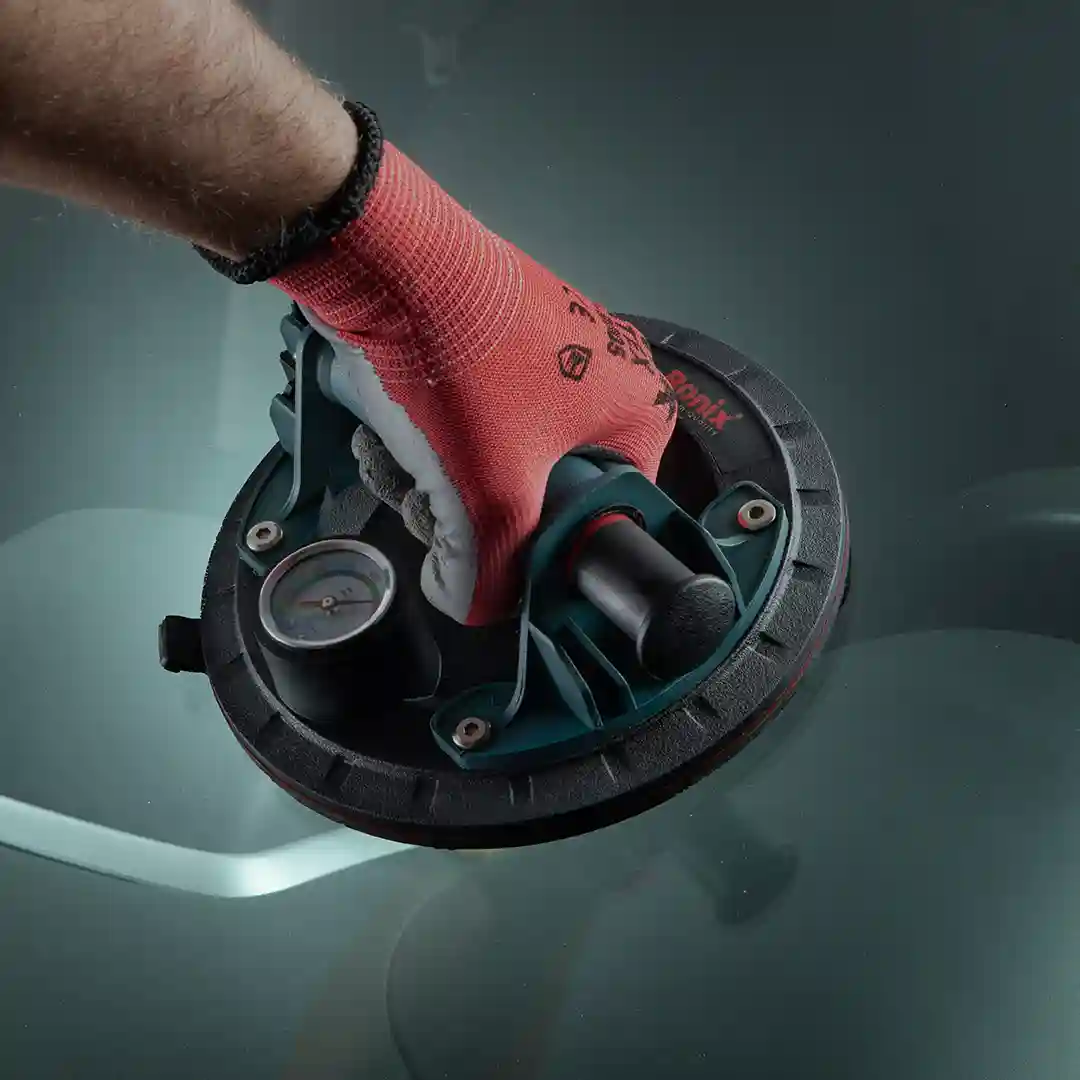

The suction cup is constructed from PA6 and features a durable, odorless natural rubber grip. It measures 200x200x85mm, with a pad diameter of 200mm. Additionally, the handles are designed with anti-slip properties to enhance grip and reduce the risk of slipping.

Ronix RH-9933 can carry up to 200kg loads horizontally and lift 110kg loads vertically.

This tool has several features that make it safer to use. It has a release valve lever, a quick-release rubber block, and a red-line indicator that warns you if there is any vacuum loss. It also comes with a pressure gauge to check the vacuum pressure. Another feature that makes it strong and reliable is that it works in temperatures from 0°C to 60°C.

The suction cup is supplied in a BMC case, including a sealing ring, gasket, and hook tools.
