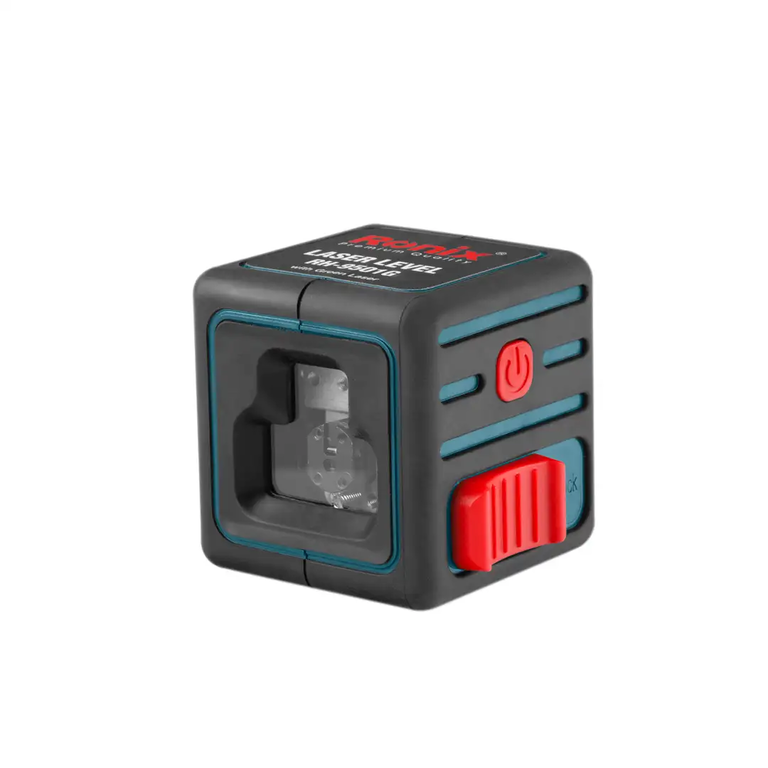

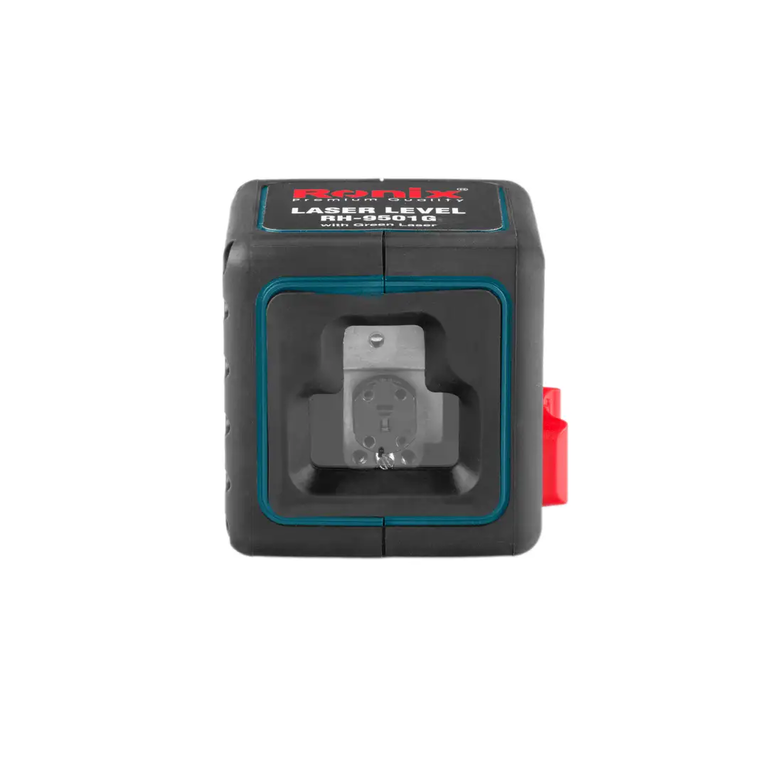

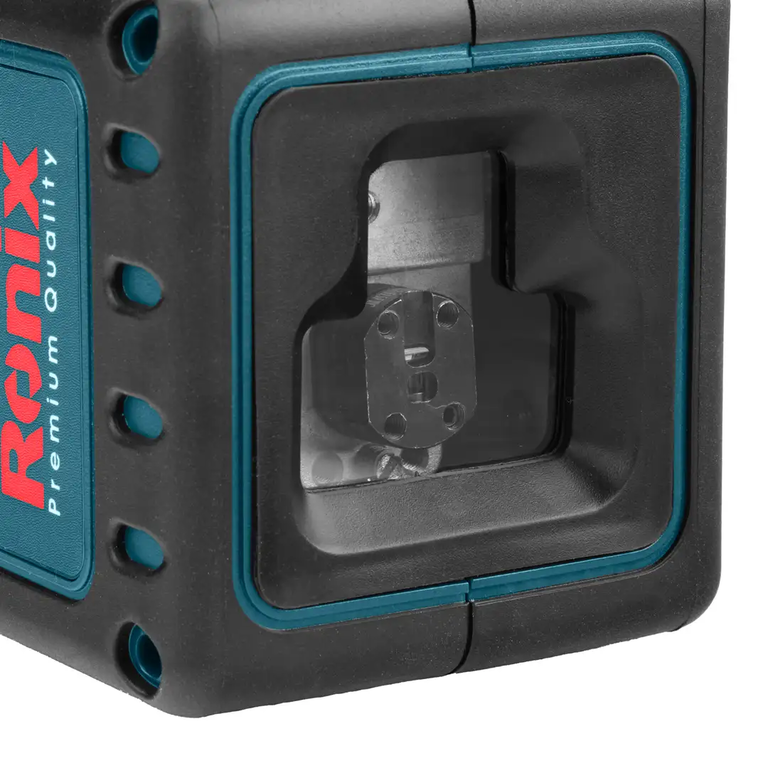

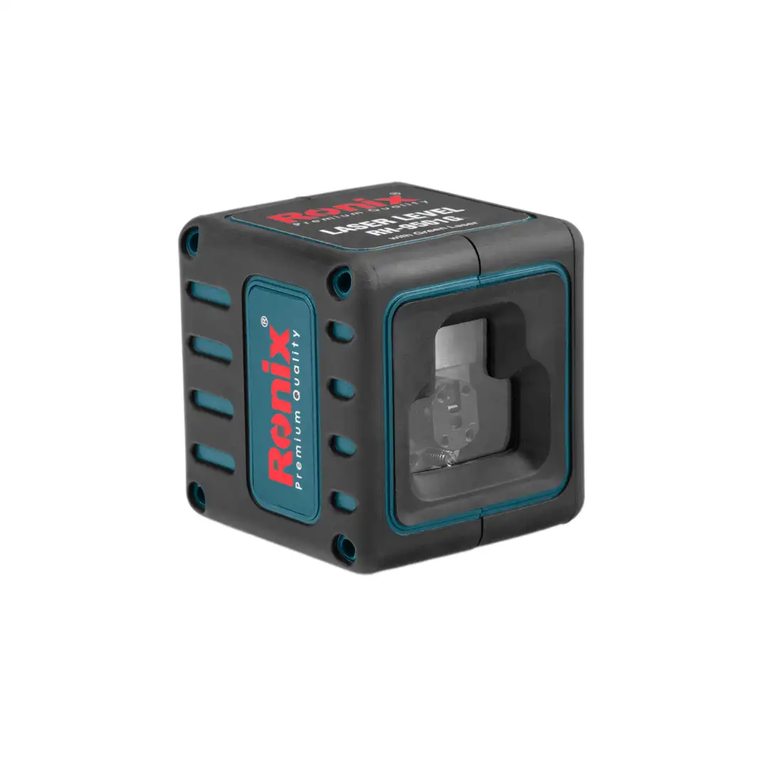

RH-9501G

LASER LEVEL

Write a review

Compare

Hot Sales

Download Catalog

Detailed Description

Features

Download User Manual

-Both Indoor & Outdoor available(with detector)
-Vertical, Horizontal & Cross green Line Modes
-Able to set up quickly and effortlessly to project horizontal or vertical lines
-Self-leveling system compensate minor angular misalignments of ± 3 automatically
-Built-in locking system to lock the compensator when in transportation to avoid vibration
-Robust Over‐Molded Housing
-Working with various related accessories to reach nearly all applications easily

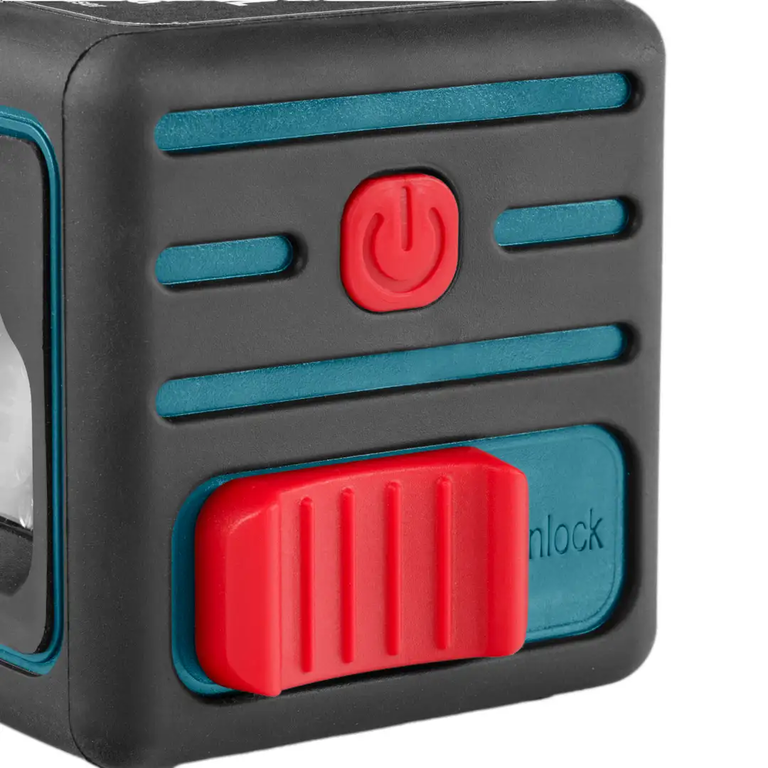

-Pendulum lock for protecting laser system during movements

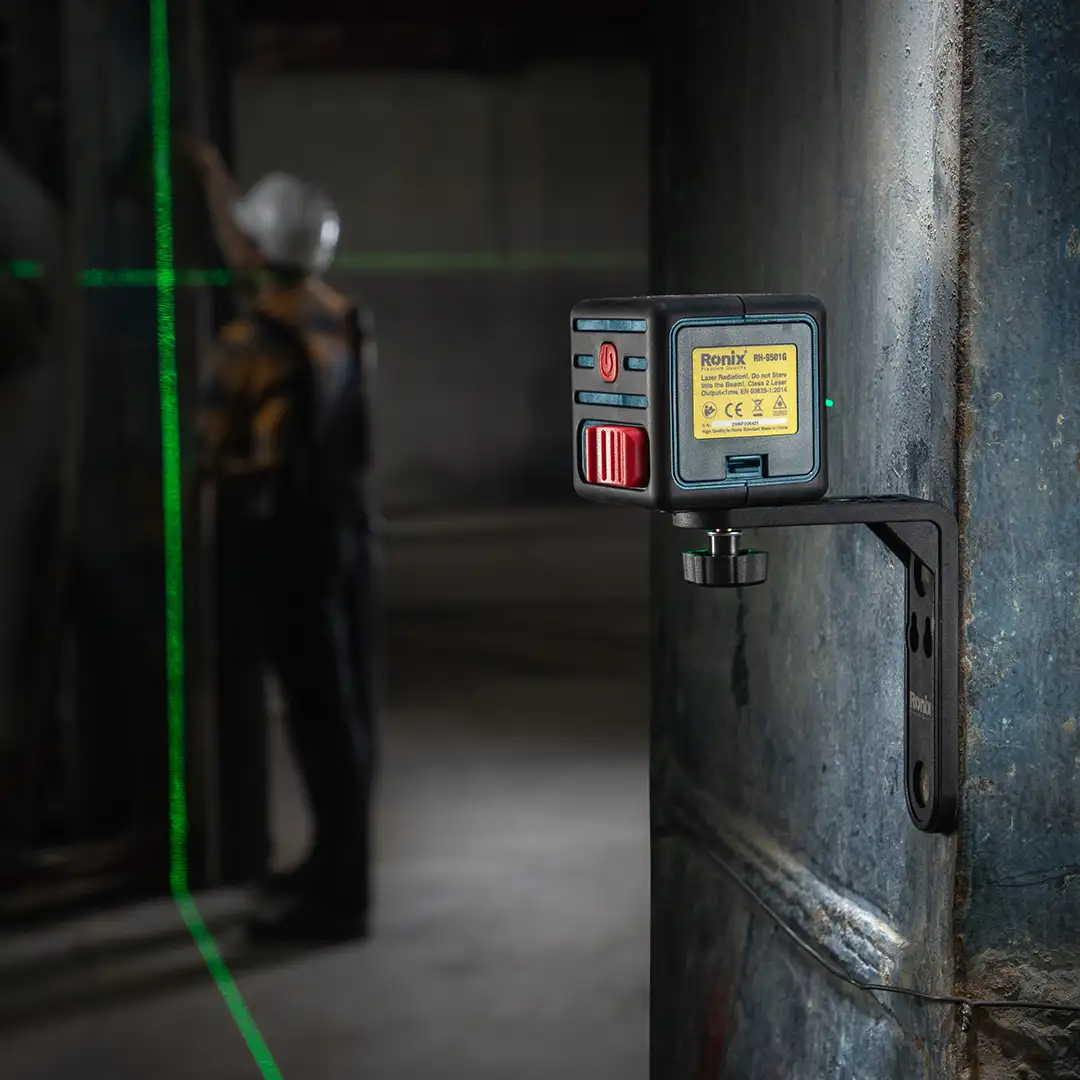

-Equipped with magnetic pivoting base which can be easily adsorbed onto metal parts

Download User Manual

Specifications

Model

RH-9501G

Accuracy

±2mm @ 5m

Leveling Range

±3°

Working Range/With Detector

10m/50m (Working with laser receiver)

Tripod Thread

"1/4

Laser Color

GREEN

Laser Type

515nm, laser class II

Line Width

2mm @ 10m

Operating Temperature

10°C to 45°C-

Storage Temperature

20°C to 60°C-

Dimension

65x65x65/mm3

"Continuous Working Time (All Diodes）"

≥ 5hour

Resistance

IP54

Power Supply

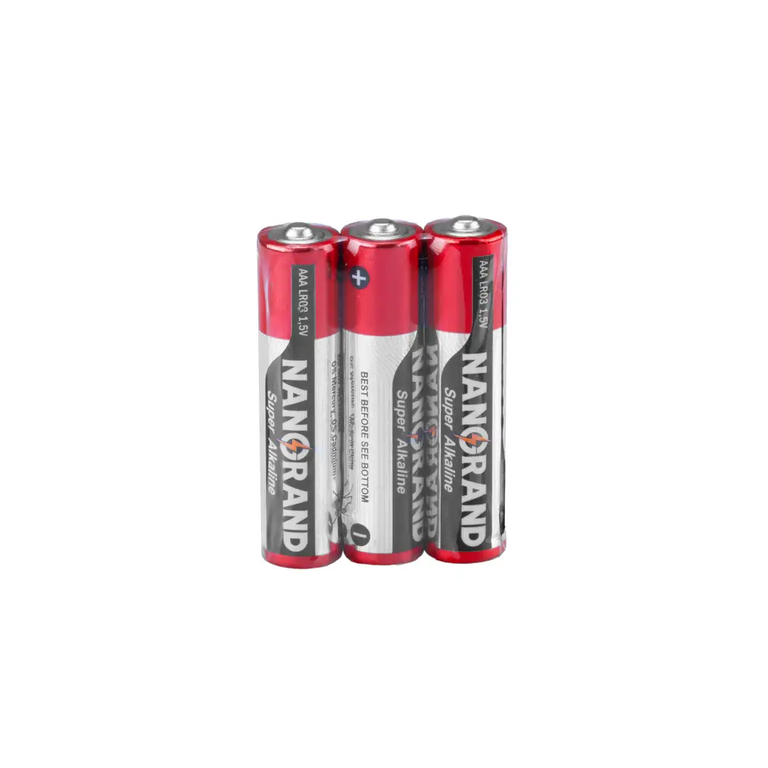

3xAAA Alkaline battery

Net Weight

0.23Kg

Total weight

0.64kg

Supplied in

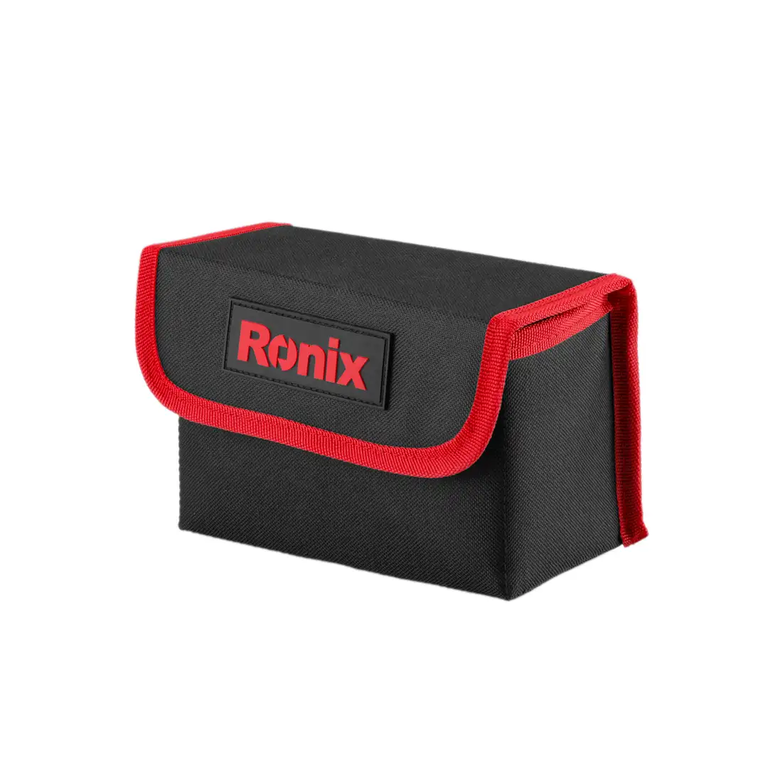

BAG

Includes

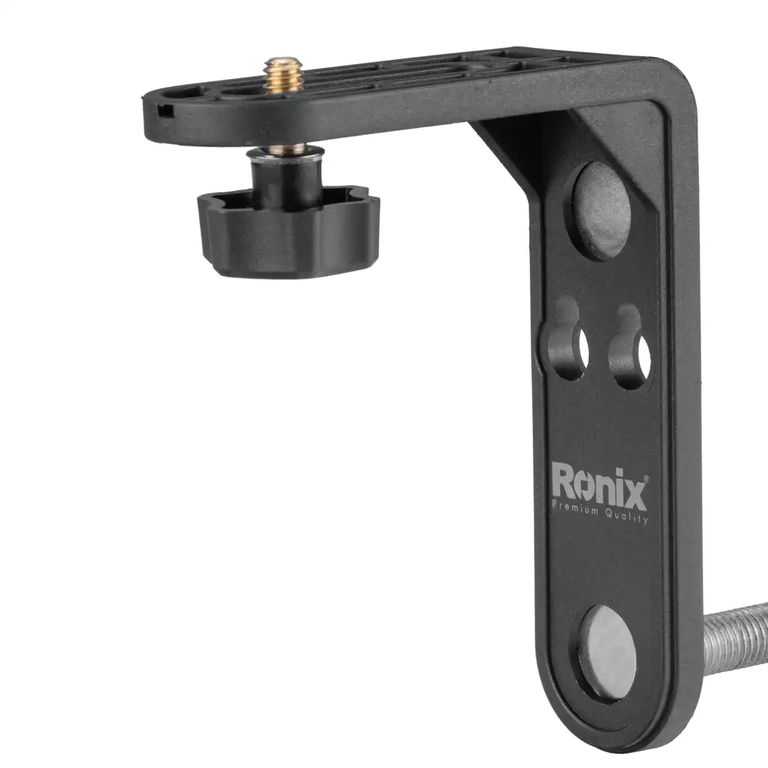

FRJ300A Bracket,manual
