RH-9537

3D Laser Level-132x85x127mm3

Write a review

Compare

Most customers may wonder What is the most common measuring tool, before buying it. But first, you need to consider a few things, the most crucial of which is what application and type of work site you want to utilize it for. Because it is preferable to use some of these measuring tools indoors as opposed to outdoors, such as 3D laser levels.

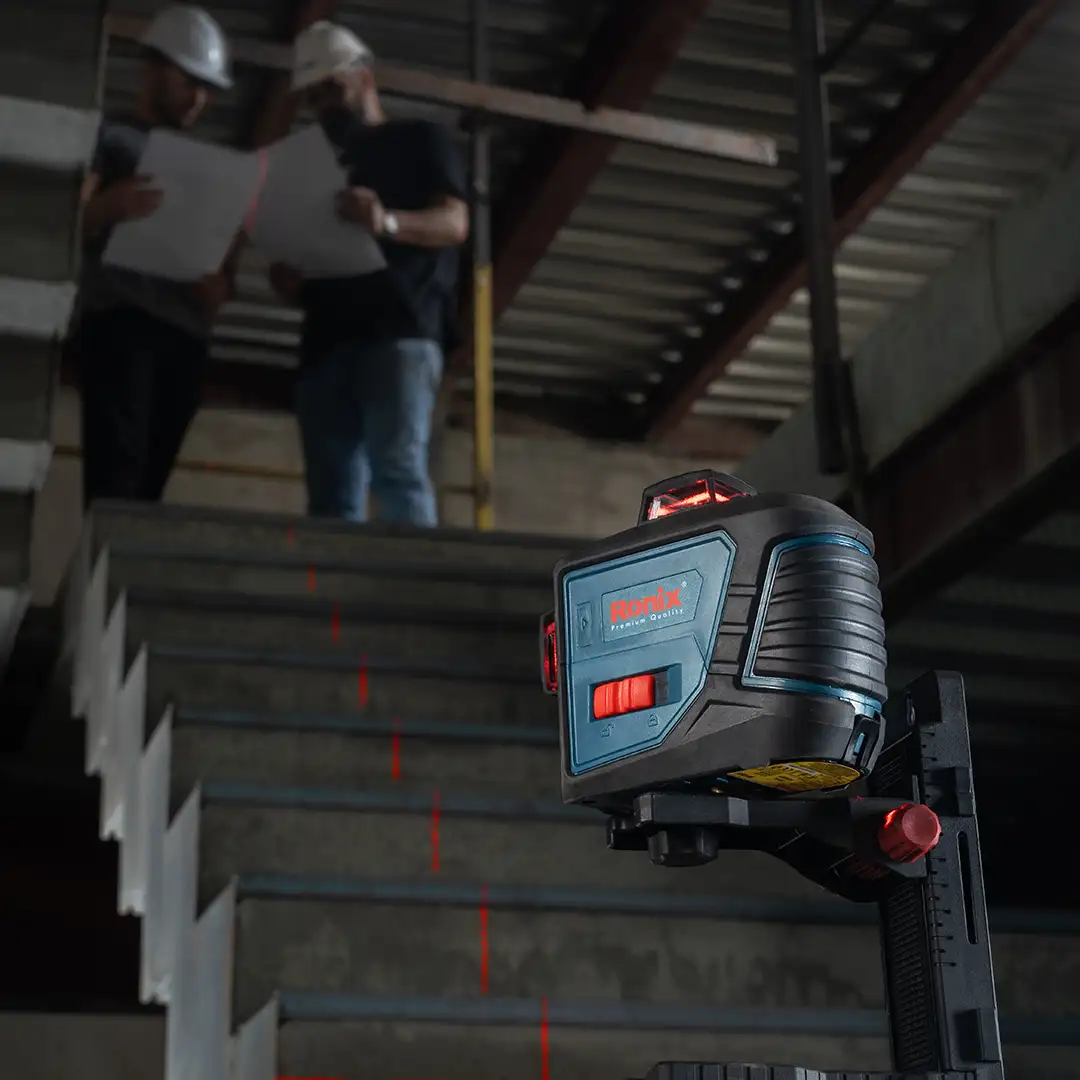

Ronix RH-9537 3D Laser Level is best utilized indoors rather than outside. It may be used in both vertical and horizontal orientations. There includes a self-leveling mechanism that automatically compensates for slight angular misalignments of ±3°, making this 3D laser level as exact as possible. A locking system is put in to avoid vibration while transferring the tool to different areas.

Proceed to the “Detailed Description” section to see the additional features of this 3D Laser Level.

Hot Sales

Download Catalog

Detailed Description

Ronix RH-9537 3D Laser Level is a perfect leveling tool to fulfill users’ needs, primarily for indoor applications. It comes in a BMC case to help you with transportation and maintenance.

Why do you need a 360˚ laser level?

Before using a laser level, you need to learn about its characteristics and features. Laser levels are produced in different types and brands, and each one offers its usage, features, and advantages to the users. In the following, learn more about Ronix RH-9537 features and specifications.

Laser Technology:

Rh-9537 is manufactured with high laser leveling technology, and the laser type used in this product is a 660nm laser class II. Its laser width is also 3.5 mm at 10m.

Measuring Accuracy:

The Working Range of this self-leveling laser level is 15m/70m with the laser receiver, and the accuracy of vertical and horizontal lines is ± 2mm at 5m. It provides three precise 360-degree full plane coverage in both horizontal and vertical operations.

Operating Temperature:

The operating temperature of this laser level is -10˚C to 50˚C.

Self-Leveling System:

The self-leveling system compensates for minor angular misalignments of ± 3° automatically. To turn the self-leveling system off and work on tilt lines without vibration or alarm interference, you can use the side lock switch and disable the compensating system.

Pendulum Locking System

Its secure transport lock protects the pendulum when the unit is switched off. The laser lines can be locked when in use, and can play the role of a ruler.

Body:

The ergonomic anti-shock body design of the RH-9537 with 675gr of weight and robust over‐molded housing removes the risk of damage in case of falling or stroke. The dimensions of this tool’s body are 132x85x127 mm3. Its IP54 water and dust-proof standard ensure years of dependable operation. This laser level has two tripod threads with the size of 1/4" & 5/8''.

Quick Set-Up System:

This laser level can be set up quickly and effortlessly to project horizontal plane or vertical lines.

Base:

It is equipped with a freestanding base with a rubber edge to stand more stably.

Battery:

This laser leveling tool has a Li-ion battery 7.4V/2600mAh or 4X AA alkaline battery pack that provides≥ 15 hours of continuous work with all diodes.

Packaging and Accessories:

Ronix RH-9537 is supplied in a BMC case and includes accessories like a li-ion battery, 4X Alkaline batteries, a charge box, charge, laser plate, goggles, and bracket.

Features

Download User Manual

Features:

Mostly for indoor application.
Provides Three Precise 360-degree Full Plane Coverage in Both Horizontal and Vertical Operations.
Freestanding base with rubber edge - To stand more stably. With 1/4 inch tripod mounting.
90° horizontal and vertical bright red laser layout lines
Self-levels and visual alarm/line keep flashing indicates out-of level condition(±3°).
Secure transport lock protects pendulum when unit is switched off.
The laser lines can be locked when in use, can play as the role of ruler.
Powered by 2600mah Lithium-ion battery, Can provide more than 15hrs

Download User Manual

Specifications

Model

RH-9537

Accuracy of V&H line

±2mm @5m

Leveling Range

±3°

Working Range/With Detector

15m/70m with laser receiver

Tripod Thread

1/4" & 5/8''

Laser Type

660nm, laser class II

Resistant to

Water and Dust (IP54)

Operating Temperature

‐10℃to 50℃

Laser Width

3.5mm @10m

Dimensions

132x85x127 mm3

Continuous Working Time (All Diodes）

≥ 15hour

Power Supply

Li-ion battery 2600 mAh 7.4V or 4*AA alkaline battery pack

Net Weight

675GR

Supplied in

BMC

Includes

li-ion battery. -Alkaline battery -Charge box -Charger -Laser plate -Goggle. - bracket.
