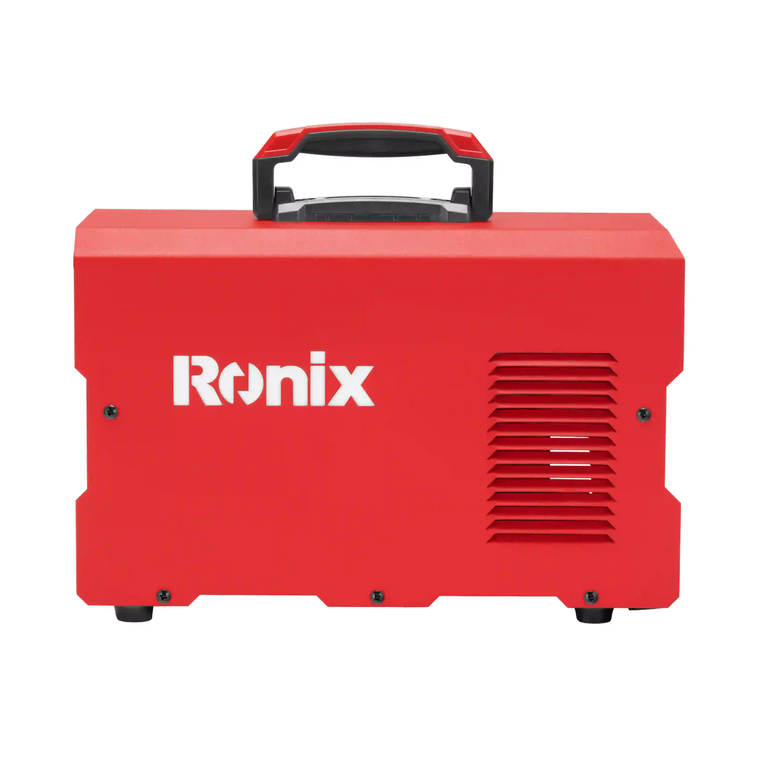

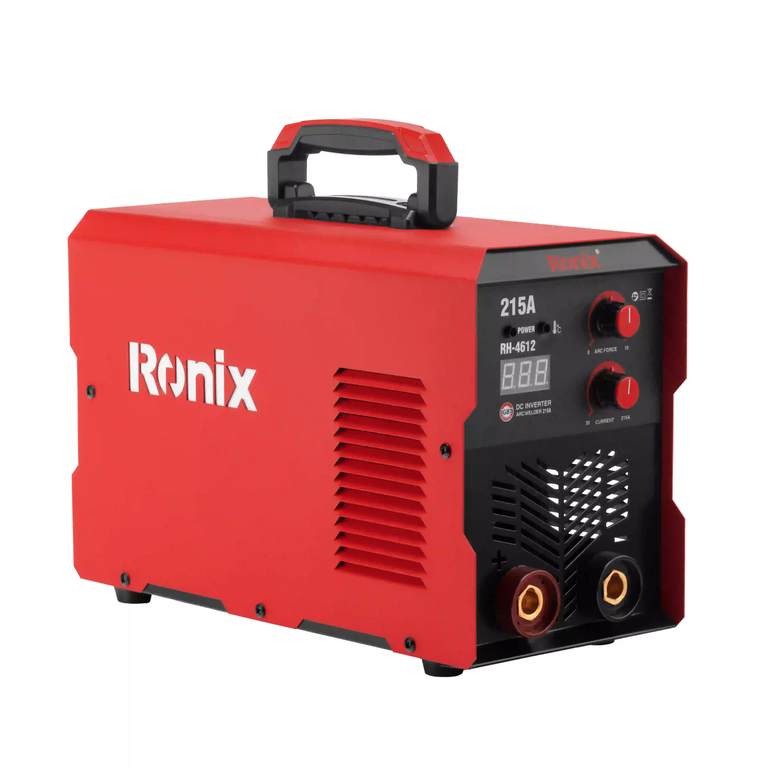

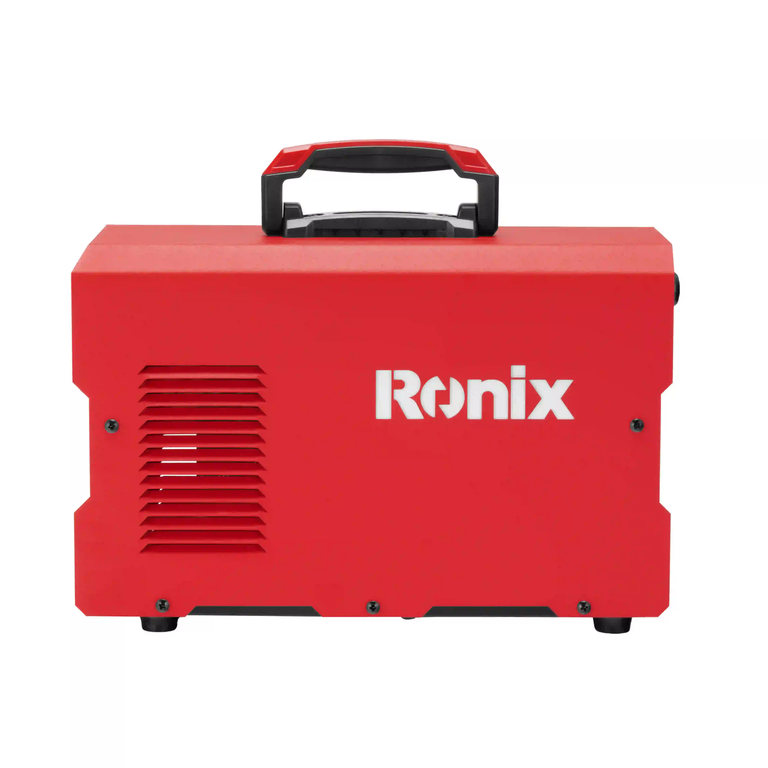

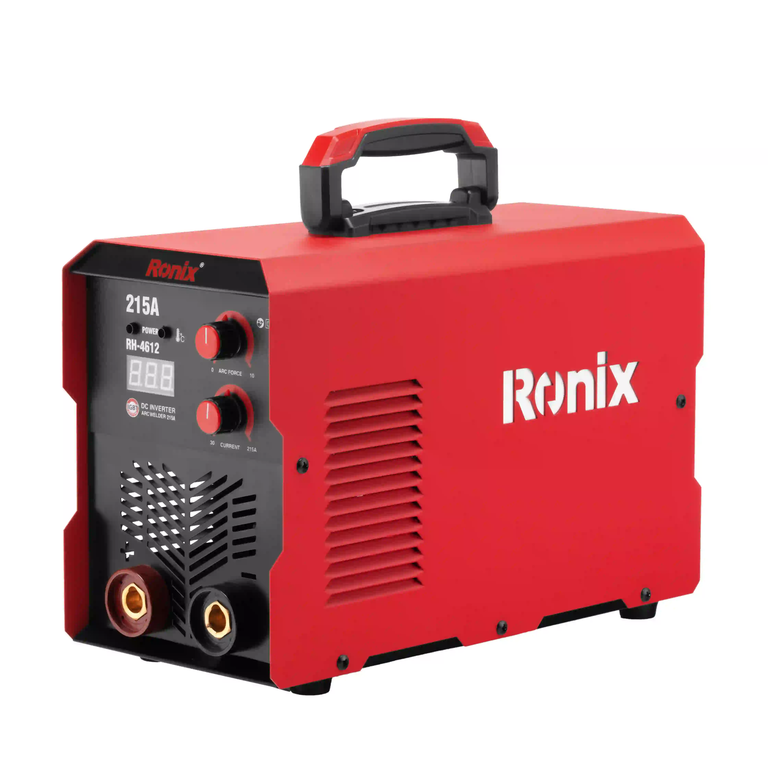

DC Arc Welding Inverter 215A
Model : RH-4612
: 0

Model : RH-4612 (NA)

DC Arc Welding Inverter 215A

Bulk Order
IGBT technology for better welding quality , greater welding penetration, reduced energy consumption and increased efficiency
Unbeatable automatic short circuit current protection, easy ignition, less spark, provides excellent arc strike performance at rust surface

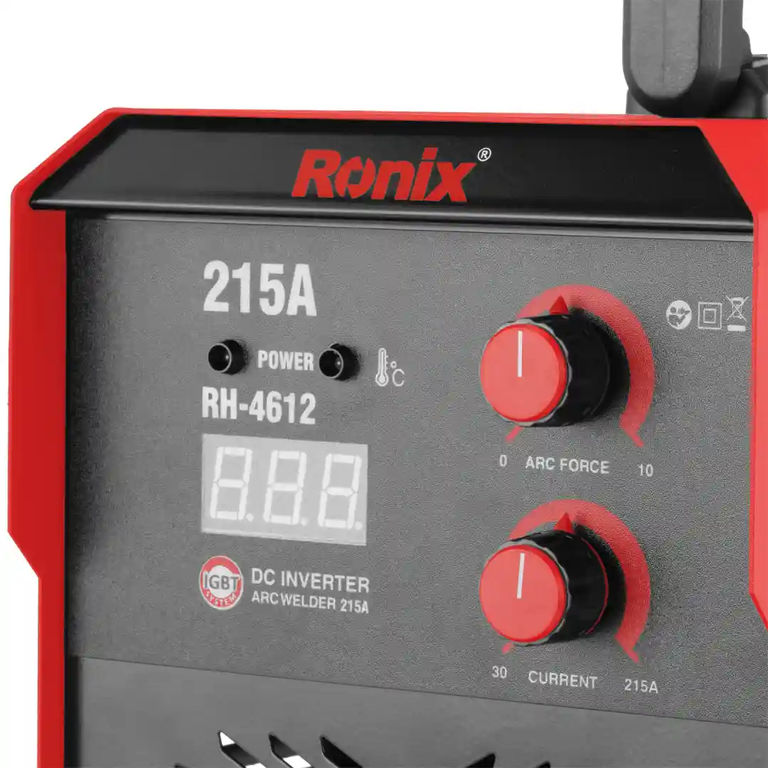

Digital display provides highly accurate welding
Run 5mm MMA electrode
Multi protection of over voltage, over heat, over current and over load protection
Hot start, anti-stick, less spark, reliable. Ideal welding equipment for entry-level welder.
Equip with 2 volumes ( Current , Arc force) for easy and better welding setting

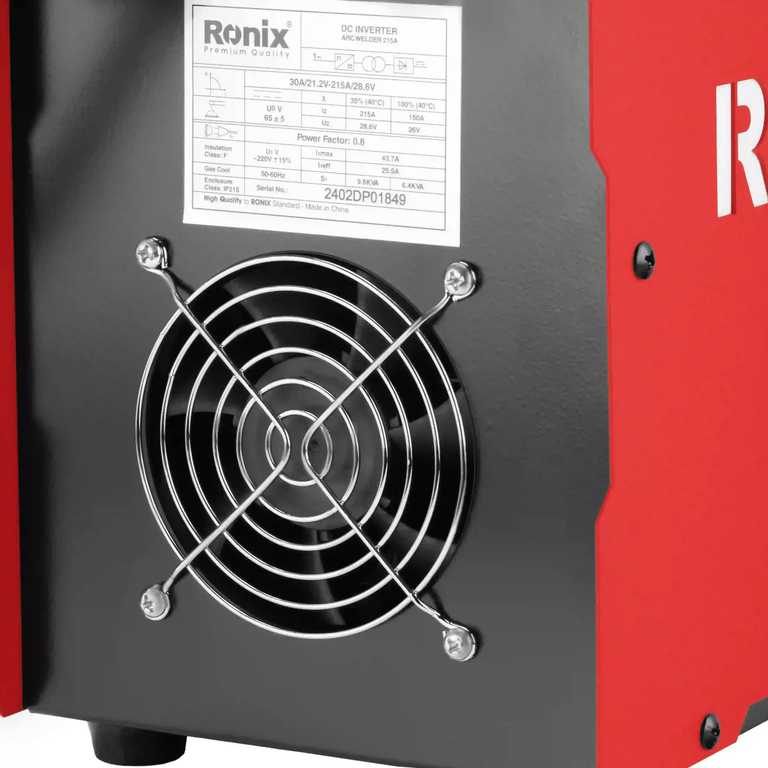

Professional cooling system in order to increase efficiency and continuance welding
Model RH-4612
Input voltage 220V± 15%
No-Load voltage 65V
Frequency 50-60Hz
Output Current range 30-215A
Rated Output Voltage 28.6V
Max Input Power Capacity 9.6KVA
Max Input Current 43.7A
Power Factor 0.8
Duty-cycle (25°C) 100%
Insulation Class F
Protection IP21s
Electrode Diameter 1.6to 5.0 mm
Weight 5kg
packaging Color box

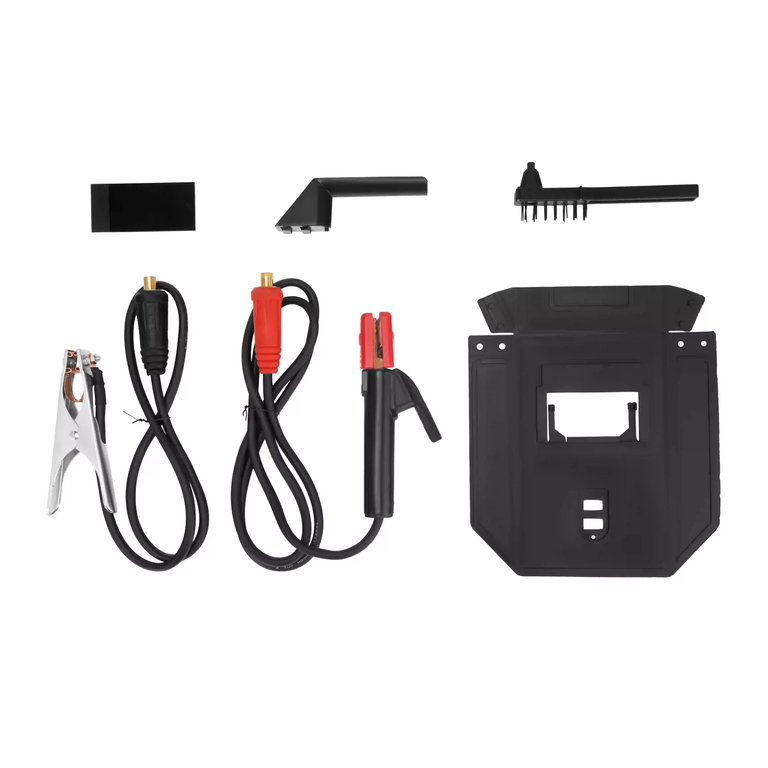

Accessories "1- Earth clamp Cable length: 1.2m DKJ 35-50 TUV H01N2-D 1×25mm² 2-Cable Length: 1.8m DKJ 35-50 TUV H01N2-D 1×25mm² 3- Brush Hammer 4- Welding Helmet"
