Digital Sound Level Meter
Model : RH-9604
: 0
Digital Sound Level Meter
Ronix-product-detail-10519-1
Sound level meter 178g
Sound level meter 178g
Sound level meter 178g
Digital Sound Level Meter
Sound level meter 178g
Sound level meter 178g
Sound level meter 178g

Model : RH-9604 (NA)

Digital Sound Level Meter

Barcode For Color Box : 6976100512368

Barcode For Inner Carton : 6976100512375

Bulk Order
  • Large range sound detection from 30 dB to 130 dB
  • Polarized capacitance microphone; Dynamic characteristics: Fast 125 ms, Slow 1 second
  • Equipped with a sponge ball to filter out unwanted signals
  • The device features a low battery indicator
  • Large easy-to-read LCD with backlight; Data Hold Function; MAX/MIN Function
  • USB real-time data uploading functions
  • Compact and lightweight, convenient to carry
  • Ideal for monitoring noise levels in hotels, conference halls, theaters, hospitals, and other noise-sensitive environments

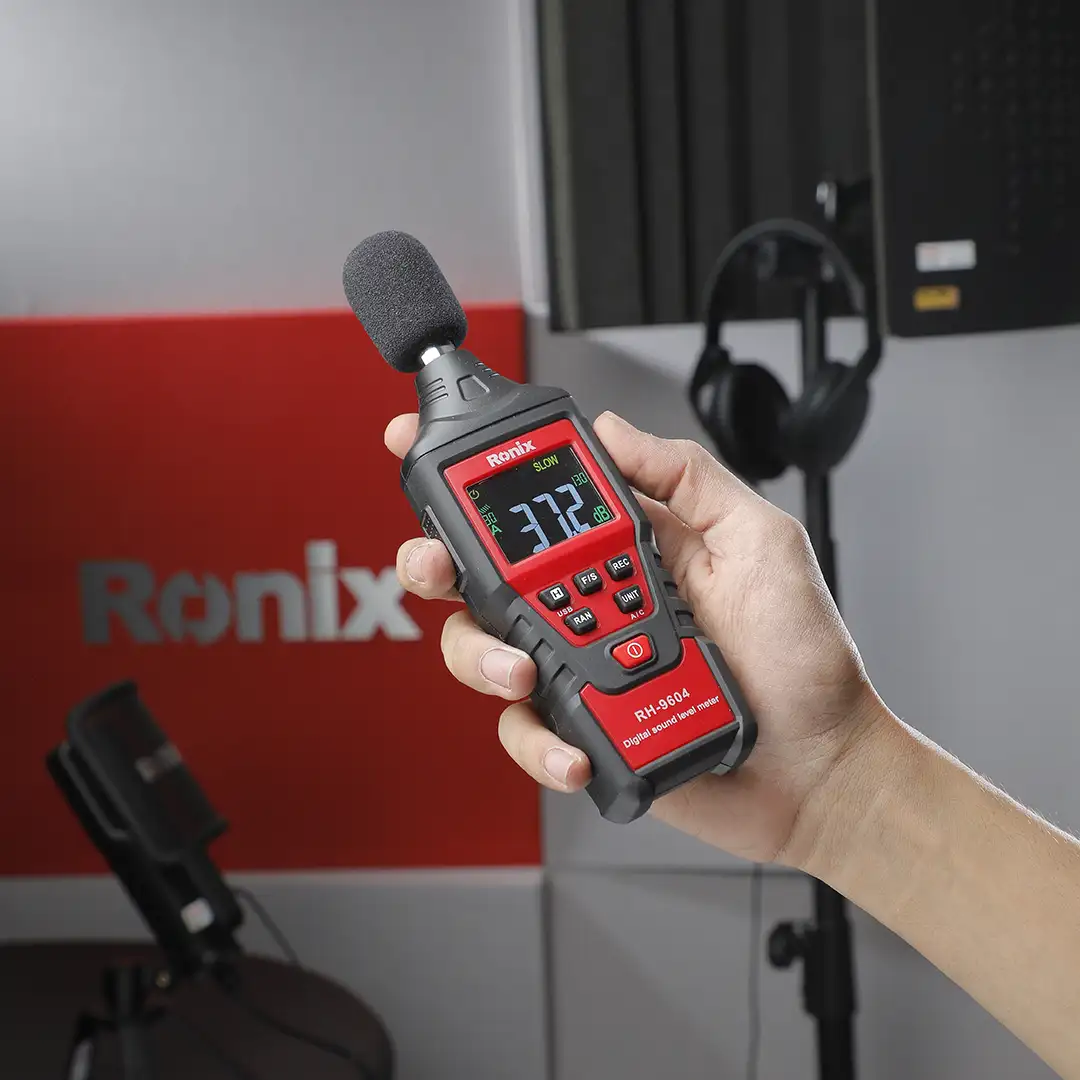

The Ronix RH-9604 Digital Sound Level Meter is designed to accurately monitor and record noise levels in hotels, conference halls, theaters, hospitals, and other noise-sensitive environments. With a measuring range of 30dB to 130dB and an accuracy of ±1.5dB, this device offers professional versatility with A and C frequency weighting and adjustable dynamic characteristics (Fast/Slow response). The device is also equipped with a Micro USB port for real-time data uploading and a large backlit LCD.
Model RH-9604
Sound pressure accuracy ±1.5dB(94dB at 1KHz)
±5dB(94dB at 8KHz)
frequency response 30Hz - 8KHz
dynamic range 50 db
measuring range 30 - 130 dBA
30 - 130 dBC
measuring levels 2
Weighting properties A/C
Dynamic characteristics FAST 125ms, SLOW 1sec
Microphone Polarized capacitance microphone
Microphone Diameter 38.3 × 13 mm mm
Sponge ball Material EPE
Power Source 3*1.5V AAA batteries
Low battery indication YES
Display Type LCD
Auto Power Off After 600 Sec
body Material ABS+TPE
Body Size 189 × 60 × 33 mm
USB Port type Micro USB
USB Data transfer YES
Weight 178 g
Supplied In color Box
Includes batteries , Cloth bag , user manual , disk , USB cable
Downloads & Resources
Ronix-product-detail-10521-1
More information is provided below for the Ronix RH-9604!
The RH-9604 has a robust and ergonomic body made of ABS+TPE material. Its compact dimensions (189 × 60 × 33 mm) and light weight of 178g make it a highly portable device. The device is equipped with a large, easy-to-read backlit LCD, a Data Hold function, and MAX/MIN recording. To ensure signal purity, it includes an EPE sponge ball (windscreen) to filter out unwanted wind interference and protect the polarized capacitance microphone.
The RH-9604 has a highly sensitive polarized capacitance microphone and offers dual dynamic characteristics: Fast (125ms) and Slow (1sec). For advanced data analysis, the device supports real-time data transfer to a PC via its Micro USB port. The unit is powered by three 1.5V AAA batteries and includes an Auto Power Off function that activates after 600 seconds of inactivity to conserve battery life. A low battery indicator is also provided to ensure continuous and reliable use during extended monitoring sessions.
This professional acoustic tool provides a wide sound detection range from 30dB to 130dB (across both dBA and dBC weightings) with a 50dB dynamic range. It covers a broad frequency response from 30Hz to 8kHz. Accuracy is maintained at ±1.5dB (at 1kHz) and ±5dB (at 8kHz), making it ideal for monitoring.
Packaged in a Ronix Color Box, the RH-9604 comes complete with three 1.5V AAA batteries, a cloth bag, a USB cable, a disk, and a user manual.
