RH-4025

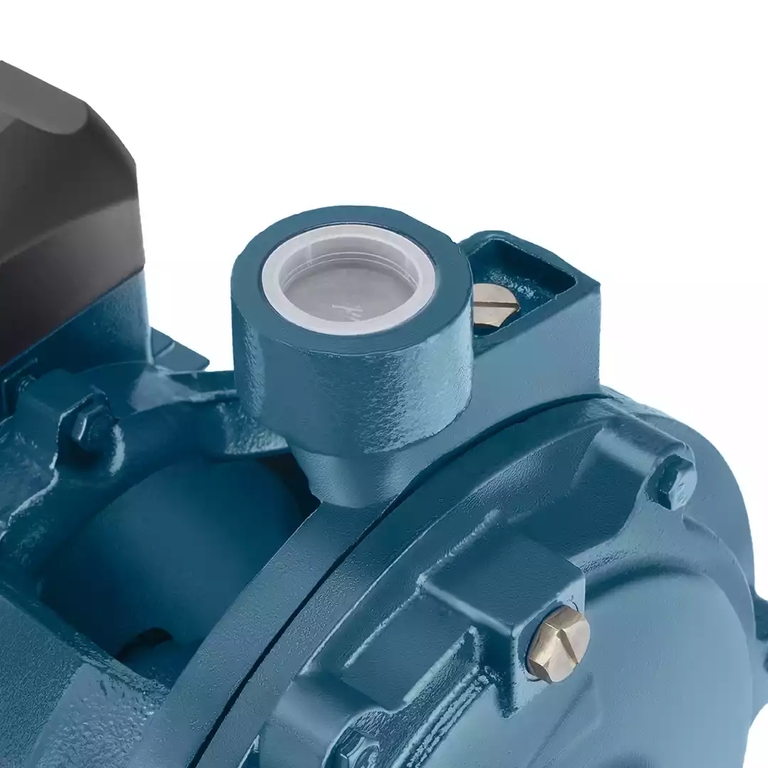

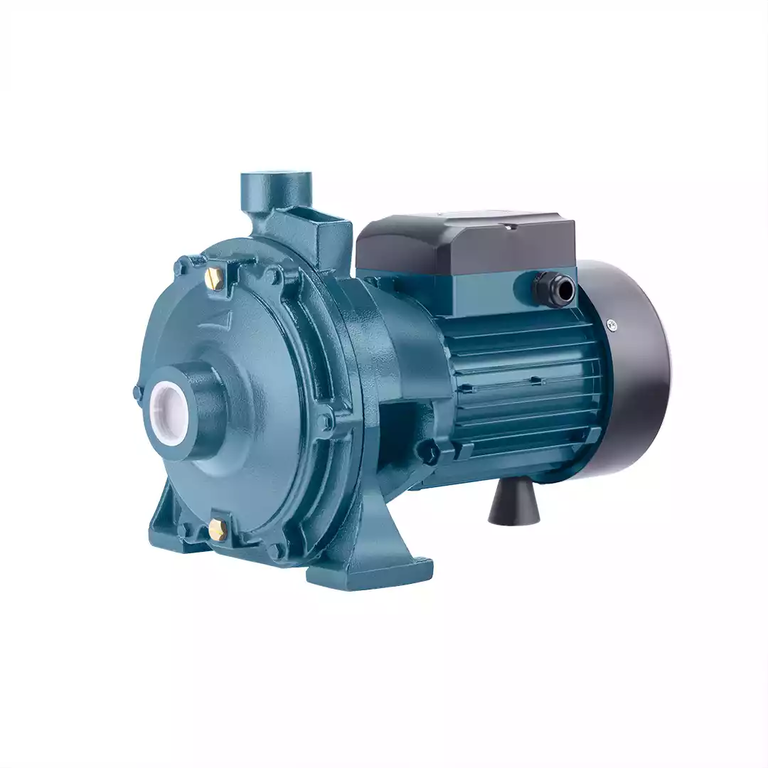

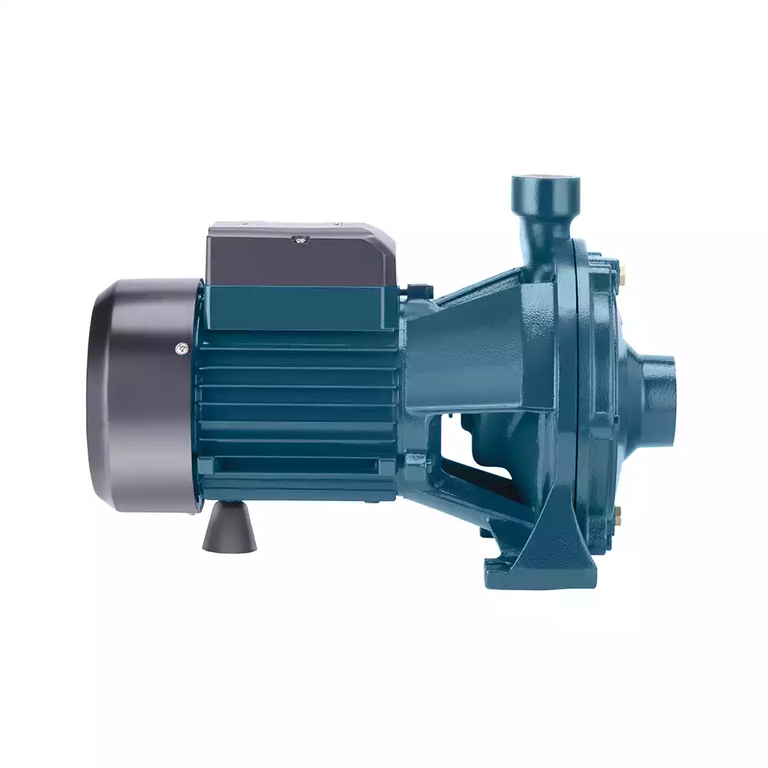

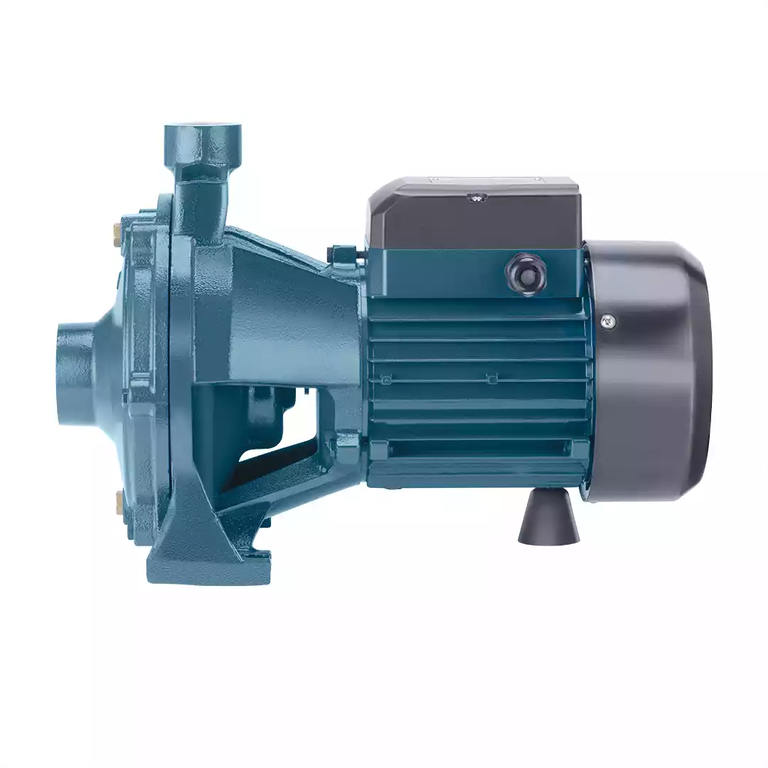

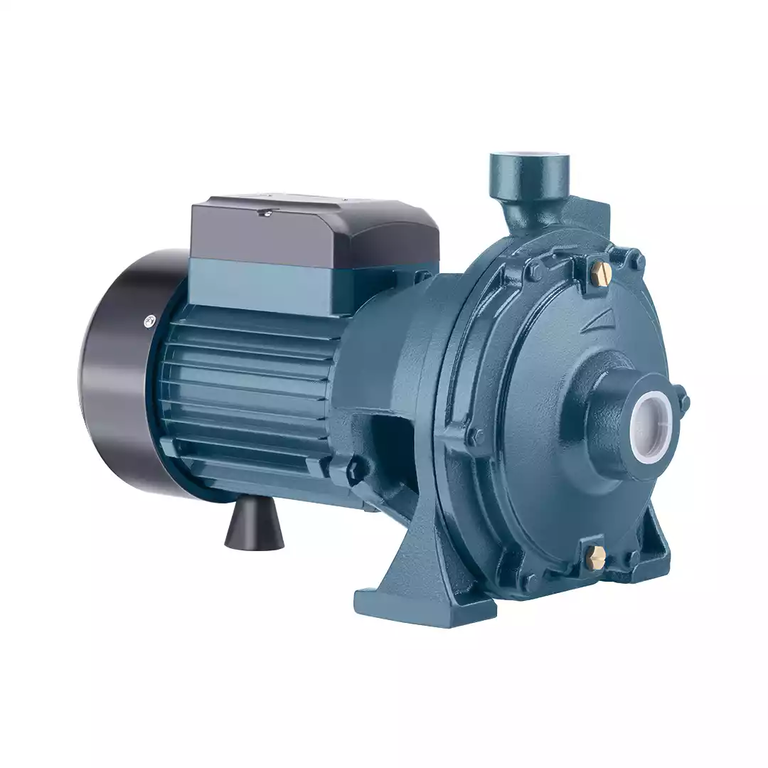

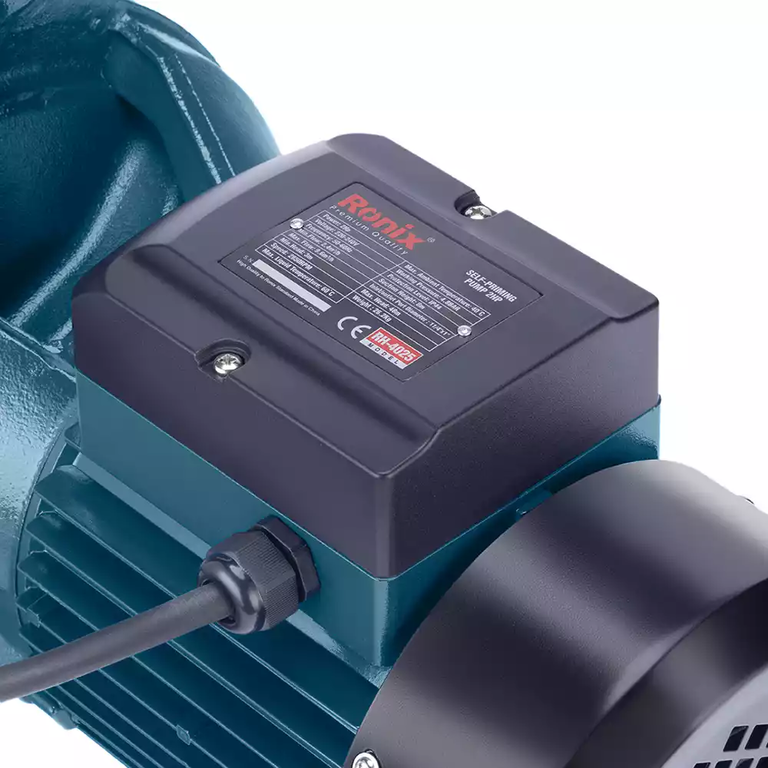

Self priming pump 2HP

Write a review

Compare

Hot Sales

Detailed Description

Features

pump with compact dimensions and capable of generating high heads
Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
Properly in domestic, small industrial,irrigation of gardens and allotments usage
Provides with Thermal protector and insulation Class B to ensure motor long life
ability for suction up to 8m
More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing

Specifications

Model

RH-4025

Power

2Hp

Voltage

220V

Frequency

50Hz

Min.Flow

2.4m³/h

Max. Flow

9.6m³/h

Min.Head

Max. head

48m

Inlet/outlet port diameter

11/4X1In

Suction heigh

Speed

2850RPM

Max. liquid temperature

℃60

Max. Ambient temperature

℃40

Working Pressure

4.8BAR

Protection level

IP44

Insulation Class

Pump housing material

CAST IRON

Motor housing material

ALUMINUM

Mechanical seal material

Ceramic/Graphite

Motor protection

WITH

Coil winding material

COPPER

Impeller material

BRASS

shaft material

316+45

Weight

26.2Kg

Supplied in

honeycomb carton

Self priming pump 2HP
