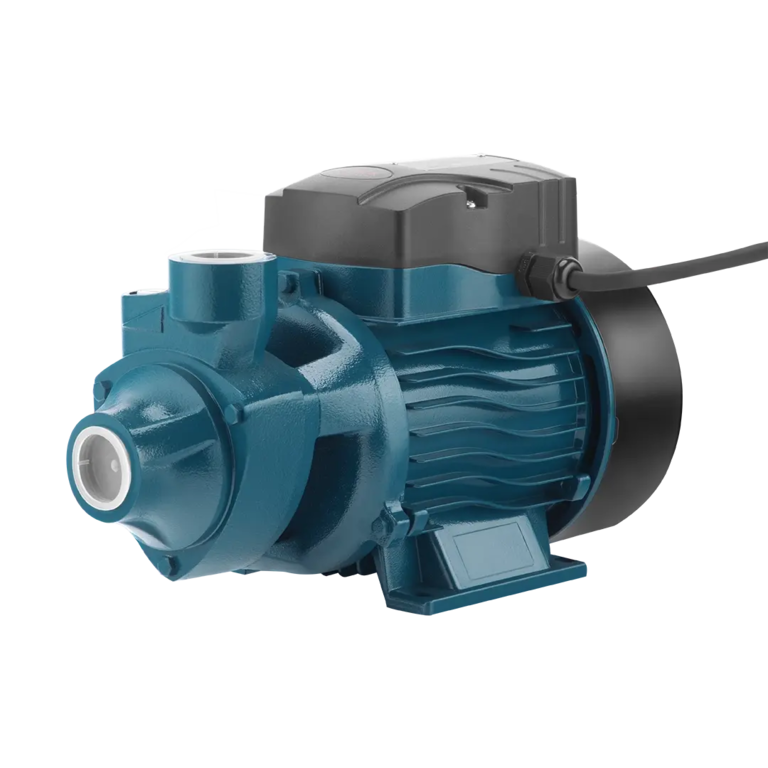

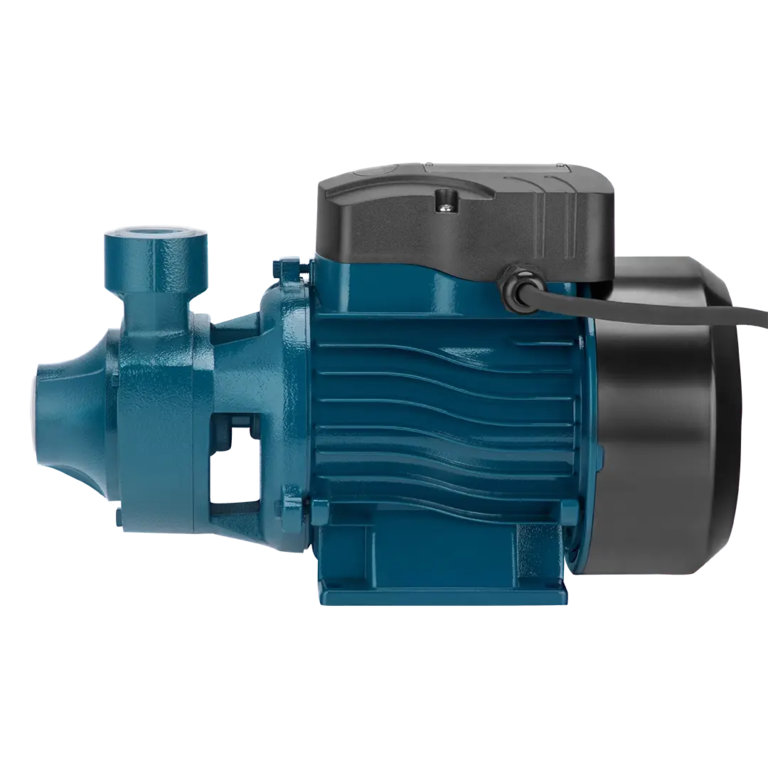

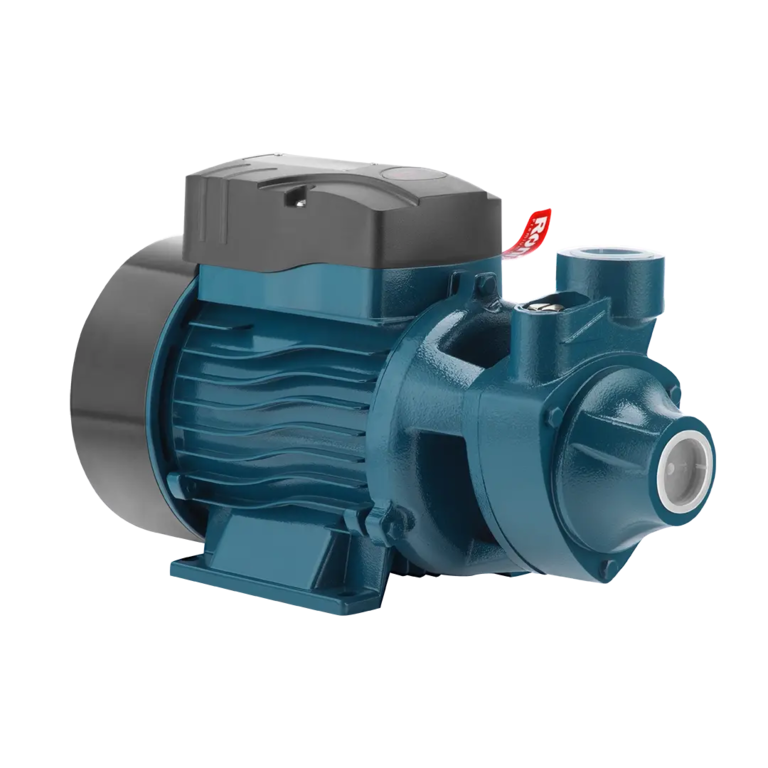

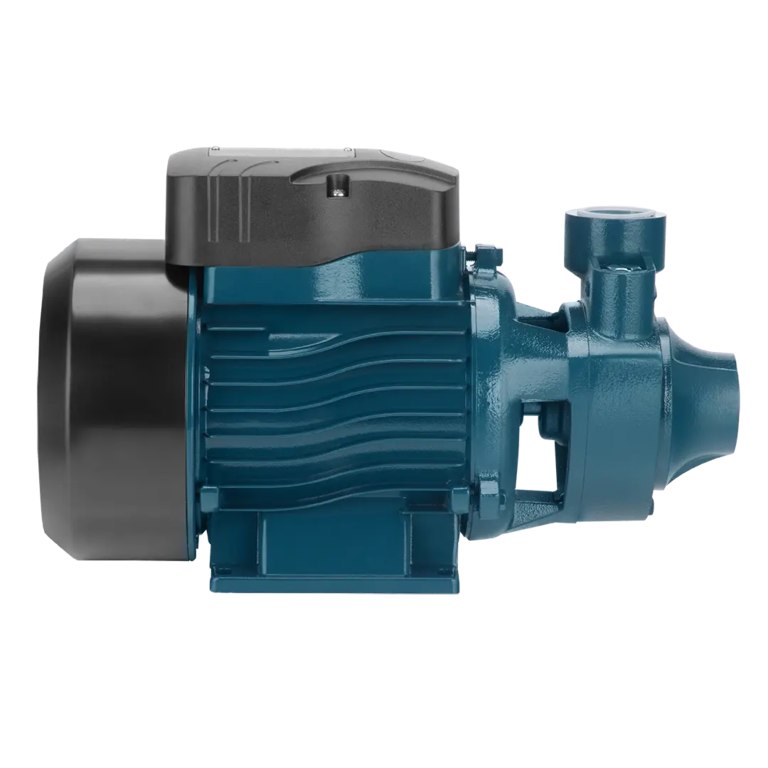

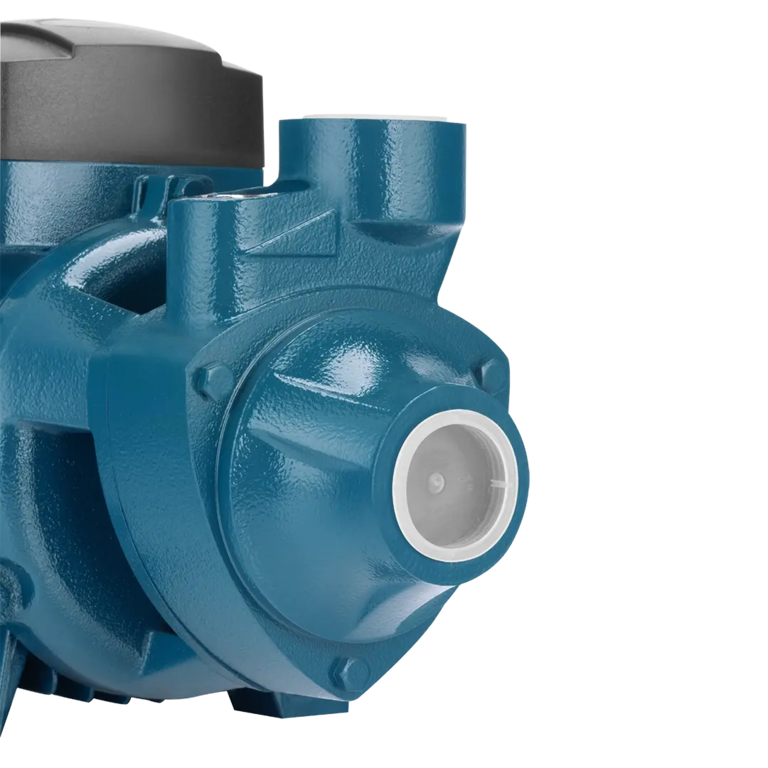

Self priming pump 1HP
Model : RH-4023
: 0
Self priming pump 1HP
Self priming pump 1HP

Model : RH-4023 (NA)

Self priming pump 1HP

Barcode : 6942318608902

Bulk Order
Peripheral pump with compact dimensions and capable of generating high heads
Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
Properly in domestic, small industrial,irrigation of gardens and allotments usage
Provides with Thermal protector and insulation Class B to ensure motor long life
ability for suction up to8 m
More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing
Model RH-4023
Power 1.0HP
Voltage 220-240V
Frequency 50-60Hz
Min.Flow 0.6m³/h
Max. Flow 2.88m³/h
Min.Head 3m
Max. head 65m

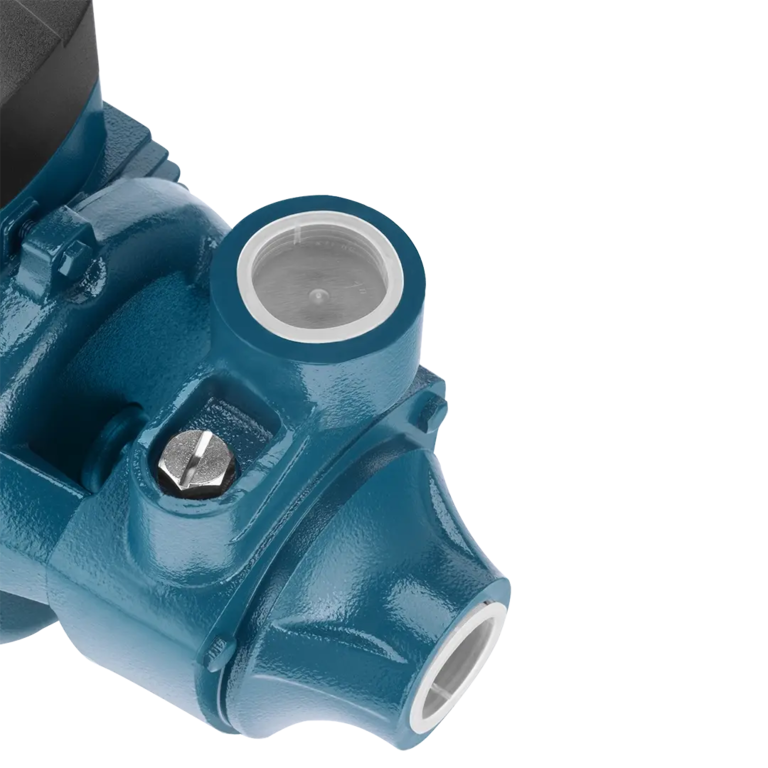

Inlet/outlet port diameter 1X1 In
Suction height 8m
Speed 2850RPM
Max. liquid temperature ℃60
Max. Ambient temperature ℃40
Working Pressure 6.5Bar
Protection level IP44
Insulation Class B
Pump housing material CAST IRON

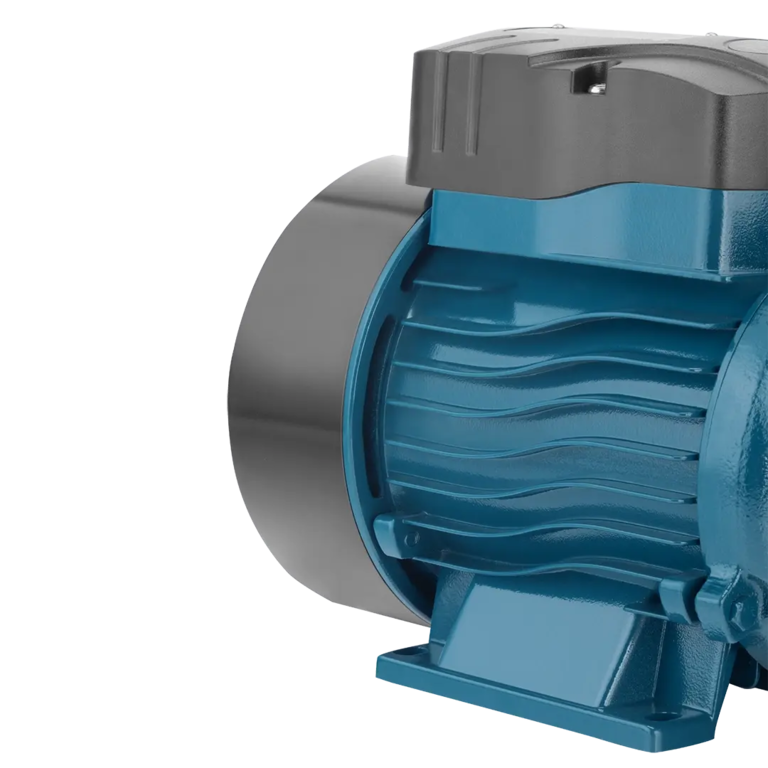

Motor housing material ALUMINUM
Mechanical seal material Ceramic/Graphite
Motor protection WITH
Coil winding material COPPER
Impeller material BRASS
shaft material 316+45
Weight 9.9Kg
Supplied In color box
