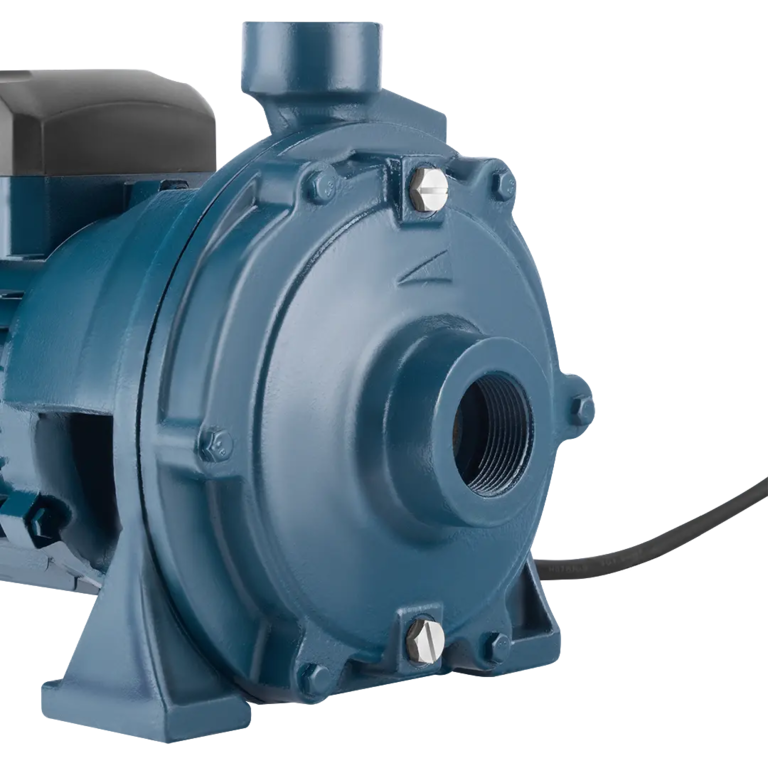

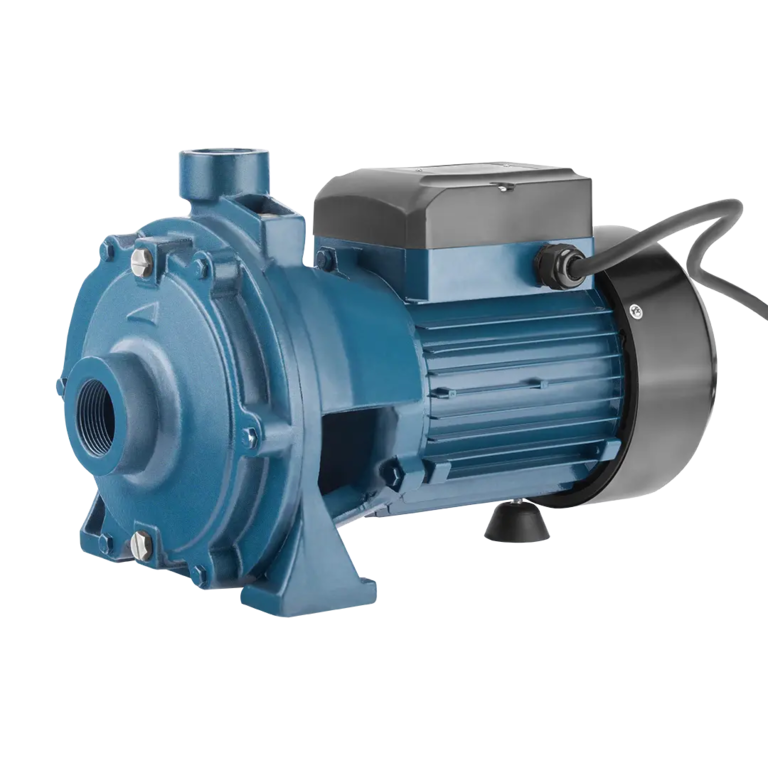

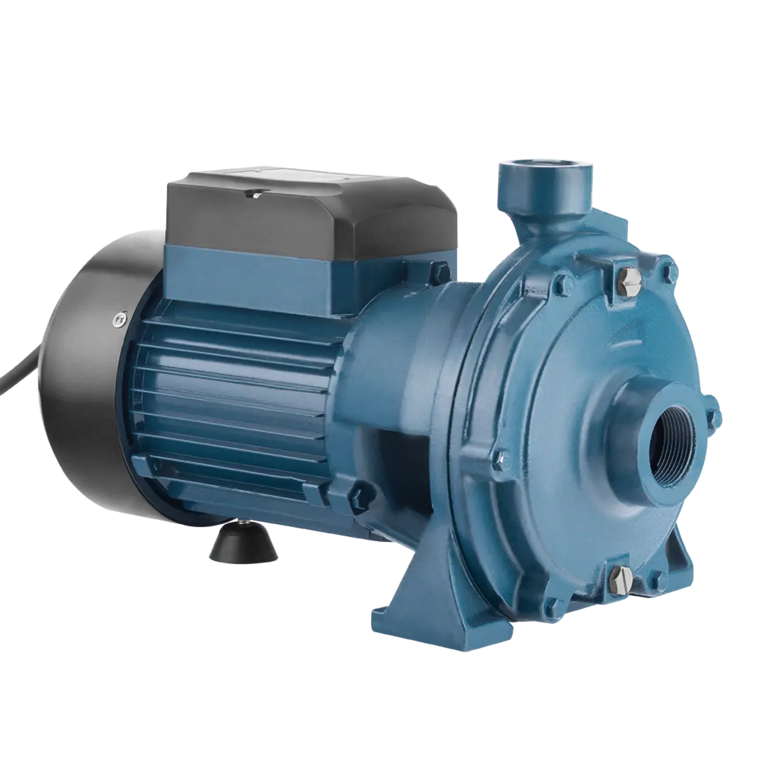

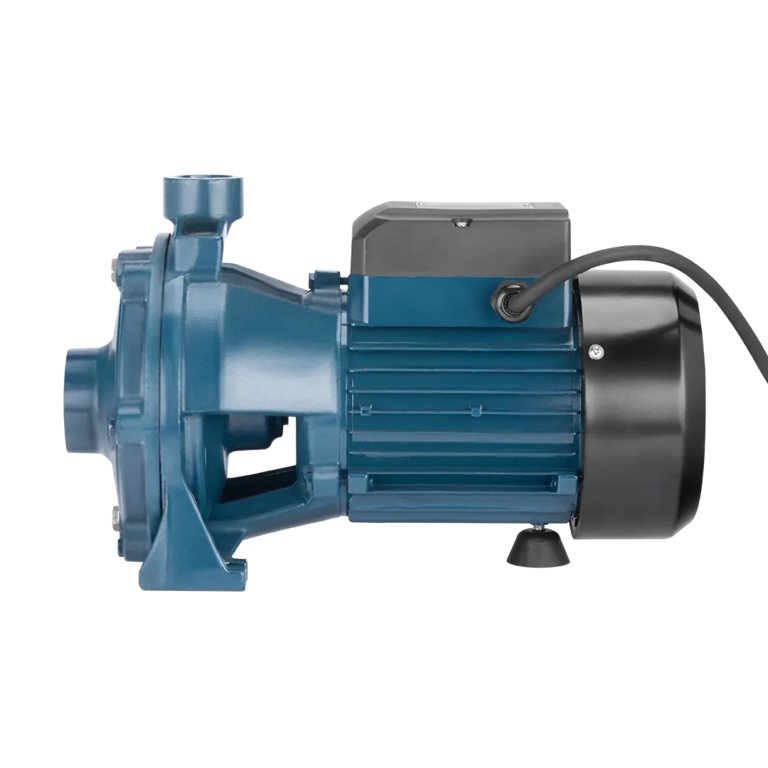

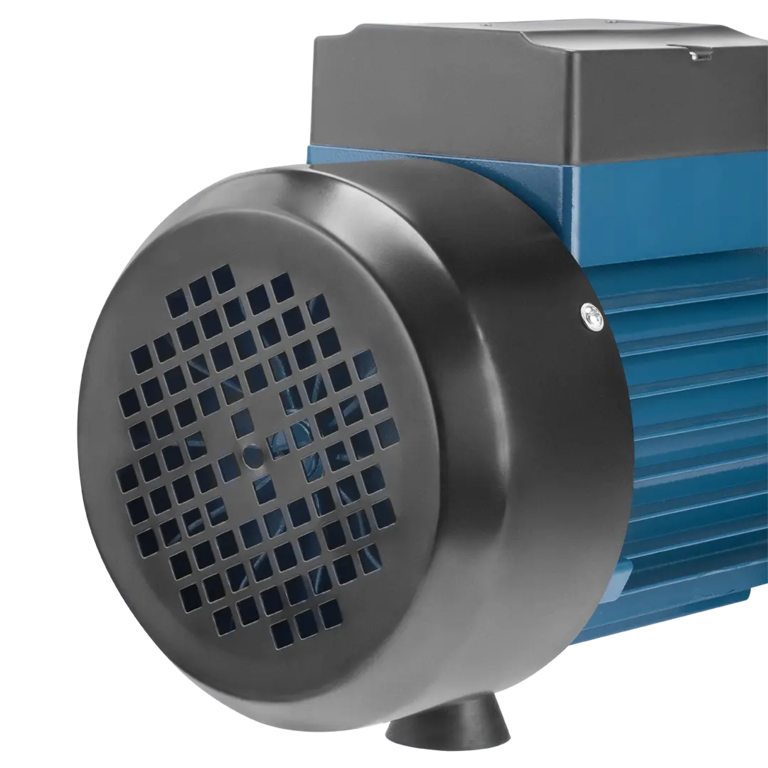

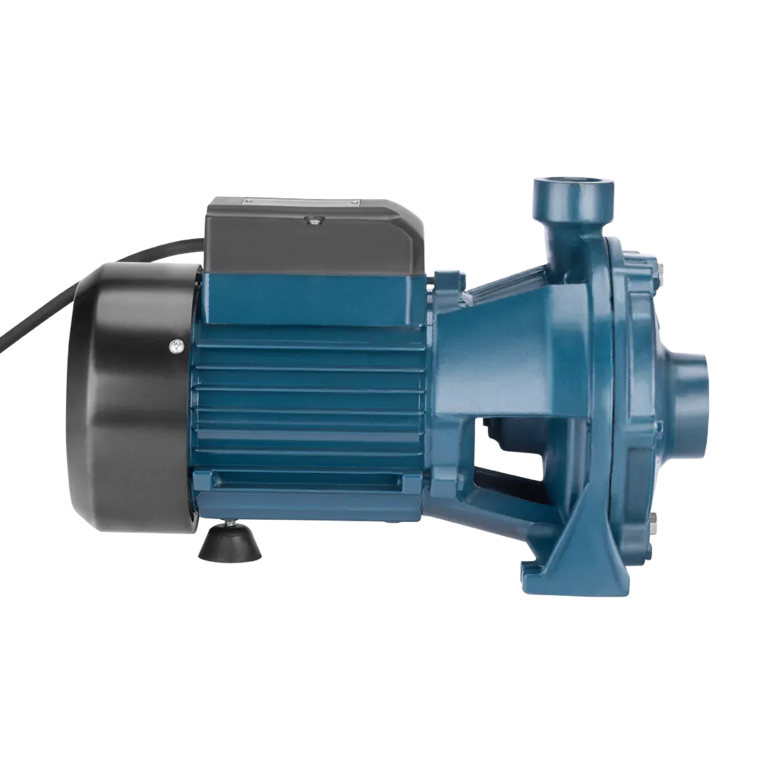

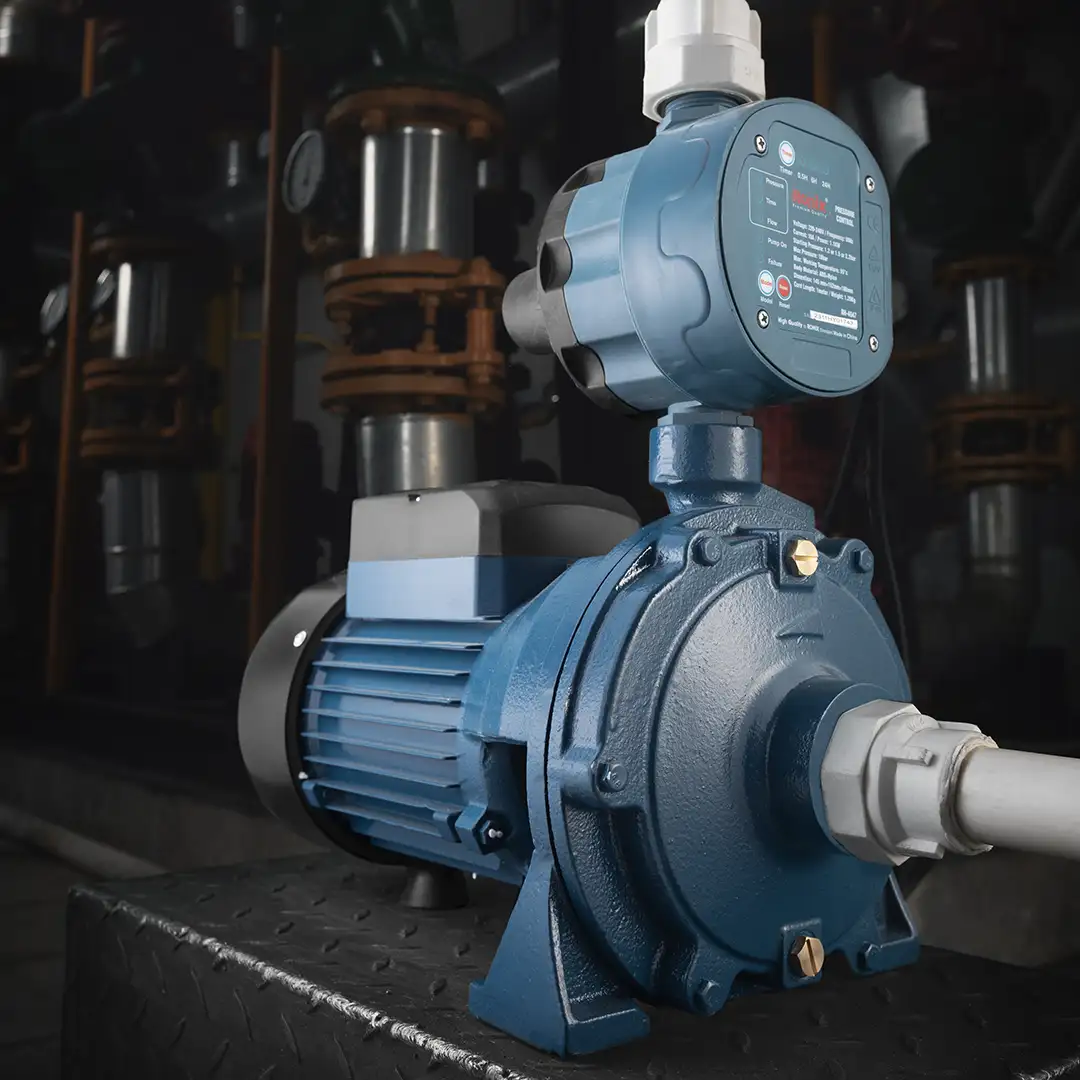

Self priming pump 1 5HP
Model : RH-4024
Rating: 0
Self priming pump 1 5HP-1
Self priming pump 1 5HP-1

Model : RH-4024 (NA)

Self priming pump 1 5HP

Bulk Order
 pump with compact dimensions and capable of generating high heads
Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
Properly in domestic, small industrial,irrigation of gardens and allotments usage
Provides with Thermal protector and insulation Class B to ensure motor long life
ability for suction up to 8 m
More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing
Model RH-4024
Power 1.5HP
Voltage 220V
Frequency 50Hz
Min.Flow 2.4m³/h
Max. Flow 9.3m³/h
Min.Head 3m
Max. head 45m
Inlet/outlet port diameter 11/4X1In
Suction heigh 8m
Speed 2850RPM
Max. liquid temperature ℃60
Max. Ambient temperature ℃40
Working Pressure 4.5BAR
Protection level IP44
Insulation Class B

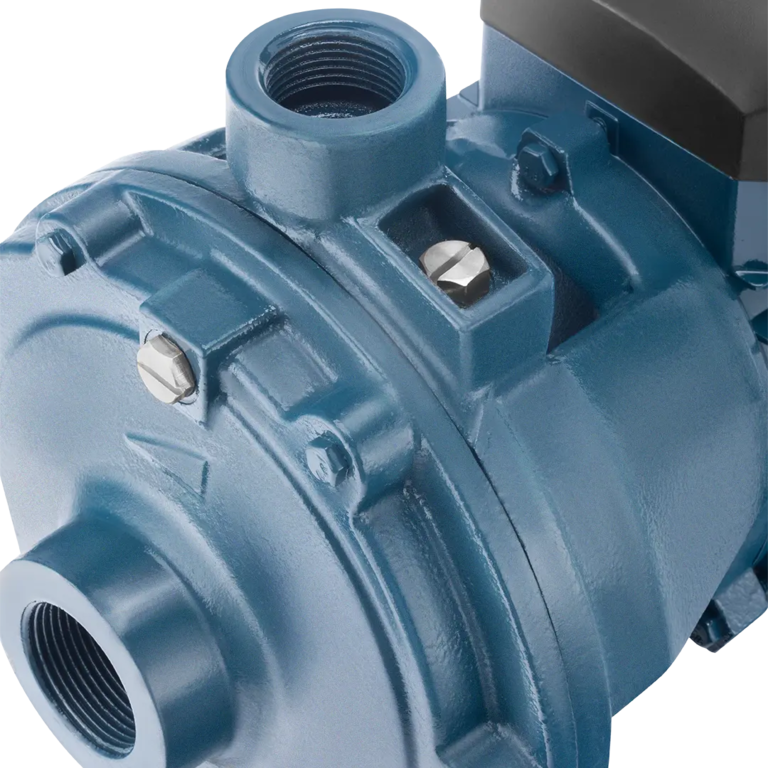

Pump housing material CAST IRON

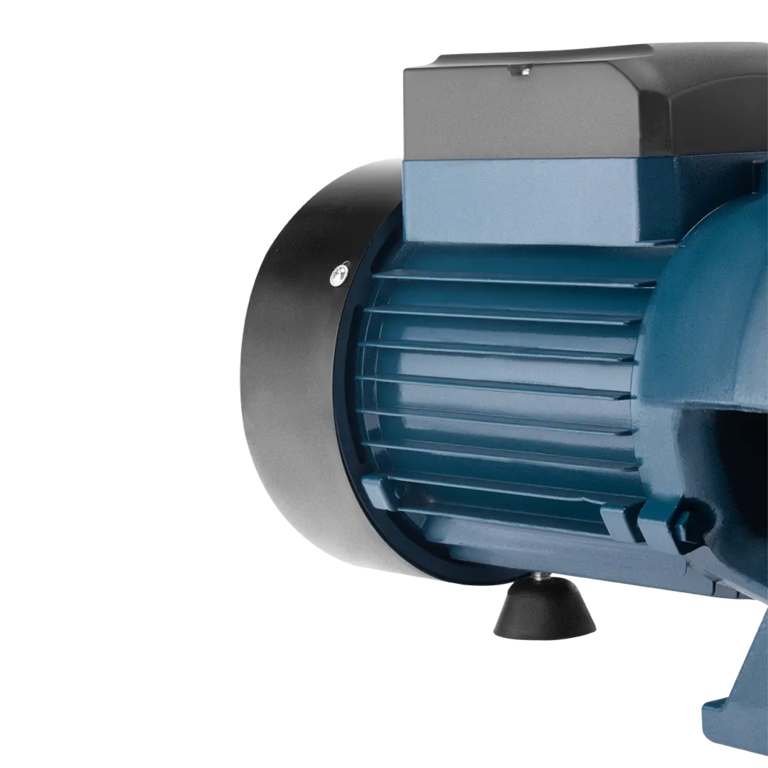

Motor housing material ALUMINUM
Mechanical seal material Ceramic/Graphite
Motor protection WITH
Coil winding material COPPER
shaft material 316+45
Impeller material BRASS
Weight 22.7Kg
Supplied in honeycomb carton
