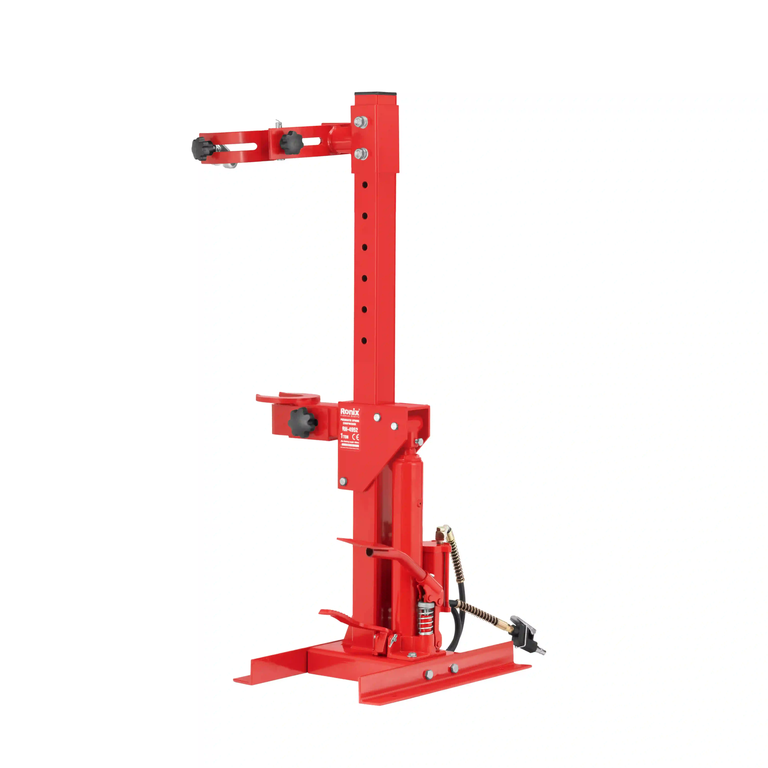

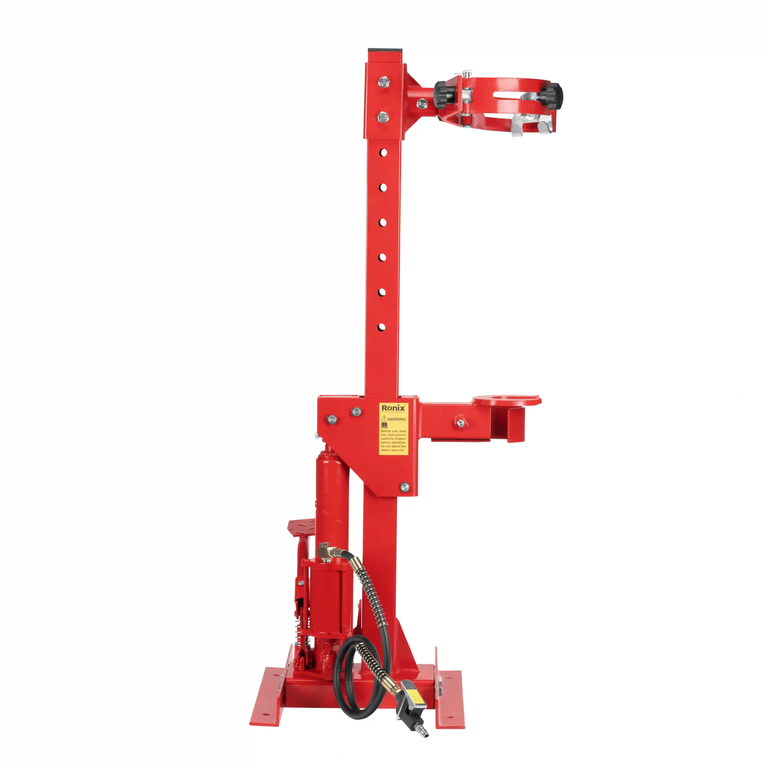

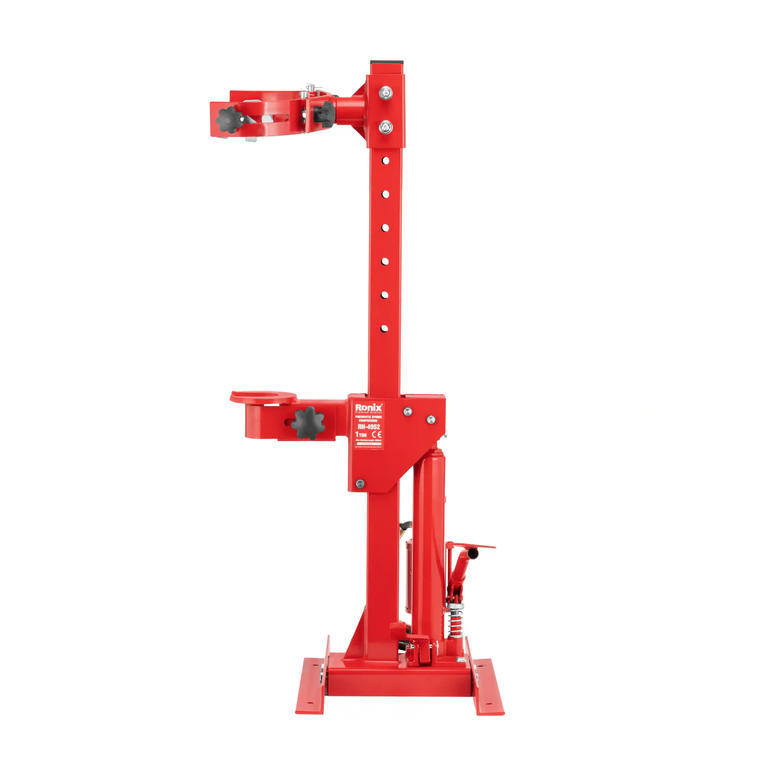

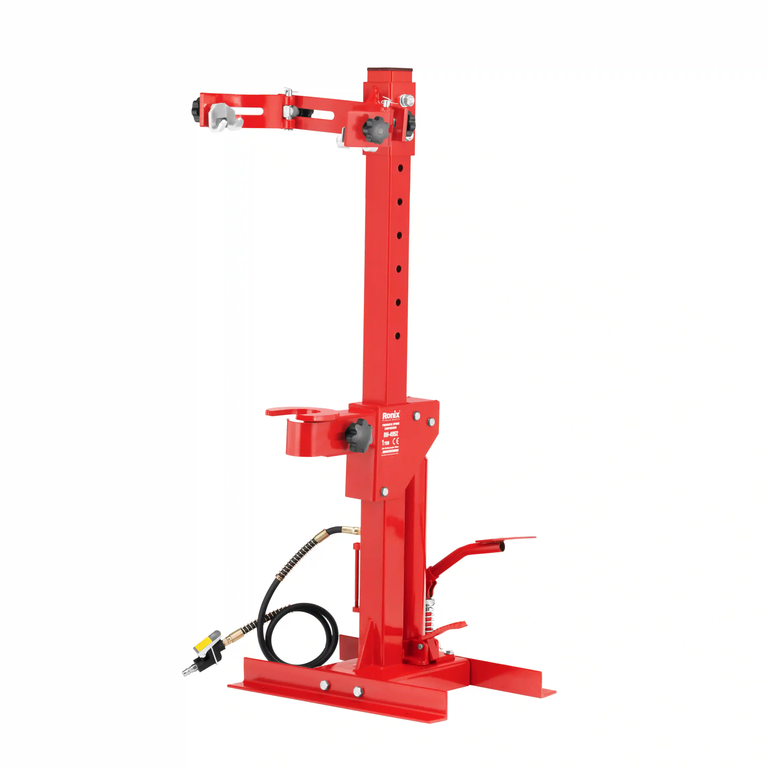

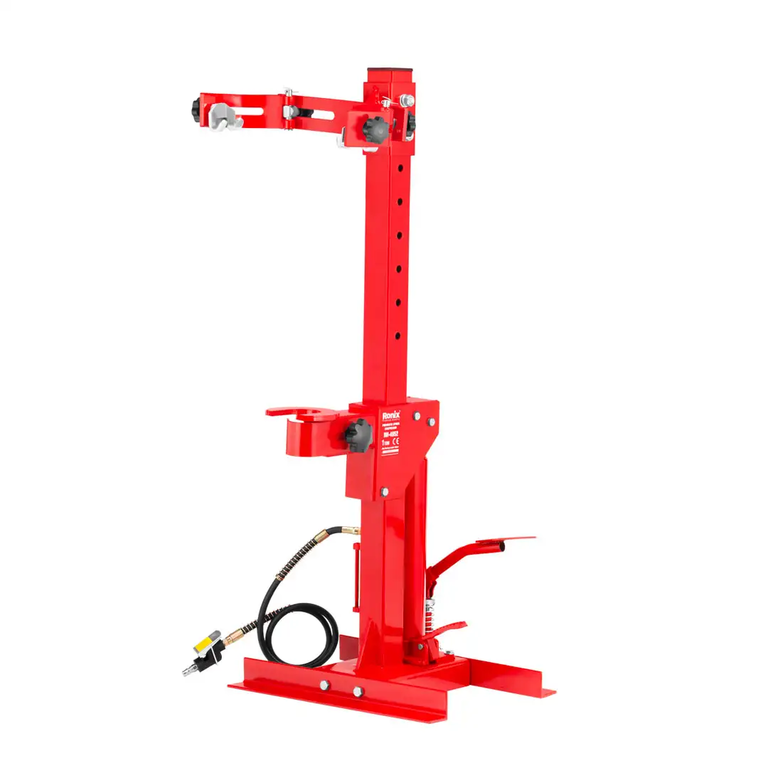

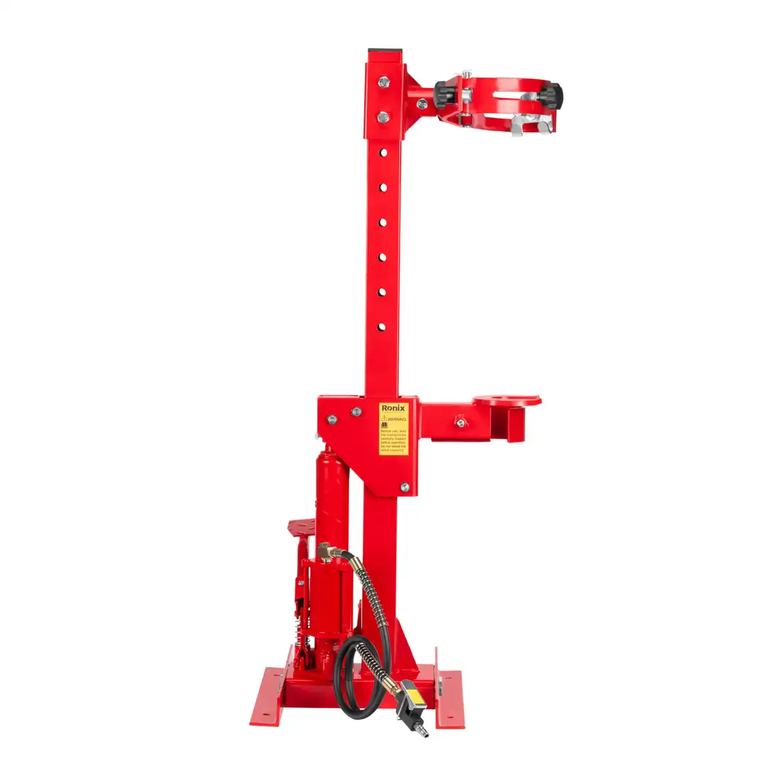

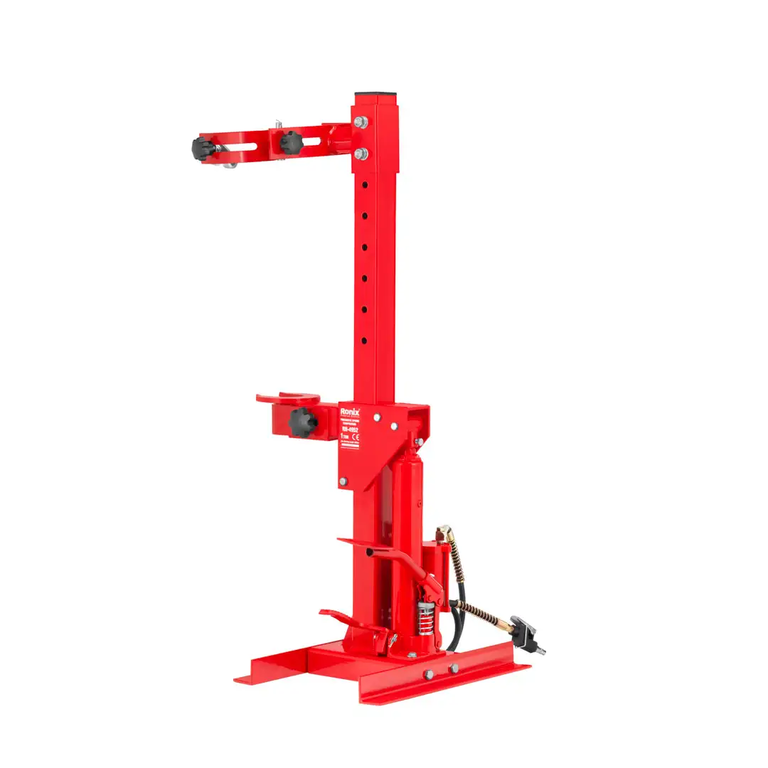

pneumatic spring compressor 1 T
Model : RH-4952
: 0
pneumatic spring compressor 1 T
pneumatic spring compressor 1 T

similar model

RH-4952 RH-4953

Model : RH-4952 (NA)

pneumatic spring compressor 1 T

Bulk Order

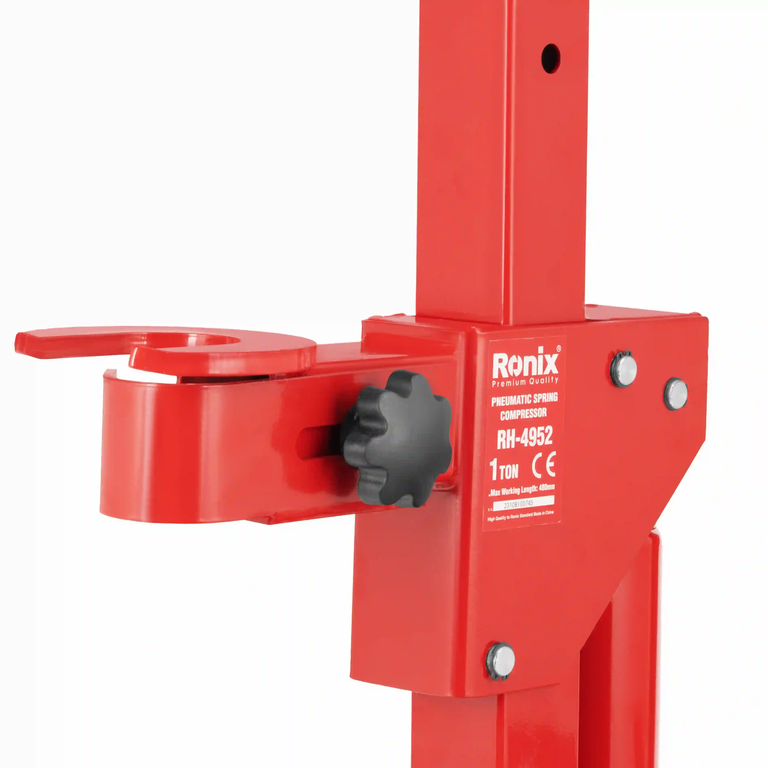

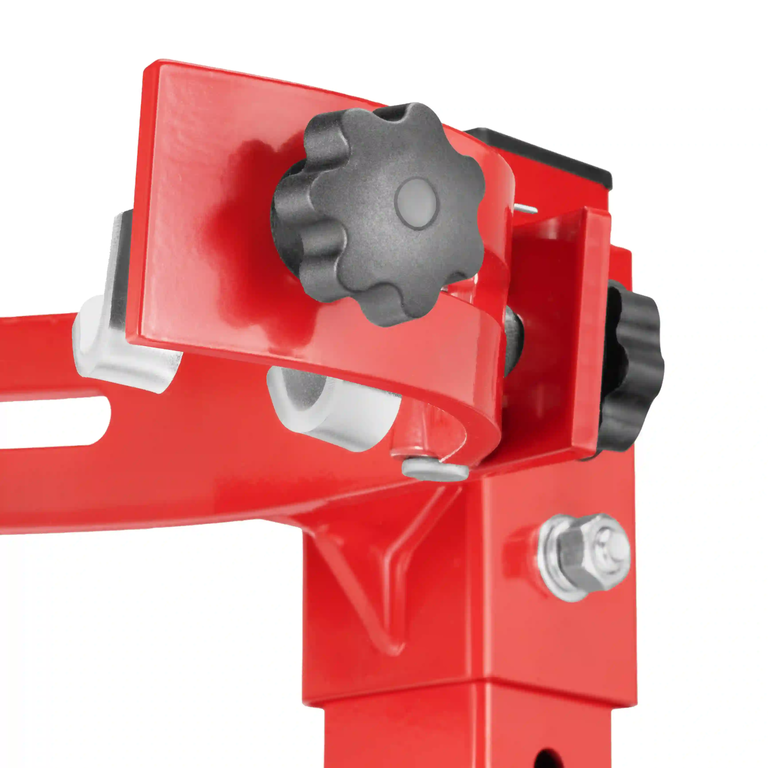

the capacity 1000 kg( 1ton); The lifting height is 320 mm, and its max support bar shaft open can be 110 degree 410 mm .There are many small holes on the column by which the compressor can be flexibly adjusted for a wide range of applications to suit the shock absorber springs of different models.
Suitable for the disassembly and assembly of strut type shock absorbing springs for cars, off-road vehicles, vans, pickup trucks and other vehicles.

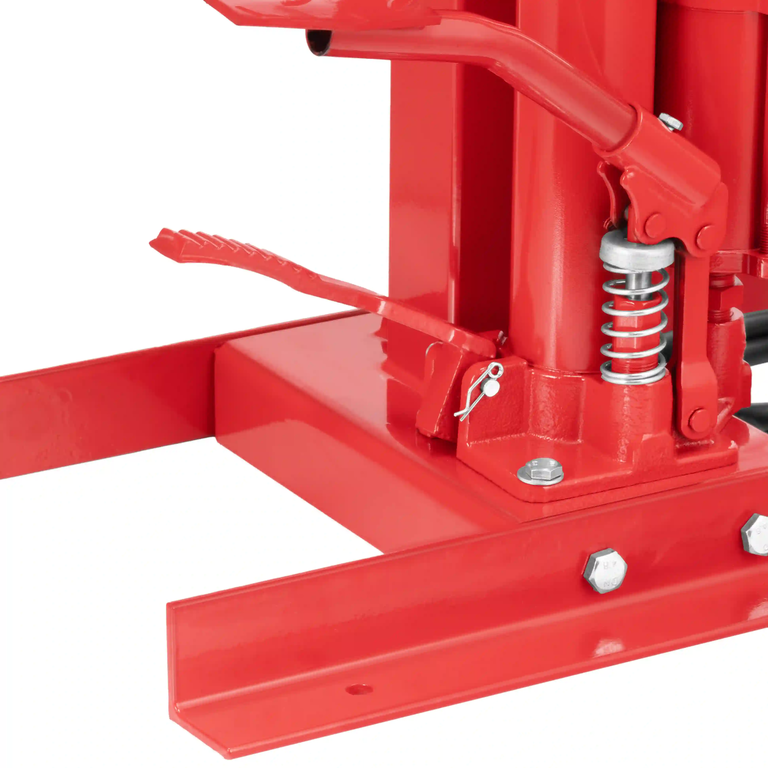

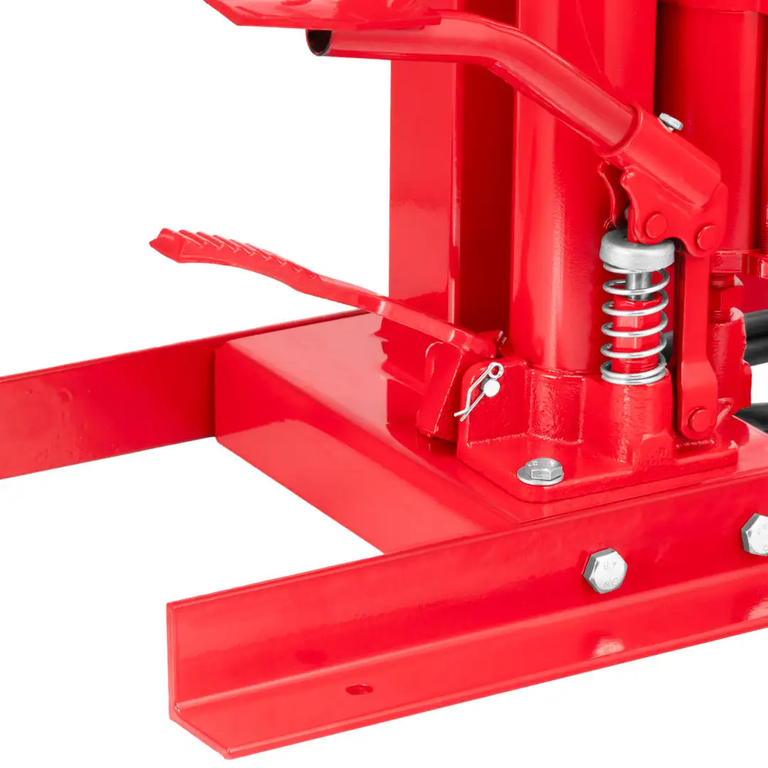

In this type of spring collectors, after the device compresses the spring, the amount of compression can be reduced by using the existing pedal.
Load Capacity 1Ton (1000 kg)
Material Iron,45#steel,Q235
spring size 210-570mm
Max working length 480mm
stroke 320mm
adjustment height level No
Net Weight 34Kg
Gross weight 38Kg

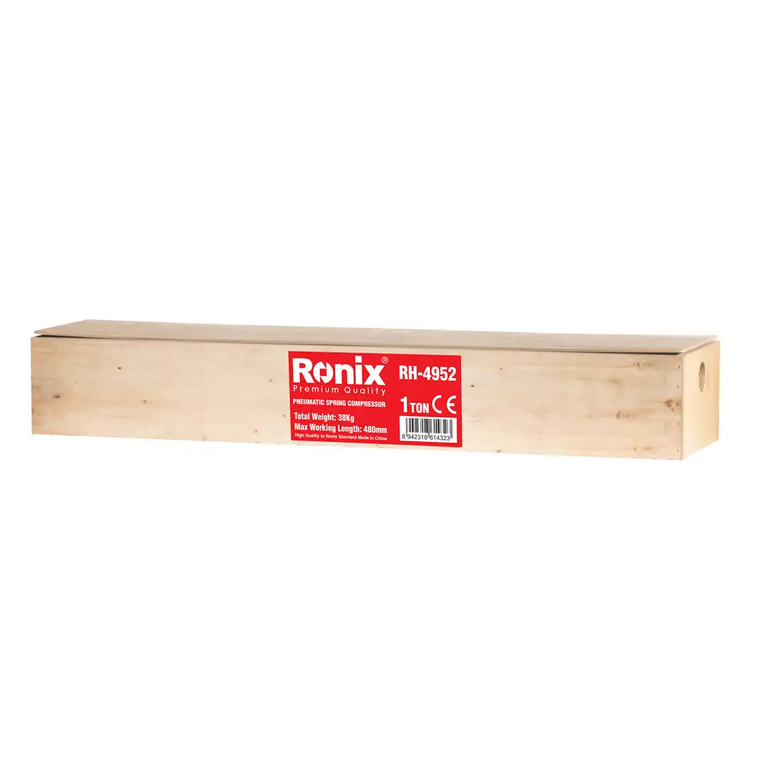

Supplied in Wooden case
