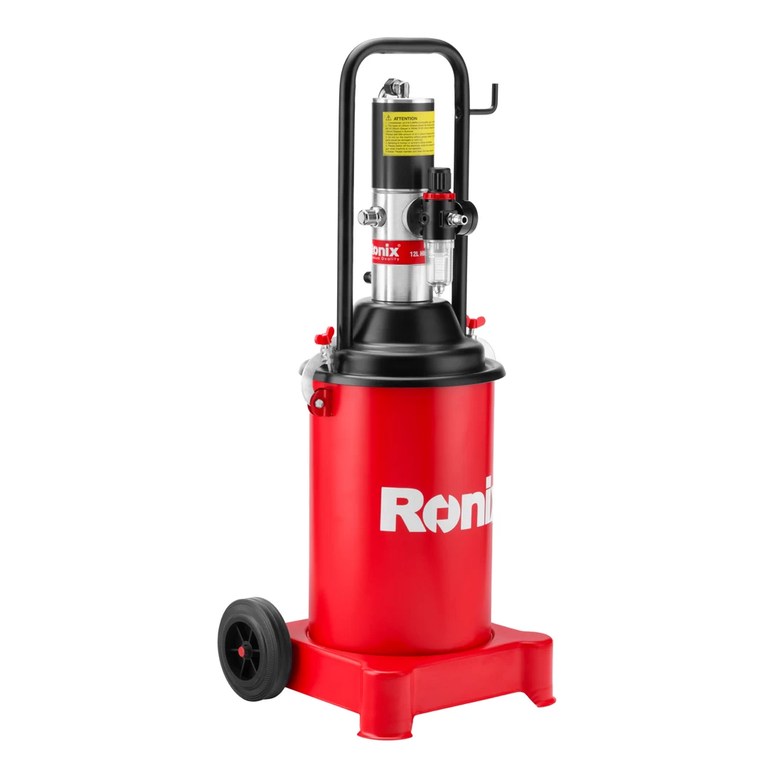

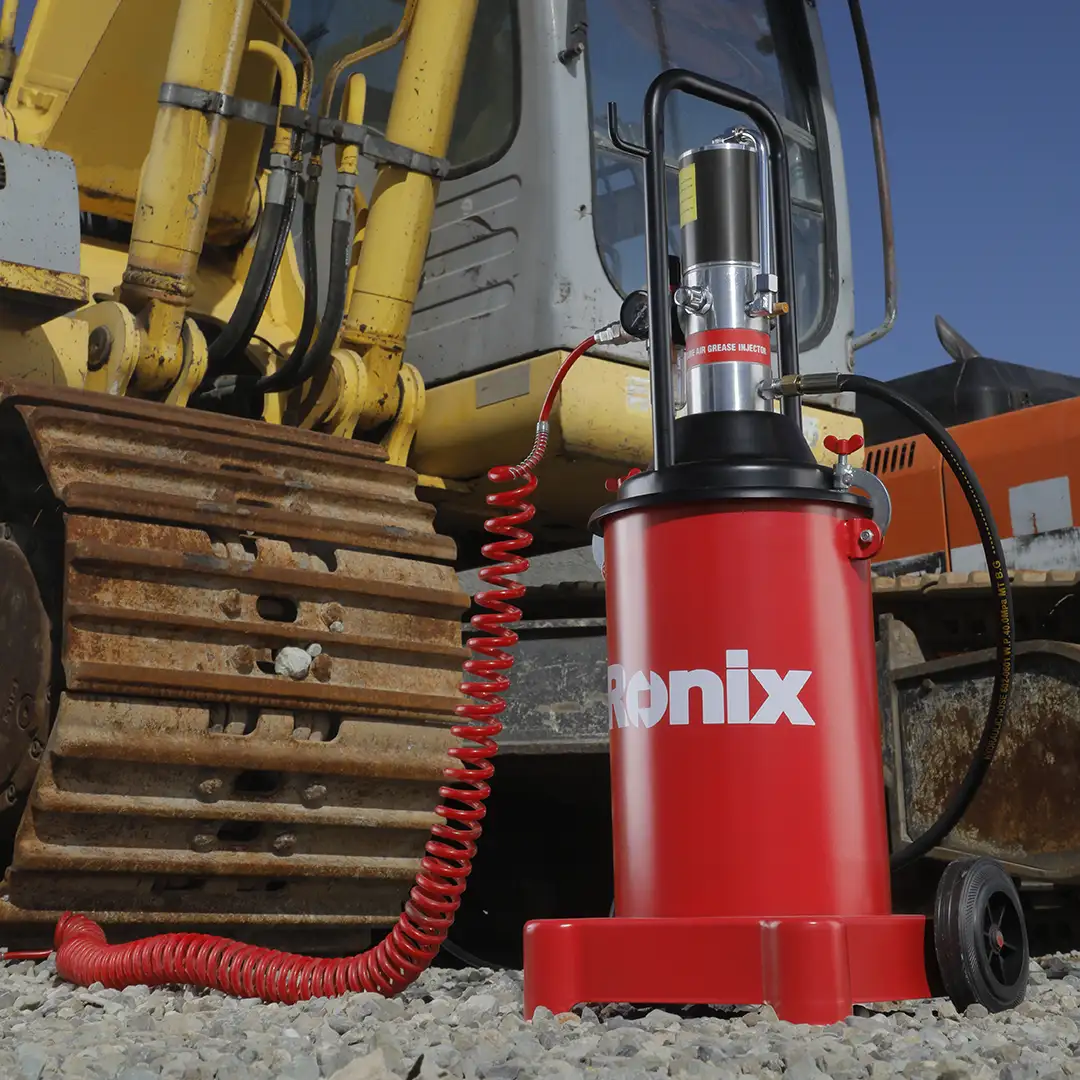

High Pressure Air Grease Injector 12L
Model : RH-4307
: 0
HIGH PRESSURE AIR GREASE INJECTOR 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
HIGH PRESSURE AIR GREASE INJECTOR 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L
High pressure air grease injector 12L

similar model

RH-4307 RH-4308 RH-4309

Model : RH-4307 (NA)

High Pressure Air Grease Injector 12L

Barcode For Inner Carton : 6942318603402

Bulk Order
  • 12-liter high-capacity reservoir
  • 6–8 Bar working pressure
  • Adjustable pressure range of 0–1 MPa
  • 4-meter high-pressure rubber hose
  • designed for reliable lubrication of machines, systems, and components
  • 50:1 compression ratio

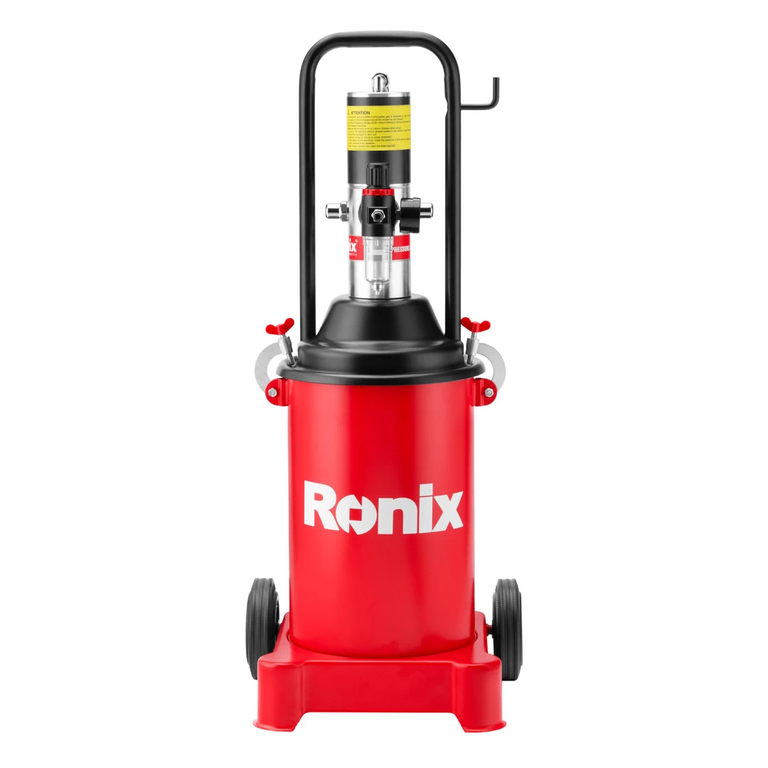

Ronix RH-4307 Pneumatic Grease Pump is a robust and efficient lubricating tool, standing 805 mm tall with a 220 mm diameter and weighing 11.25 kg. Made of durable steel, this pump delivers a powerful working pressure of 6-8 Bar (87-116 psi) with a high compression rate of 50:1, making it ideal for lubricating machines and components. Its 12-liter capacity allows for continuous use, and the adjustable pressure gauge (0-1 MPA, 0-150 psi) provides precise control. Complete with a 4-meter high-pressure rubber hose and essential accessories, the RH-4307 is packaged in a color box for convenience and ease of use.
Model RH-4307
Total height 805 mm
Stand Dimension 330*φ220 mm
Body diameter 220 mm
Capacity 12 L
Max Pressure 400 Bar
5700 Psi
Working Pressure 6-8 Bar
87-116 Psi
pressure gauge graduation unit 0-1 Mpa
0-150 Psi
High-Pressure Rubber Hose Length 4 m
Body Material Steel
Net Weight 9.25 Kg
Total weight 11.25 Kg
packaging Color Box
Included 1 pc HYQ-200 with plain-type nozzle, 1 pc 4 m × 6 mm × 16 mm high-pressure rubber air hose, 1 pc 30 cm gun hose, 1 pc pointed-type nozzle, 1 set repair kit
Downloads & Resources
Ronix-product-detail-10521-1

The RH-4307 delivers high-pressure lubrication with a working pressure of 6-8 Bar, perfect for maintaining machines and components.

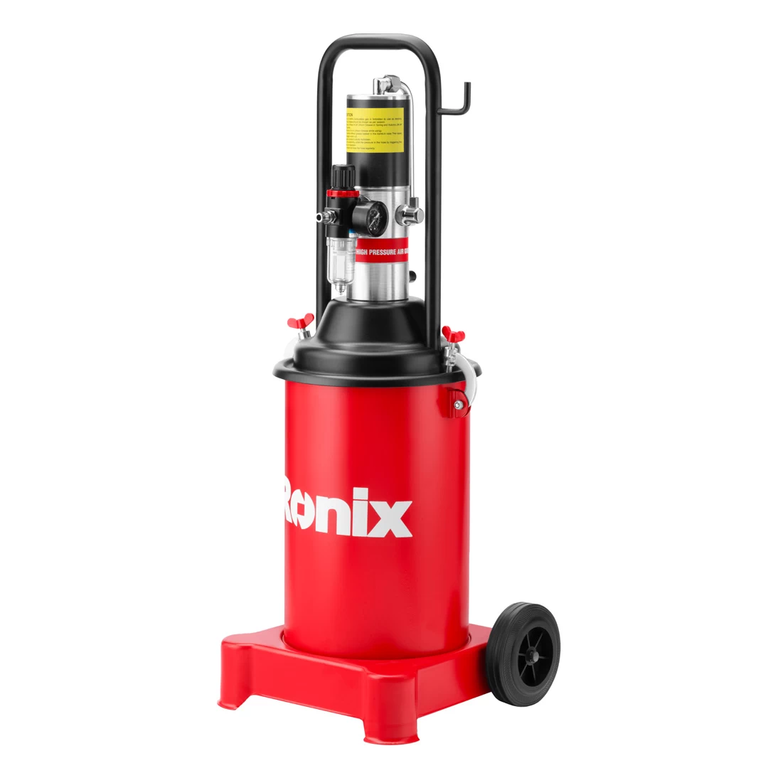

Standing 805 mm tall with a 220 mm diameter, this grease pump has a compact, well-balanced form that’s easy to maneuver. It carries a total weight of 11.25 kg, giving it the stability needed for steady, reliable operation.

The entire body is crafted from durable steel, built to withstand tough environments and long hours of continuous use.

RH-4307 is a pneumatic grease pump that is a powerful lubricating gun with a working pressure of 6-8 Bar (87-116 psi) perfect for almost every heavy-duty application. This amount of pressure is great for lubricating machines, systems, and components. This pump has a compression rate of 50 to 1.

With a 12-liter capacity, it’s designed for uninterrupted operation, giving you longer working intervals with fewer refills.

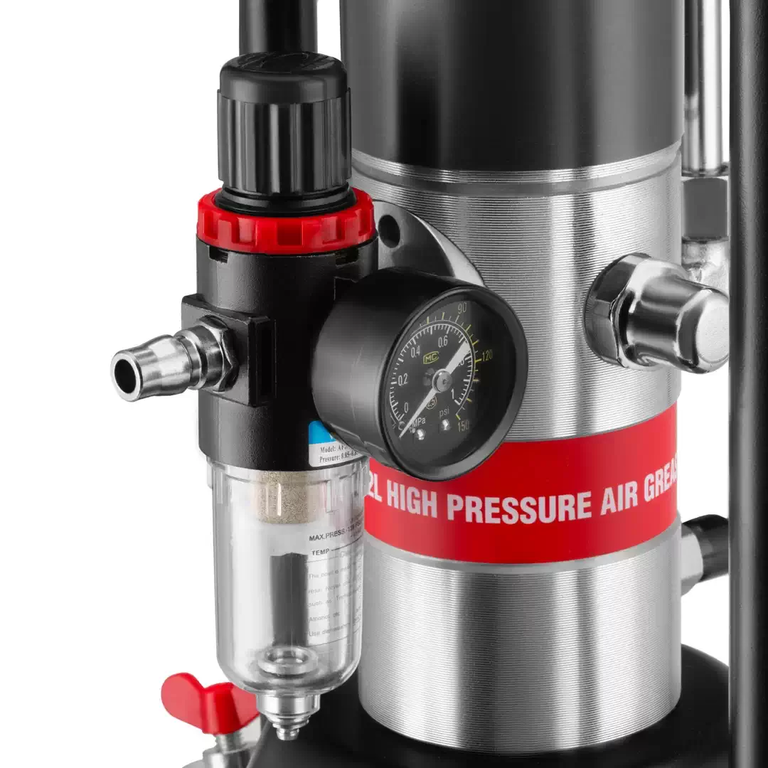

RH-4307 comes with an adjustable pressure gauge that can be adjusted anywhere between 0-1 MPA (0-150 psi).

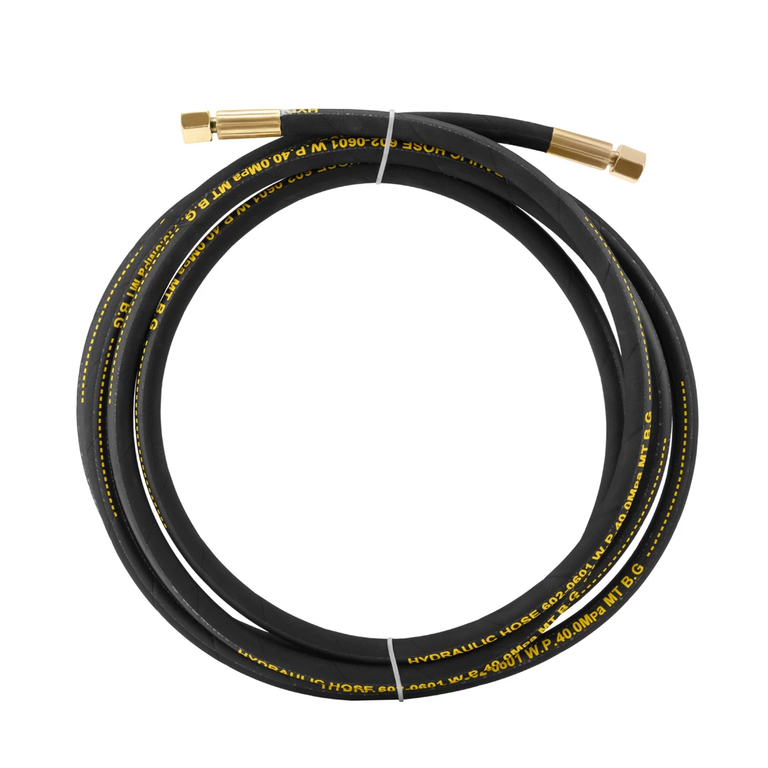

A 4-meter high-pressure rubber hose ensures generous reach and flexibility, making it effortless to work around equipment and tight spaces.

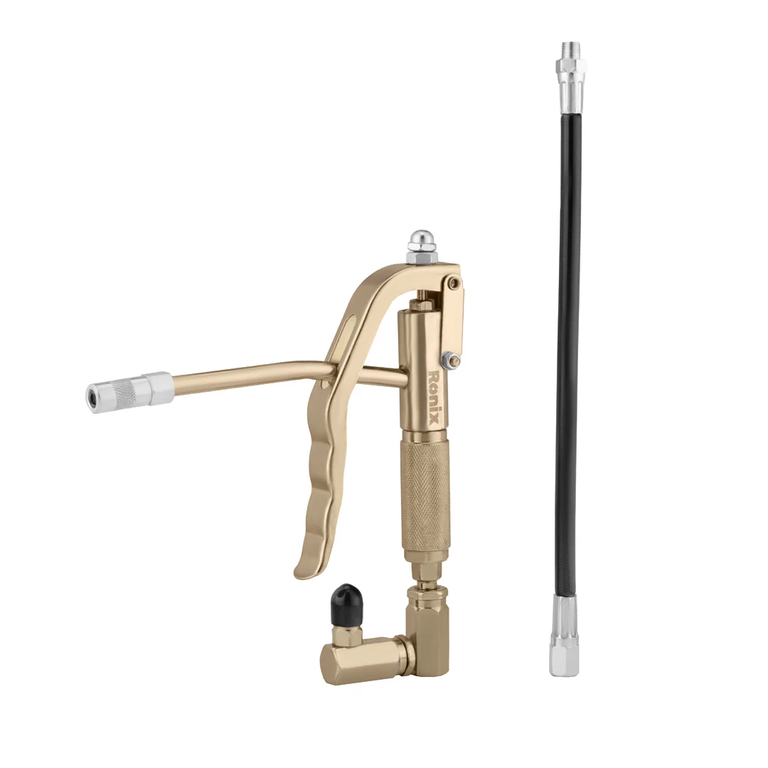

This product is supplied in a color box along with all the essential accessories including 1 pc HYQ-200 with Plain Type Nozzle, 1pc Air Hose: 4m x 6mm x16mm high-pressure rubber hose, 1pc 30 cm gun hose, 1pc pointed type nozzle, 1 set repair kit.
