Model : RH-4783 (NA)
-420 cc, 4-stroke 8600w engine with considerable performance
-25 Liter full steel fuel tank provides up to 7 hours of run time
-Special compact designfor ease of use and better portability
-Circuit breaker outlets for added protection
-Minimum sound and vibration in indoor usage
-100% copper-wound generator head allows continuous operation without overheating
-Includes one (12V) DC outlets
-Ideal for workshops and light-duty industrial usage
Generators are manufactured to convert fuel-based power into electric power and provide electricity for various devices, to be used at places with no power outlet (campsites and outdoor areas), in case of a power outage, to charge cordless tools, or even at your camps.
Finding a portable generator to get your jobs done in these situations would be best. But, before investing in a powerful generator, first, you need to learn about its different kinds and features.

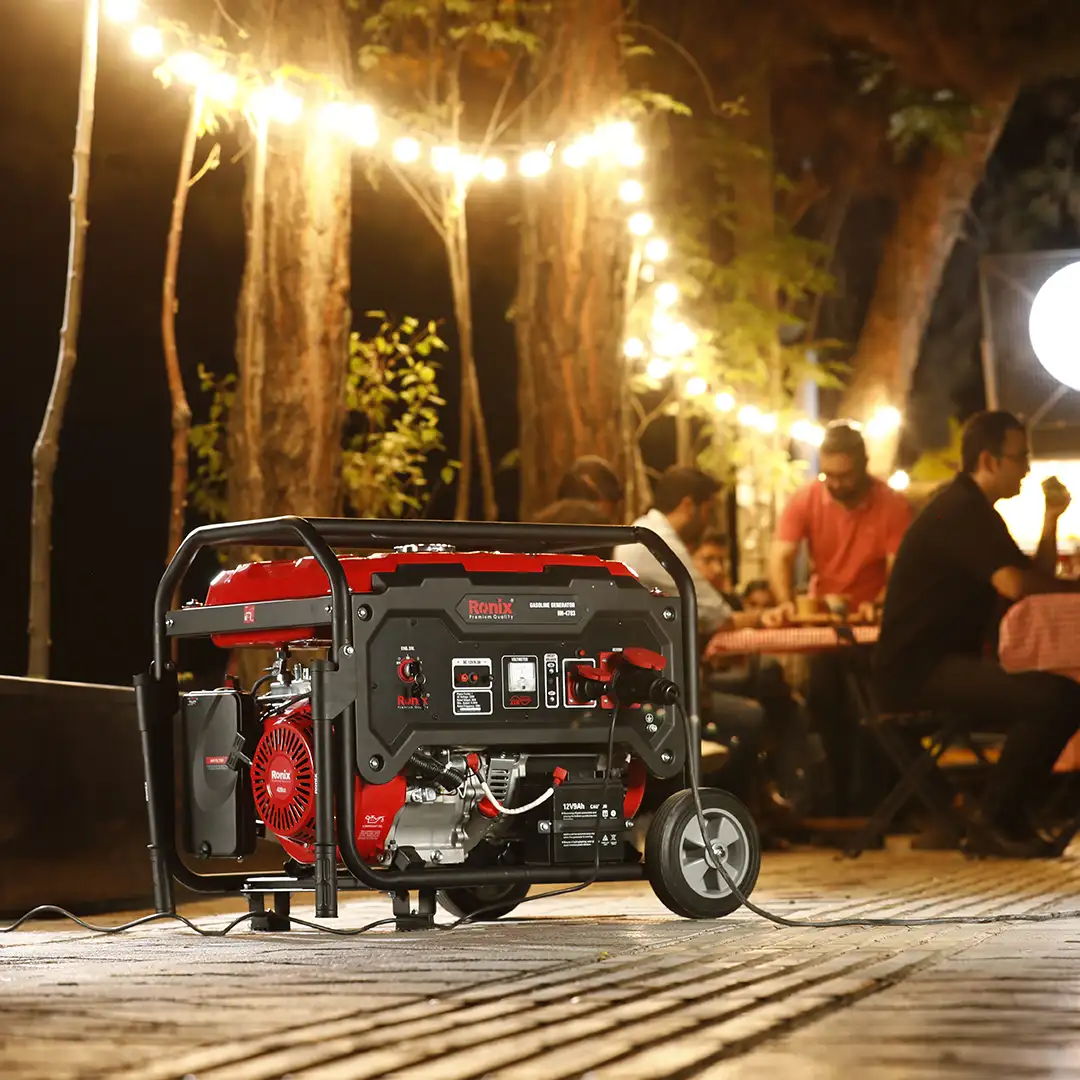

Ronix RH-4783 Gasoline Generator has a smart design and compact body to make it easier for people to move. This machine is used for home, workshop, and industrial use. Also, it is equipped with a single-cylinder and 4-stroke engine with an air-cooled mechanism, which improves its performance and lifespan. The noise and vibration of this generator during operation are negligible, and it can be used in closed spaces with proper air conditioning.
Scroll down to find out about other features of the Ronix RH-4783 gasoline generator.
Model | RH-4783 |
Type | Gasoline Generator |
AC Voltage | 220V |
Generator rated amperage | 27A |
Frequency | 50Hz |
Max. Output | 6.5KW |
Rated Output | 6KW |
Power Factor | 1 |
DC Output | DC 12 V, 8.3A |
Engine model | FC190F |
Engine Type | "single cylinder , 4-stroke,forced air cooled" |
Engine Bore×Stroke | 66mm x 90mm |
Displacement | 420cc |
Max. Output ENGINE | 8.6KW / 3600rpm |
Fuel tank Capacity | 25Lit |
Rated Continuous Operation | 7hr |
Lubricating oil | SAE 10W-30 |
Lubricating oil Capacity | 1.1liter |
Starting System | Recoil & E-start |
Ignition System | T.C.I |
Spark Plug: Type | F7TC/F7RTC |
Maximum fuel consumption rate | 3.57Lit/hr |
Net dimension | 686mm×516mm×560mm |
Overall dimension | 740mm×575mm×625mm |
Net Weight | 83Kg |
Gross weight | 85KG |
Supplied In | carton |
Supplied in | carton |
Includes | "2Plug, 1 Spark plug sleeve, 1 Rod,12V DC output clip, 2key, 1 set wheels and handles" |
Before buying any product, it is necessary to get enough information about its functions and features. Various factors, such as engine type, fuel tank, body design, generator type, voltmeter, circuit breaker, etc., are among the essential features that significantly impact generator performance. In the following, we examine these features in more detail.
To choose the best gasoline generator that suits your needs, you need to know what features and specifications these products offer. In the following, we give a detailed description of the Ronix RH-4783.
Ronix RH-4783 has a four-stroke air-cooled 3500W engine with an FC190F model number. The cylinder’s volume is 420CC, and the machine has a TCI ignition system along with a recoil and E-start starting system. The maximum output power is 8.6KW at 3600RPM. The lubricating oil type is SAE 10W-30 and is stored in a 1.1-liter oil capacity. The spark plug type is F7TC/F7RTC, and the maximum fuel consumption rate is 3.57Lit/hr.
The full-steel Fuel tank Capacity is 25L. Its fuel type is gasoline, providing up to 8.6 hours of run time.
The gasoline generator delivers an AC voltage of 220V, a rated amperage of 27A, and a frequency of 50 Hz, with a copper Winding for maximum effectiveness in long-term use. This generator has a maximum output power of 6.5kw and a rated output of 6kw. The DC output voltage is 12V/8.3A. It has a 100% copper-wound generator head, allowing continuous operation without overheating.
The body of this tool is made with a gross weight of 85kg and a net weight of 83kg. The net dimensions of the product are 686mm×516mm×560mm, and the overall dimensions are 740mm×575mm×625mm. It has minimum vibration and sound with a compact design. But to use it in indoor spaces, ensure you have ideal air conditioning.
It’s covered with circuit breaker outlets for added protection.
Ronix RH-4783 gasoline generator’s carton includes other accessories, including 2 Plugs, 1 Spark plug sleeve, 1 Rod, a 12V DC output clip, two keys, and 1 set of wheels and handles.
