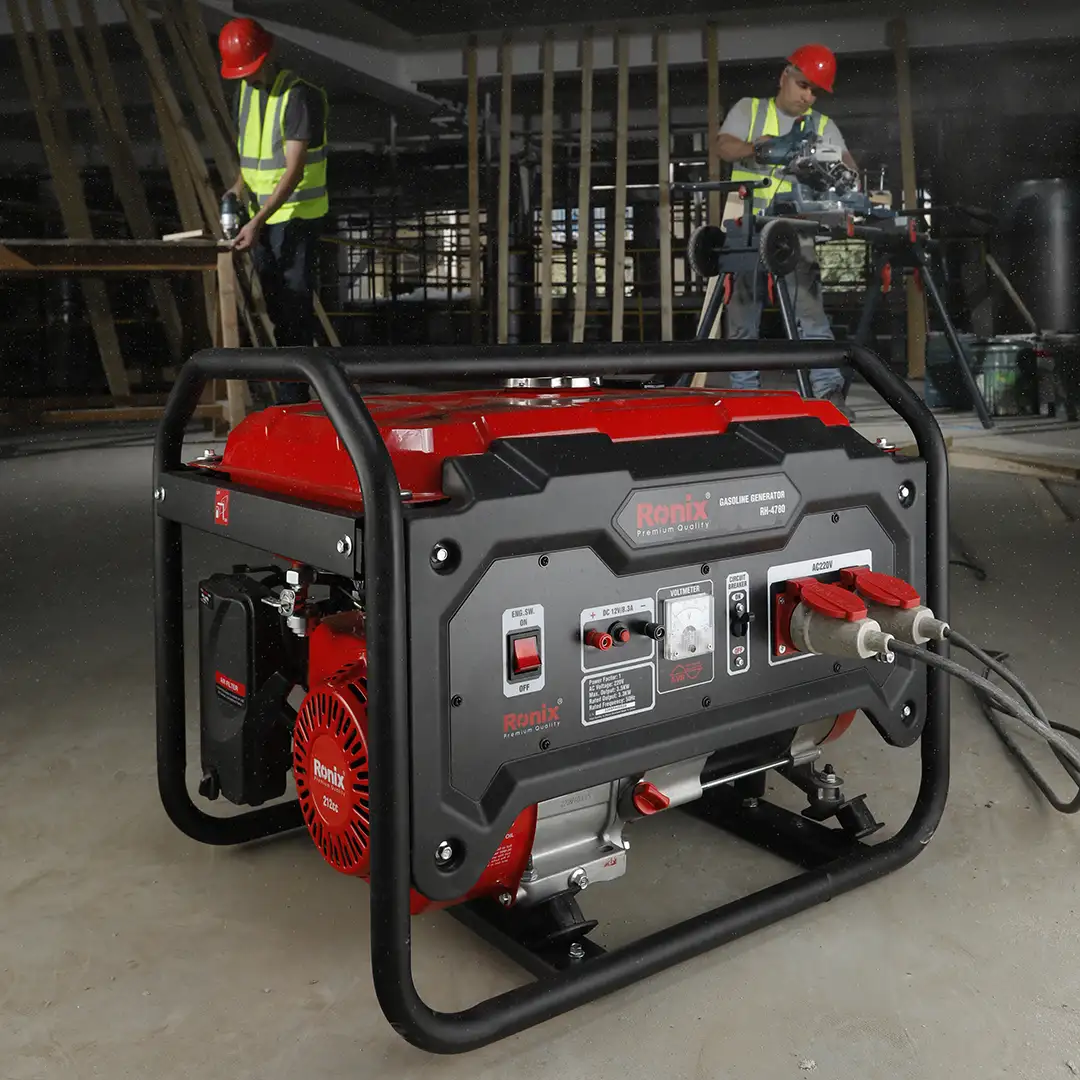

RH-4780

Gasoline Generator 3.5Kw-15L

Write a review

Compare

Generators have a special place in the house, workshop, and industrial applications and will be a big help if you encounter a power outage, want to recharge your cordless devices, or need a power source in campsites or outdoors.

There are many types of generators for various applications, and choosing the one that suits your needs, requires a knowledge of their features and capabilities.

Ronix generators are designed and manufactured with distinctive features to meet the needs of different users. Ronix RH-4780 gasoline generator has a powerful four-stroke engine with a capacity of 212CC and a compact body with a professional design.

It can work nonstop for over 8 hours and has a 100% copper-wound generator head that allows this continuous operation without overheating. This generator delivers up to 3500W power and has a large full-steel fuel tank with a 15-liter capacity.

Hot Sales

Download Catalog

Detailed Description

Ronix RH-4780 Gasoline Generator delivers maximum performance with its powerful single-cylinder and 4-stroke air-cooled engine. Its outstanding features make this generator a widely used machine for household, workshop, and industrial use.

Ronix RH-4780: Always Keep Your Cordless Devices Up!

To choose the best generator that suits your needs, you need to know what features and specifications these products offer. In the following, we give a detailed description of the Ronix RH-4780.

Engine:

Ronix RH-4780 has a four-stroke air-cooled 3500W engine with an FC170F-1 model number. The cylinder’s volume is 212CC, and the machine has a TCI ignition and recoil starting system. The maximum output power is 4.3KW at 3600RPM. The lubricating oil type is SAE 10W-30 and is stored in a 0.6-liter oil capacity. The spark plug type is F7TC/F7RTC, and the maximum fuel consumption rate is 1.74Lit/hr.

Fuel tank:

The full-steel Fuel tank Capacity is 15L. Its fuel type is gasoline, providing up to 8.6 hours of run time.

Generator:

The gasoline generator delivers an AC voltage of 220V, a rated amperage of 13A, and a frequency of 50 Hz, with a copper Winding for maximum effectiveness in long-term use. This generator also has a maximum output power of 3.5kw and a rated output of 3.3kw. The DC output voltage is 12V/8.3A. It has a 100% copper-wound generator head, allowing continuous operation without overheating.

Body:

The body of this tool is made with a gross weight of 45.5kg and a net weight of 43.5kg. The net dimensions of the product are 590mm×430mm×465mm, and the overall dimensions are 645mm×490mm×530mm. It has minimum vibration and sound with a compact design. But to use it in indoor spaces, ensure you have ideal air conditioning.

Protector

It’s covered with circuit breaker outlets for added protection.

Accessories and Packaging:

Ronix RH-4780 gasoline generator’s carton includes other accessories, including 2 Plugs, one spark plug sleeve, 1 Rod, and one 12V DC output clip.

Features

Download Exploded View Download User Manual

- 212cc, 4 -stroke 4300w engine with considerable performance

- 15 Liter full steel fuel tank provides up to 8.6 hours of run time

-Special compact designfor ease of use and better portability

-Circuit breaker outlets for added protection

-Minimum sound and vibration in indoor usage

- 100% copper-wound generator head allows continuous operation without overheating

- Includes one (12V) DC outlets

-Ideal for workshops and light-duty industrial usage

Download Exploded View Download User Manual

Specifications

Model

RH-4780

Type

Gasoline Generator

AC Voltage

220V

Generator rated amperage

13A

Frequency

50Hz

Max. Output

3.5KW

Rated Output

3.3KW

Power Factor

DC Output

DC12V,8.3A

Engine Type

"single cylinder , 4-stroke,forced air cooled"

Engine Bore×Stroke

50mm x 70mm

Displacement

212cc

Max. Output ENGINE

4.3KW / 3600rpm

Fuel

Gasoline

Fuel tank Capacity

15Lit

Rated Continuous Operation

8.6hr

Lubricating oil

SAE 10W-30

Lubricating oil Capacity

0.6liter

Starting System

Recoil

Ignition System

T.C.I

Spark Plug: Type

F7TC/F7RTC

Maximum fuel consumption rate

1.74Lit/hr

Net dimension

590mm×430mm×465mm

Overall dimension

645mm×490mm×530mm

Net Weight

43.5Kg

Gross weight

45.5Kg

Supplied In

carton

Includes

2Plug, 1 spark plug sleeve,1 Rod, one 12V DC output clip
