Model : RH-4781 (NA)
-223 cc, 4 -stroke 4900 w engine with considerable performance
-15 Liter full steel fuel tank provides up to 8.6 hours of run time
-Special compact designfor ease of use and better portability
-Circuit breaker outlets for added protection
-Minimum sound and vibration in indoor usage
-100% copper-wound generator head allows continuous operation without overheating
-Includes one (12V) DC outlets
-Ideal for workshops and light-duty industrial usage
From houses and small workshops to heavy-duty industrial places and giant buildings, the use of generators is undeniable. You may encounter a power outage at your workspace, want to charge your cordless devices, or even need a power source outdoors. In these situations, having a compact and powerful generator that suits all your needs is helpful.

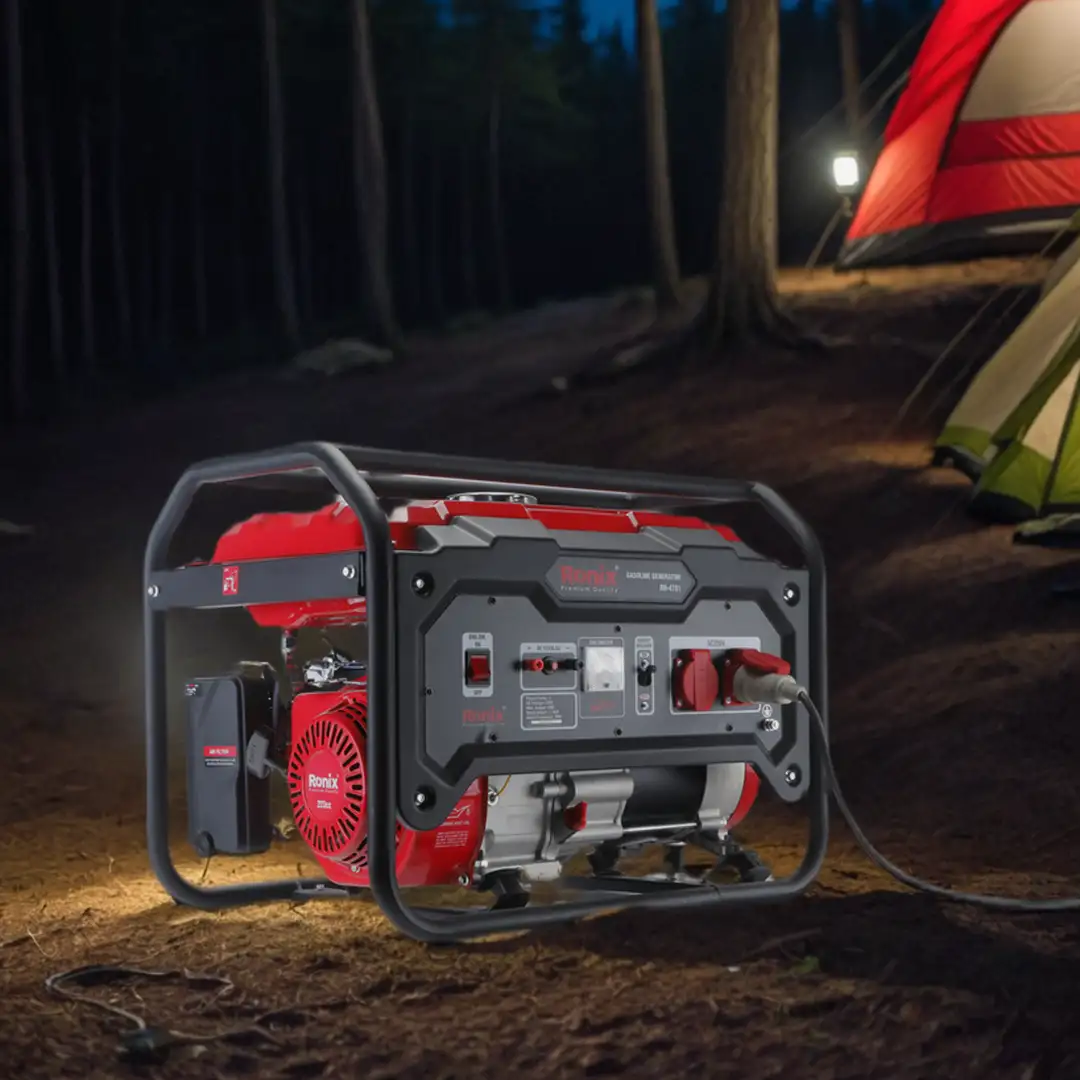

Ronix generators are designed and manufactured with distinctive features to meet the needs of different users. Ronix RH-4781 Gasoline Generator has a unique design and compact body that makes it easy to carry. The fuel required by this tool is supplied from gasoline. In addition, it has a 223CC single-cylinder, 4-stroke engine, a 15-liter fuel tank, and a quick protection switch.
It has minimum sound and vibration during work; therefore, it can be used in closed spaces under proper air conditions.
Scroll down to find out about other features of the Ronix RH-4781 gasoline generator.
Model | RH-4781 |
Type | Gasoline Generator |
Generator rated amperage | 14A |
AC Voltage | 220V |
Frequency | 50Hz |
Max. Output | 4KW |
Rated Output | 3.7KW |
Power Factor | 1 |
DC Output | DC12V,8.3A |
Engine Type | "single cylinder , 4-stroke,forced air cooled" |
Engine Bore×Stroke | 58mm x 70mm |
Displacement | 223cc |
Max. Output ENGINE | 4.9KW / 3600rpm |
Fuel | Gasoline |
Fuel tank Capacity | 15Lit |
Rated Continuous Operation | 8.6hr |
Lubricating oil | SAE 10W-30 |
Lubricating oil Capacity | 0.6liter |
Starting System | Recoil |
Ignition System | T.C.I |
Spark Plug: Type | F7TC/F7RTC |
Maximum fuel consumption rate | 1.74Lit/hr |
Net dimension | 590mm×430mm×465mm |
Overall dimension | 645mm×490mm×530mm |
Net Weight | 43.5Kg |
Gross weight | 45.5Kg |
Supplied in | carton |
Includes | 2 Plug, 1 spark plug sleeve,1 Rod, 12V DC output clip |
Various factors, such as engine type, fuel tank, body design, generator type, voltmeter, circuit breaker, etc., are among the essential features that significantly impact generator performance. In the following, we examine these features in more detail.
To choose the best generator that suits your needs, you need to know what features and specifications these products offer. In the following, we give a detailed description of the Ronix RH-4781.
Ronix RH-4781 has a four-stroke air-cooled 3500W engine with an FC170F-2 model number. The cylinder’s volume is 223CC, and the machine has a TCI ignition and recoil starting system. The maximum output power is 4.9KW at 3600RPM. The lubricating oil type is SAE 10W-30 and is stored in a 0.6-liter oil capacity. The spark plug type is F7TC/F7RTC, and the maximum fuel consumption rate is 1.74Lit/hr.
The full-steel Fuel tank Capacity is 15L. Its fuel type is gasoline, providing up to 8.6 hours of run time.
The gasoline generator delivers an AC voltage of 220V, a rated amperage of 14A, and a frequency of 50 Hz, with a copper Winding for maximum effectiveness in long-term use. This generator also has a maximum output power of 4kw and a rated output of 3.7kw. The DC output voltage is 12V/8.3A. It has a 100% copper-wound generator head, allowing continuous operation without overheating.
The body of this tool is made with a gross weight of 45.5kg and a net weight of 43.5kg. The net dimensions of the product are 590mm×430mm×465mm, and the overall dimensions are 645mm×490mm×530mm. It has minimum vibration and sound with a compact design. But to use it in indoor spaces, ensure you have ideal air conditioning.
It’s covered with circuit breaker outlets for added protection.
Ronix RH-4781 gasoline generator’s carton includes other accessories, including 2 Plugs, one spark plug sleeve, 1 Rod, and one 12V DC output clip.
