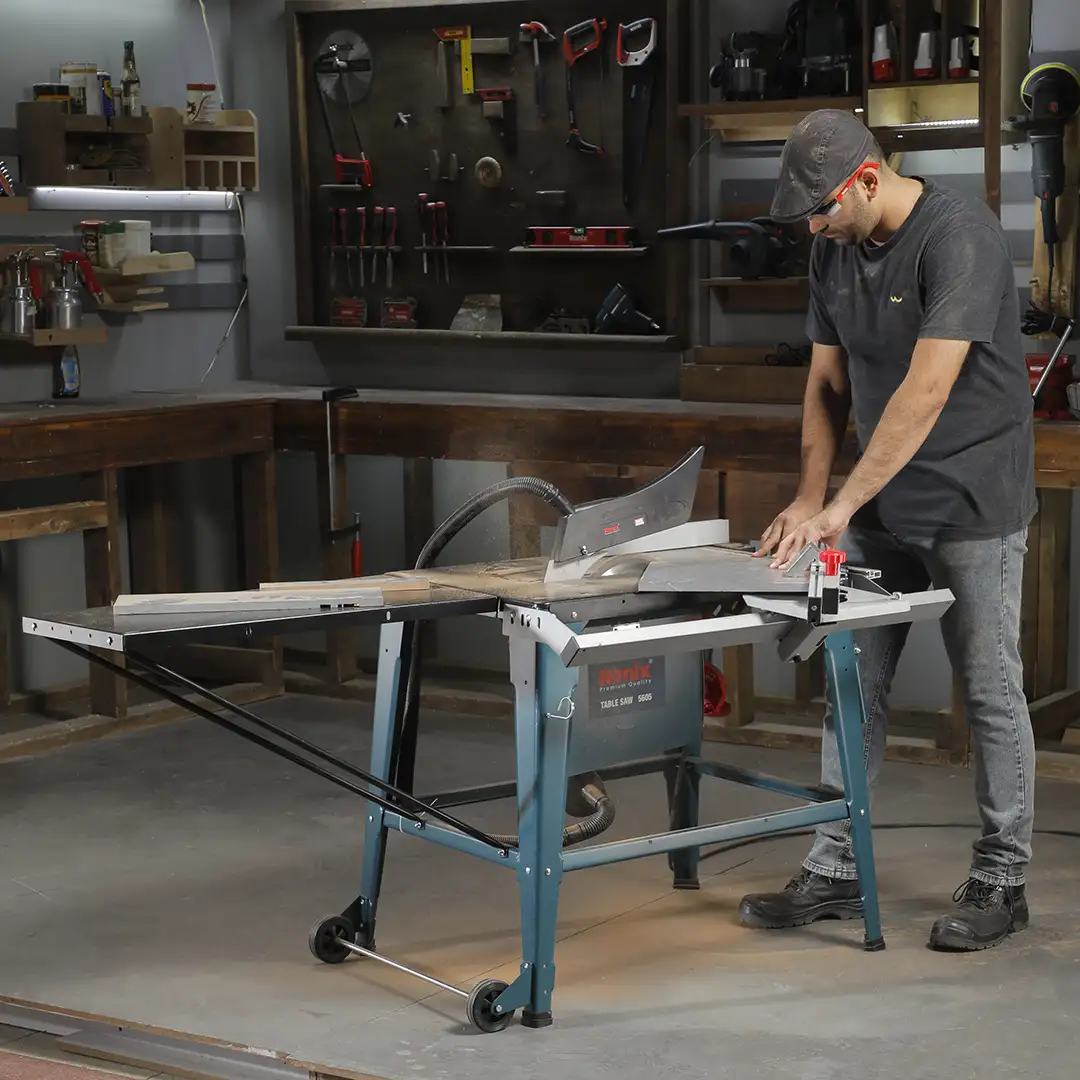

Electric Table Saw 2000W-315mm

Write a review

Compare

Cutting wood and thick workpieces with a handsaw is not easy. Since it is extremely difficult, perhaps impossible, to keep the saw blade straight while working, a table saw is an appropriate tool for cutting thick or wide pieces. In a table saw, a disc is used in the center of the table with a guide rod to lead the workpiece. Ronix produces its series of table saws with unique variety and quality to meet the needs of users. The Ronix 5605 features a powerful motor, durable blade, professional body, and convenient accessories to make it a great choice for your work environment.

Hot Sales

Download Catalog

Detailed Description

The Ronix needs no introduction as it has proven itself in the field of tools. It is distinguished by its ability to always renew itself and offer high-performance technological equipment. With its Ronix 5605 table saw, Ronix offers a powerful and versatile machine. It is very easy to handle and will allow you to make both straight and angled cuts.

Ronix 5605, 2000W Electric Table Saw:

The Ronix 5605 table saw is a compact saw with great cutting capabilities. The redesigned motor/gearbox configuration maximizes the cutting height of the 315mm blade. The machine is easy to transport with its ergonomic wheels. Scroll down to get more information.

Motor and Mechanism:

With Ronix, you are never disappointed! Its robust 2000W motor and efficient idle speed of 2950 RPM make it one of the best on the market.

Cutting blade:

Ronix 5605 has a blade with an outer diameter of 315 mm, an inner hole diameter of 30 mm, and a segment thickness of 3 mm. Its maximum cutting capacity is 83 mm at an angle of 0° and 50 mm at an angle of 45°; the blade can be enclosed under the table to protect it during transport.

Body and switches:

The table is appropriately and ergonomically designed, with a net weight of 48 kg and a total length of 1734 mm. The net weight of the side table is 6 kg. The expandable dimensions of the cutting table in the vertical direction are 400 x 800 mm. The table is made of Q235A steel. The body and all parts of this saw are made of high-quality raw materials, which increases the life of the tool. The machined sliding table is made of steel and has dimensions of 685 x 964 mm. Two PVC rubber wheels make it easy to move the unit. The Ronix 5605 table saw dust collector collects excess sawdust and dirt from the work area. In addition, this device is equipped with a large on/off switch.

Safety Guard:

The transparent blade guard allows the user to see the workpiece. This blade guard has a new design and, thanks to the possibility of adjusting it on both sides, it allows different cutting functions to be performed easily.

Accessories and Packaging:

The Ronix 5605 comes in a Ronix-designed color box and includes a saw blade, a dust pipe, an angle ruler, a guide ruler, a spanner, two wheels, a hook, and a push rod.

Features

Download Exploded View Download User Manual

-Powerful 2000W motor delivers 2950 RPM for maximum productivity and top performances in different functions

-Made from high quality material which secures precise cutting in different angles and applications

-Adjustable dual side guards with new design, facilitates cutting in different functions

-Efficient dust collection system enables clean operation

-Large on and off Switch

-Saw blade enclosed underneath the table to protect the blade during transport

-New guard design allows the operator to view the blade as it contacts the material

- 0° To 45° precision machined table top remains flat and true for accurate cuts

- Easy portability

Download Exploded View Download User Manual

Specifications

Model

5605

Power

2000W

Voltage

220~240V

Frequency

50 Hz

No-Load Speed

2950 RPM

Cutting Disc Diameter

315 mm

Tilt Range

0° To 45°

Blade Size

Φ315×3×Φ30mm 40Z

Max Cutting Capacity

"0°: 83mm: 45°, 50mm"

Table Size

800×550mm

Pulling extension table

800×400mm

Sliding extension table

964×685mm

Dust bag size

with dust pipe, no dust bag

Table material

Q235A steel

Number of wheels

2PCS

Wheels material

PVC+Rubber

Total Length(mm)

1734 mm (with sliding table)

Weight (N.W)-Table saw

48 Kg

Weight (N.W)-Table saw Sliding table

6 Kg

Supplied In

Ronix color box

Includes

Saw blade 1pc; wrench 1pc; angle ruler 1set; guide ruler 1set; push rod 1pc; dust pipe 1pc；wheels 2pcs, hook 1pc
