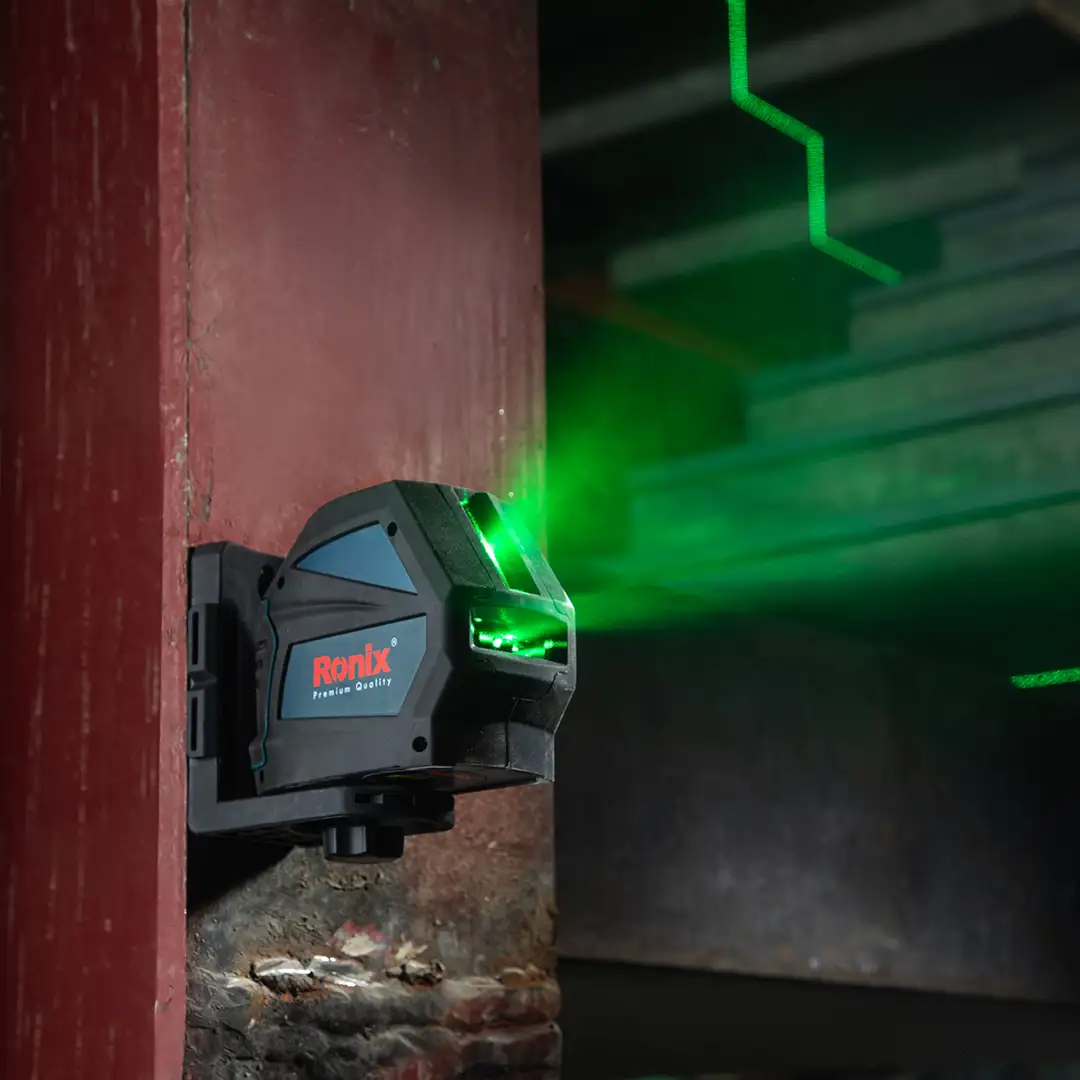

Cross Line Laser Level 50M-Green Beam
Model : RH-9500G
: 1.6
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam
Cross Line Laser Level, Self leveling, 50M,Green Beam

Model : RH-9500G (1.62)

Cross Line Laser Level 50M-Green Beam

Barcode : 6970206848505

Bulk Order
Features:

‐Both Indoor & Outdoor available(with detector)
-Vertical, Horizontal & Cross green Line Modes
‐Projects two lines independently or together for a wide array level and/or plumb
applications
-Able to set up quickly and effortlessly to project horizontal or vertical lines
-Self-leveling system compensate minor angular misalignments of ± 4° automatically
-Built-in locking system to lock the compensator when in
 transportation to avoid vibration
-Robust Over‐Molded Housing
-Working with various related accessories to reach nearly all
applications easily
-Pendulum lock for protecting laser system during movements
-Equipped with magnetic pivoting base which can be easily adsorbed onto metal parts
For the uninitiated, let us explain what laser level is. The laser level makes perfect and efficient use of laser beam technology to project a laser-level line on the horizontal or vertical plane. This line helps you get an idea of vertical and horizontal alignment. It was originally introduced for use on the job site. The early predecessors of the modern laser level were bulky and expensive tools, too expensive for everyday use. Modern laser levels are less expensive and easier to transport. It will not be wrong to say that it has revolutionized the entire construction and other related projects. The results obtained after using a construction laser level are much more accurate than before and the whole process has been shortened and more efficient. A true technological innovation, the Ronix RH-9500G offers incredible performance to professionals and individuals alike. With a range of 20 m (and even 50 m with a detector), it can be used both indoors and outdoors thanks to its vertical, horizontal, and green line transverse modes. This color was chosen because it is 3 times more visible than red and has the advantage of consuming less energy and producing less heat. For unmatched efficiency, this laser level is also capable of self-leveling to ± 4°, it is a Class II, 515nm laser and has a rugged over-molded housing that allows it to work with a variety of related accessories to reach almost any application easily.

Model RH-9500G
Accuracy ±2mm@5m
Leveling Range ±3.5°
Working Range/With Detector 15m/50m with detector
Tripod Thread "1/4
Laser Color Green
Laser Type 515nm, laser class II
Line Width 2mm @ 10m
Operating Temperature 10°C to 45°C-
Storage Temperature 20°C to 60°C-
Dimensions 119x62x95/cm3
Continuous Working Time (All Diodes) 6hour≤
Resistance IP54
Power Supply 3 x AA Alkaline batteries
Net Weight 0.554Kg
Gross weight 2.01Kg
Supplied In PLASTIC CASE
Includes FRS500(wall bracket),manual
Downloads & Resources
Ronix-product-detail-10521-1
The Ronix RH-9500G Cross Line Laser Level features self-leveling capability, high accuracy, and fast performance. It performs very well in the desired direction, either horizontal or vertical lines. This level features a pendulum lock to protect the laser system of the device in case of movement or shifting, and it offers the highest operating accuracy with its fully transparent laser diodes.
Are you a professional who wants to get your upgrades done quickly and efficiently without spending a large budget? Ronix RH-9500G is the best laser level available for those who want to get the job done quickly and efficiently. Continue reading to learn more about the features of this Ronix-designed cross-line laser level.
Ronix Rh-9500G is engineered with high laser leveling technology, and the laser type used in this product is a 515nm laser class II.
The working range of the tool with the detector is 50m, and the accuracy of vertical lines is ± 2 mm at 5m.
The operating temperature of this laser level is -10˚C to 50˚C.
The self-leveling system compensates for minor angular misalignments of ± 4° automatically. To turn the self-leveling system off and work on tilt lines without vibration or alarm interference, you can use the side lock switch and disable the compensating system.
This device is fitted with a pendulum locking system to lock the compensator when in transportation to avoid vibration.
The ergonomic anti-shock body design of the RH-9500G robust over‐molded housing removes the risk of damage in case of falling or stroke. The dimensions of this tool’s body are 119x62x95 mm.
This laser level can be set up quickly and effortlessly to project horizontal plane or vertical lines independently or together for a wide array level.
It is equipped with a magnetic pivoting base, readily adsorbed onto metal parts. It can also be used to fix the laser level on the tripod. The tripod thread is 1/4”.
Three 1.5V batteries are provided and the continuous working time of Ronix RH-9500G cross-line laser alignment diodes is 6 hours.
Ronix RH-9500G is supplied in a BMC case and is compatible with various accessories.
