RA-1402

Air drill 10mm-10N.m keyless

Write a review

Compare

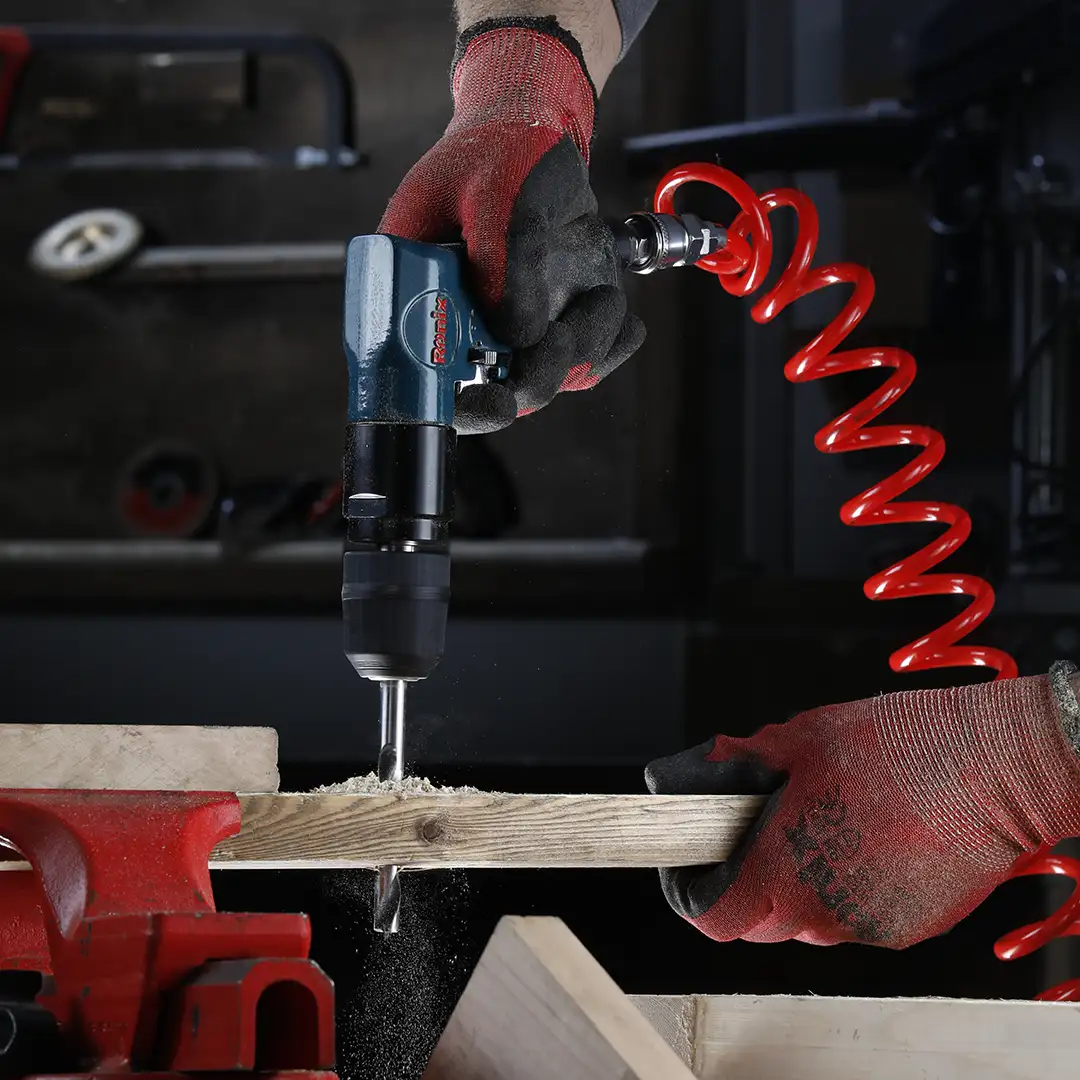

The Ronix RA-1402 keyless air drill brings its power from the air compressor. This air tool features a powerful motor and dual hammer mechanism and is an ideal choice for applications such as automotive and mechanical repair. This small and ergonomic pneumatic drill is capable of producing a torque of over 10 Nm. The two-piece construction and compact size of this unit, in addition to its ease of use and prevention of early user fatigue, allow it to be used in tight spaces. The body of the Ronix RA-1402 pneumatic drill is light and at the same time durable, it has an aluminum housing. The gun-shaped handle of this tool also reduces operator fatigue during continuous, long-term use.

Hot Sales

Download Catalog

Detailed Description

Professional mechanics and even do-it-yourselfers use the Ronix RA-1402 air drill as a fast and efficient tool. Users enjoy extremely high speed and power with this efficient Ronix air drill.

Ronix RA-1402, 10mm Keyless Air Drill:

To learn more about the technical features of the Ronix RA-1402 10mm keyless Air Drill, the next section is a good guide for you.

Motor:

The powerful motor in this drill operates at an idle speed of 1800 RPM and has a unique design that makes it precise, and vibration-free, and increases the durability and balance of the tool. The torque of this tool, over 10 Nm, provides the power needed to install and remove tough, heavy-duty nuts and bolts.

Mechanism:

This pneumatic tool works by connecting to an air compressor and storing and directing compressed air. The working pressure is 6.3 bar (equivalent to 90 PSI) and the average air consumption volume is equal to 106 liters per minute (3.7 CFM). In addition, with an exclusive impact mechanism, this device is tough enough to handle harsh environments, repeated drops, and chemical exposure.

Chuck:

Ronix RA-1402 is designed with a keyless chuck. With a chuck capacity ranging from 1mm to 10mm, this air drill can accommodate a wide range of bit sizes, making it ideal for various drilling operations. Plus, the chuck size of this machine is 24UNF.

Body:

The Ronix RA-1402 air drill is designed with a rugged aluminum body that offers durability and reliability. Weighing only 1.1 kg, this tool is lightweight and easy to use, making it an excellent choice for long hours of use. The pistol grip handle provides a comfortable and secure grip, reducing user fatigue and ensuring precise control. The handle of this air drill is 180 mm long, providing enough space for a comfortable grip and easy access to tight spaces. The 1/4" air inlet of the unit is made in a 360-degree rotation design to prevent the 3/8'' air hose from being twisted or bent. Besides, the handle exhaust directs air away from the workpiece and the operator.

Switches:

The dust-proof, heavy-duty switch is engineered for Ronix RA-1402 to increase durability and accuracy of operation at various levels. It also features an adjustable power regulator that allows you to easily adjust the power needed for your task.

Accessories and Packaging:

Ronix RA-1402 air drill is supplied in a Ronix-designed color box and includes a connector and an oil bottle.

Features

Download Exploded View Download User Manual

- Lightweight and easy operation which is a reliable choice for auto hobbyists and professional mechanics.

- Delivers a maximum torque of 10N.m , and offers enough power to install and remove stubborn bolts, lug nuts, and other hardy fasteners.

-Adjustable power regulator lets you easily adjust power output needed for your task ; efficient performance with impressive rotational speeds of up to 1800 rpm.

-Exclusive impact mechanism

-Handle exhaust directs air away from the workpiece and the operator

-Optional 360-degree air inlet swivel keeps air hose from being twisted and kinked

-Easy to service two-piece construction

-This pneumatic impact wrench is tough enough to handle harsh environments, repeated drops, and chemical exposure

-Optimized handle provides user comfort and control.

Download Exploded View Download User Manual

Specifications

Model

RA-1402

Head Style

Keyless chuck

Chuck Size

3/8"-24UNF

Chuck Capacity

1mm-10mm

Max Torque

7.4 (ft.lb) ,10 (N.m)

Working Pressure

90 (Psi) , 0.63(MPa), 6.3(Bar)

No-Load Speed

1800 (rpm)

Air inlet(NPT)

1/4'' (ln) ,6.35 (mm)

Air hose(ID)

3/8'' (ln) ,9.52 (mm)

Avg air consumption

3.7 (CFM), 106(L/min)

Length

7.08 (ln) , 180 (mm)

Weight

1.1(kg)

Handle Type

Pistol grip

Housing Material

aluminum

Included components

1pc connector, 1pc oil bottle

Supplied in

COLOR BOX
