Turbo Granite Cutting Disc 230 mm - Segment 13 - German
Model : RH-3561
: 0

Model : RH-3561 (NA)

Turbo Granite Cutting Disc 230 mm - Segment 13 - German

Barcode For Card : 4069516001334

Barcode For Color Carton : 4069516001341

Bulk Order
  • Manufactured by forging process which ensures faster cut, longer life and a higher level of safety.
  • For each application there is an optimal combination of diamond, alloy and manufacturing parameters.
  • High-quality diamond tools with optimized cutting behaviors require the use of high-quality raw materials.
  • Diamond tools must be matched to the application (range of use, material to be cut, drive power, speed, etc.)
  • The optimum balance between diamond concentration, diamond quality
  • Applications Granite cutting disc for concrete, hard building materials, for rough cutting granite, etc.
  • For natural stones such as marble, wet cutting is usually done with table or bridge saws using blades larger than Ø230mm
  • The alloy hardness against the abrasion of the material to be processed guarantees reliable performance
  • Suitable for both dry and wet cutting with a strong bond between steel body and diamond segments.
  • Our tools are manufactured in accordance with EN13236 to ensure safe use.
  • The gaps between the diamond segments promote airflow and help dissipate heat generated during cutting
  • Different sizes that will cover all your fabrication cutting needs

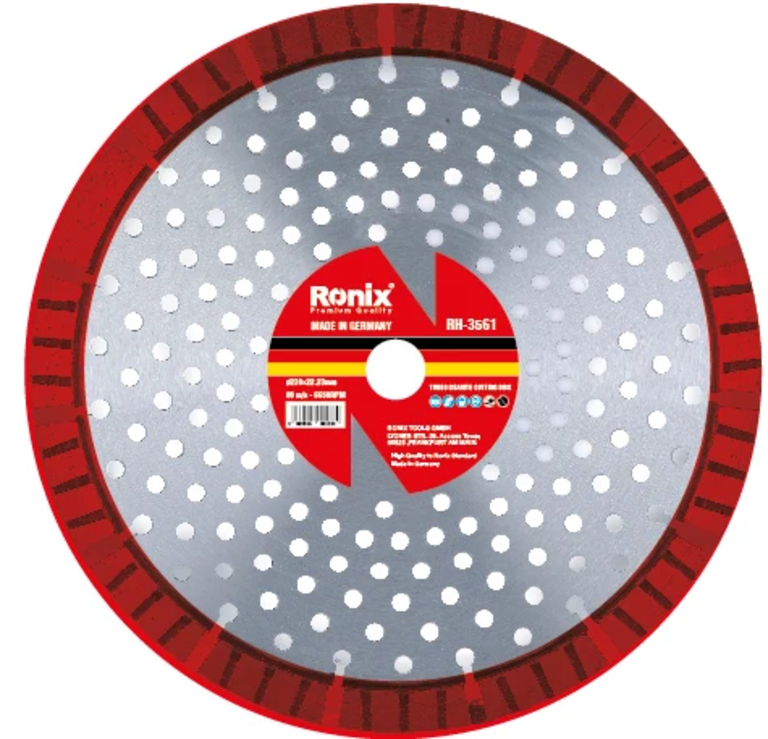

Built for heavy-duty cutting on hard construction materials, concrete, and granite, the Ronix RH-3561 Turbo Granite Cutting Disc is manufactured in Germany under strict quality controls to ensure the best cutting experience when mounted on the right angle grinder.
Designed in full compliance with EN13236 European safety standards, it guarantees both performance and protection for professional users.
Model RH-3561
Body Material Laser weldable Steel
Style K092
Maximum RPM 6650 RPM
Max Speed 80 m/s
Application Granite
Tools Angel Grinder
Number of Teeth 16
Arbor Size 22.23 mm
Disc Thickness 1.8 mm
Wheel Diameter 230 mm
Segment Thickness 2.6 mm
Segment Height 13 mm
Weight 0.61 Kg
Downloads & Resources
If you’re looking for a professional granite cutting disc that delivers both power and precision, the Ronix RH-3561 is the answer. Let’s see why:
The RH-3561 is manufactured from laser-weldable steel, engineered with high-quality raw materials to ensure precision, durability, and safety. Its construction guarantees faster, smoother cuts on granite and other hard materials, along with a longer service life even under heavy-duty use.
Designed for granite cutting and other tough stonework, this disc is the perfect solution for construction, renovation, and industrial projects. With a maximum speed of 80 m/s and a rotation capacity of 6650 RPM, it delivers powerful and efficient performance on any angle grinder. Its optimized design makes it reliable for demanding, heavy-duty applications.
The RH-3561 features 16 turbo teeth, each with a 13 mm segment height, ensuring effective cutting depth and durability. With a wheel diameter of 230 mm, a segment thickness of 2.6 mm, and a slim disc thickness of 1.8 mm, this disc achieves both strength and precision. It also includes a standard 22.23 mm arbor size for compatibility and weighs 0.61 kg, providing balance and stability during operation.
