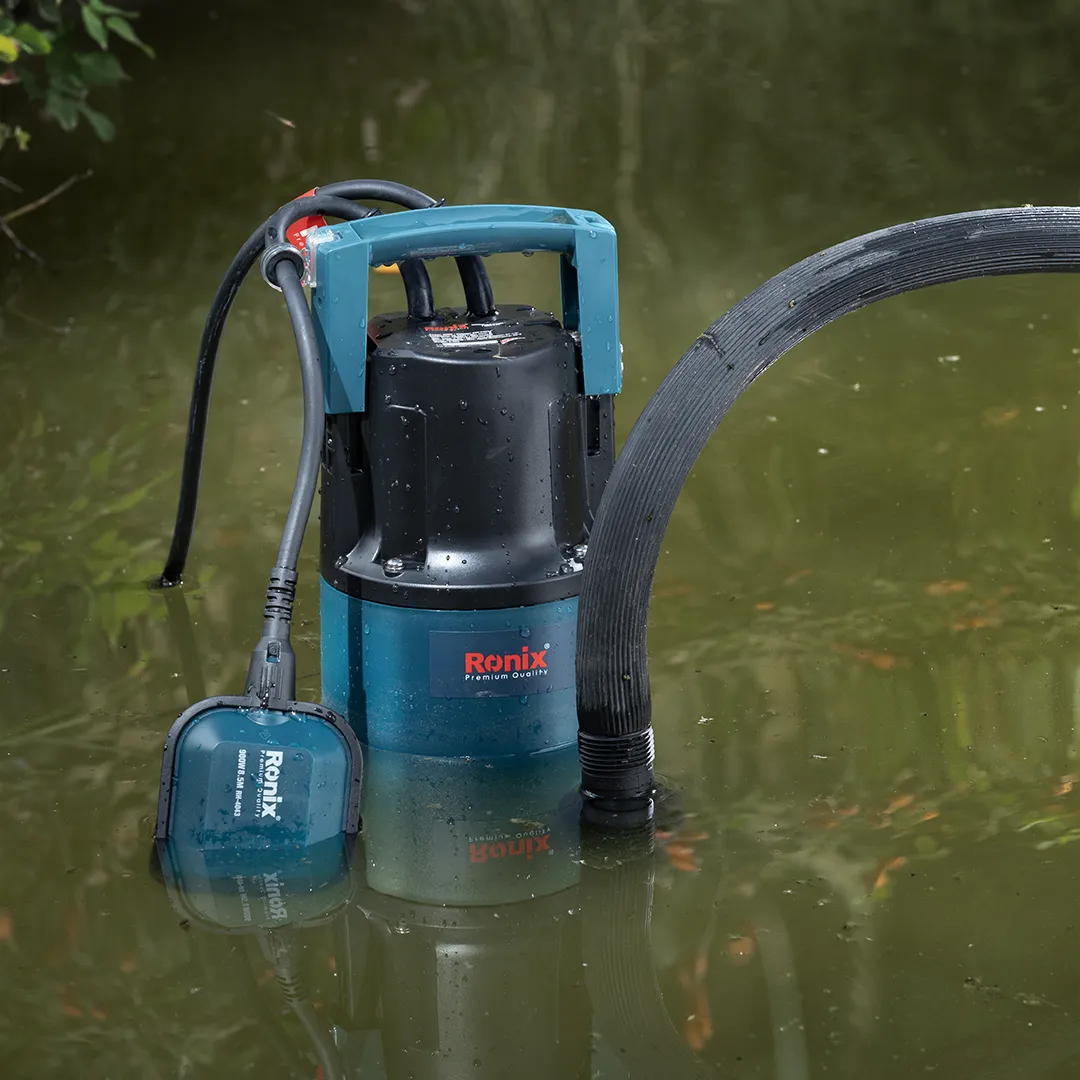

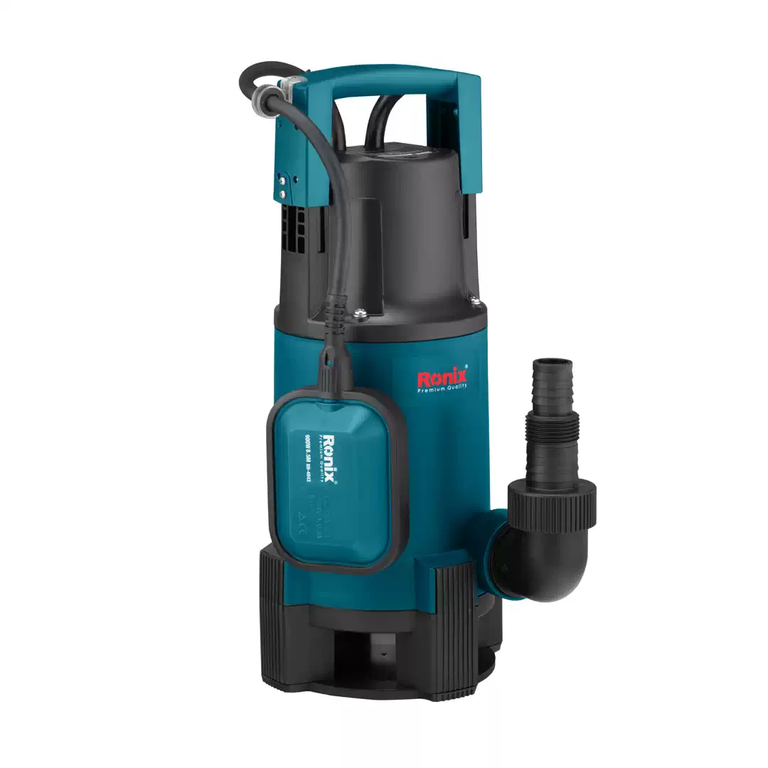

Submersible sewage pump 900W-8.5m
Model : RH-4043
: 0

Model : RH-4043 (NA)

Submersible sewage pump 900W-8.5m

Barcode : 6942318622458

Bulk Order
Submersible pump design to be immersed in water for lifting and draining water
Suitable for pumping dirty water, discharging domestic waste water that containing suspended solids up to a maximum of ?mm

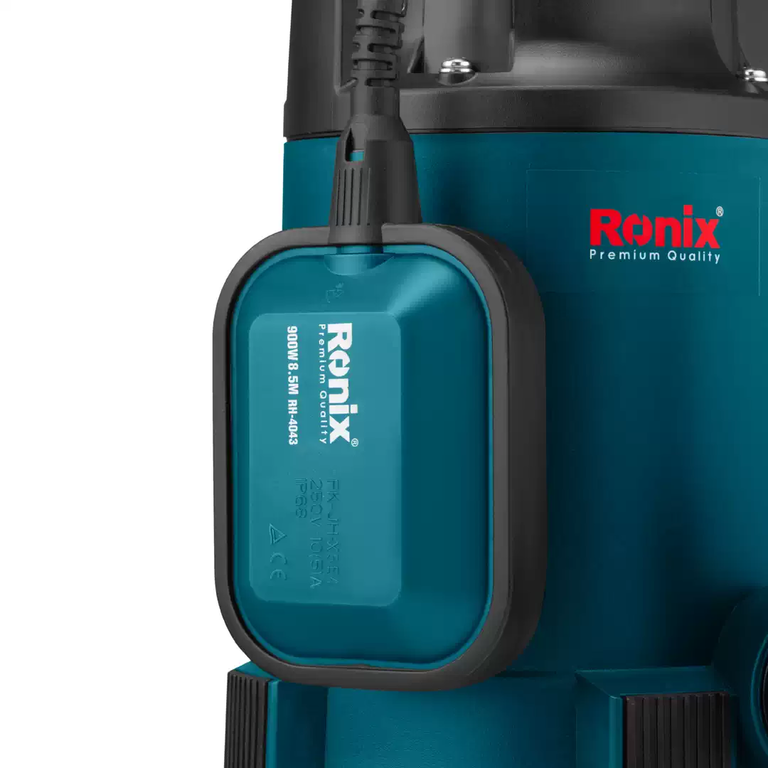

Pumps equipped with float switch for automatically controlling water level and pump operation
Provides with Protection level IPX8,Thermal protector and insulation ClassBto ensure motor long life
More efficiency by using Ceramic/Graphite mechanical seal, PA66 impeller,PPpump housing
The motor duty cycle type S1 lead to increase  durability
All the exposed screw is stainless steel material.
Stainless steel motor cover and shaft to extend the life time.
oil submerged lip seal and mechanical seal makes the sealing more reliable
High strength engineering plastic pump body
Model RH-4043
Power 900W
Voltage 220-240V
Frequency 50-60Hz
Min.Flow 0
Max. Flow 14000L/H
Min.Head 0
Max. head 8.5m
Inlet/outlet port diameter "G1-1/2
Speed 2850RPM
Max. liquid temperature ℃35
Max. Ambient temperature ℃35
Working Pressure 0.85bar
solid passage diameter 35mm
max immersion depth 7M
max dry running time 30seconds
Protection level IPX8
Insulation Class Class B
Pump housing material PP
Motor housing material 409#Stainless steel
Mechanical seal material Ceramic and graphite
Motor protection Thermal Protector(125℃)
Coil winding material copper winding
Impeller material PA66
shaft material 420#Stainless steel
Weight 6.5KG
packaging color box
Includes Adapter 1pc, manual
