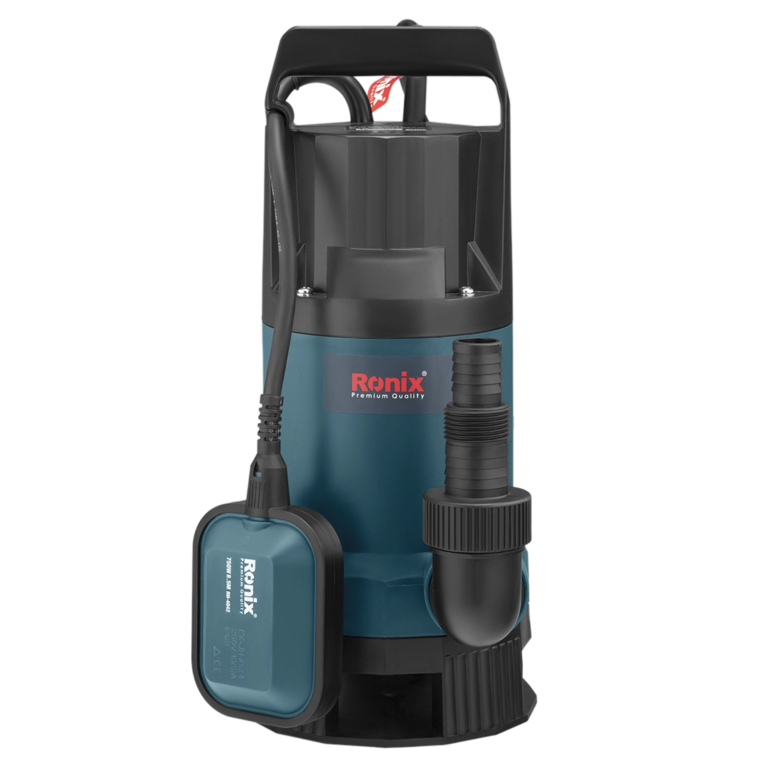

Submersible Sewage Pump 750W-8.5m
Model : RH-4042
: 0

Model : RH-4042 (NA)

Submersible Sewage Pump 750W-8.5m

Barcode For Color Box : 6942318622434

Barcode For Inner Carton : 6942318622441

Bulk Order
  • Protection level IPX8 with a thermal protector and Class B insulation ensures long motor life.
  • Increased efficiency with a ceramic/graphite mechanical seal, PA66 impeller, and PP pump housing.

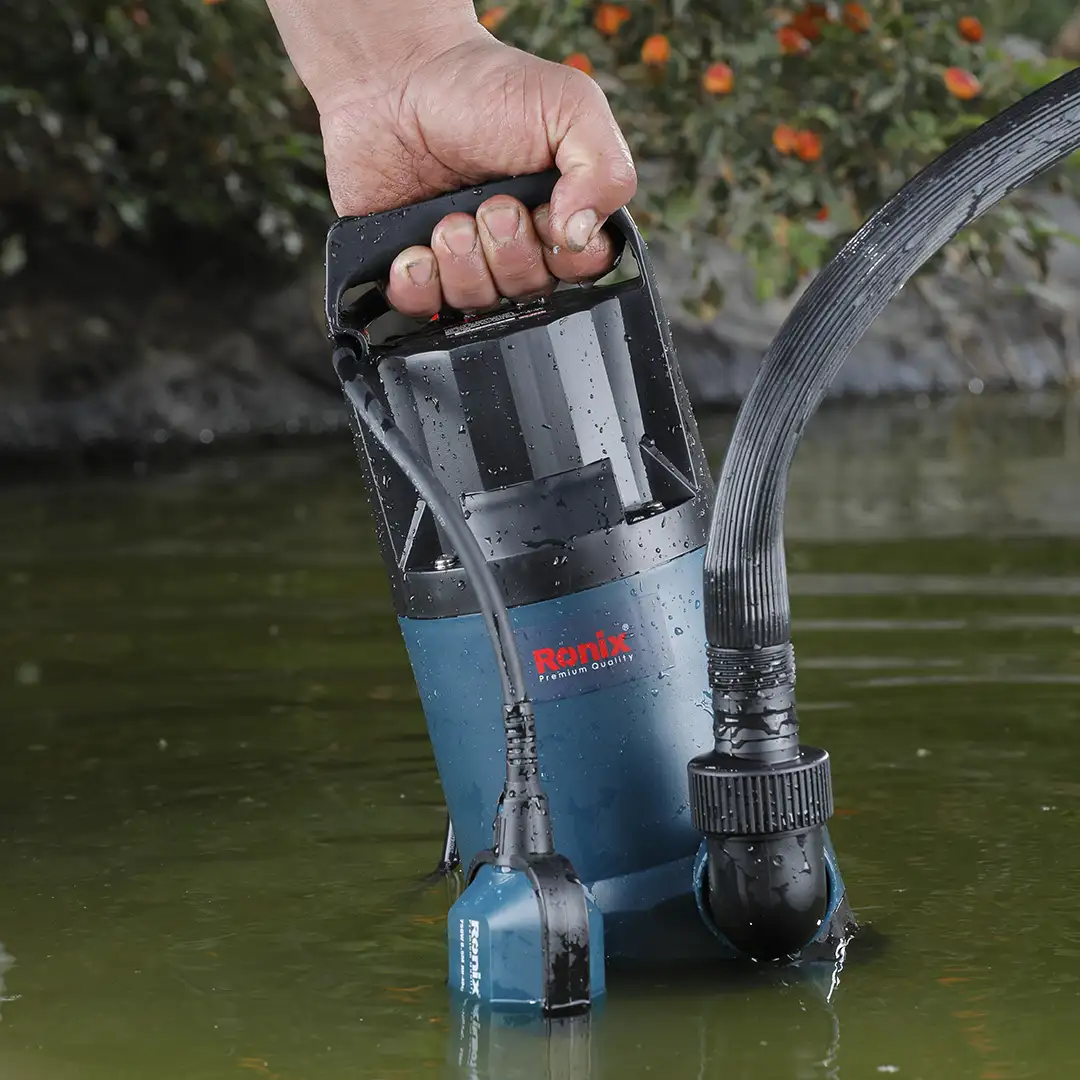

  • Submersible pump designed for immersion in water for efficient lifting and draining.
  • Suitable for pumping dirty water and discharging domestic wastewater containing suspended solids.

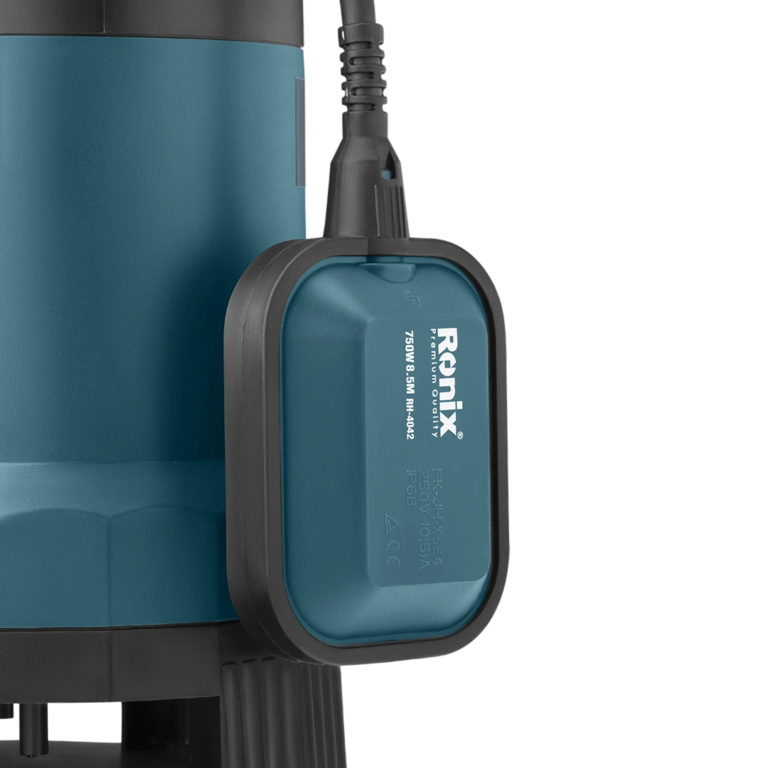

  • Equipped with a float switch for automatic water level control and pump operation.
  • Continuous-duty motor (S1 duty cycle) for enhanced durability.
  • All exposed screws are made of stainless steel for corrosion resistance.
  • Stainless steel motor cover and shaft extend pump lifespan.
  • Oil-submerged lip seal and mechanical seal for improved reliability.
  • High-strength engineering plastic pump body for added durability.
Model RH-4042
Power 750W
1HP
Voltage 220-240V
Frequency 50Hz
Max. Flow 13000L/h
13m³/h
Min.Head 0m
Max. head 8.5m

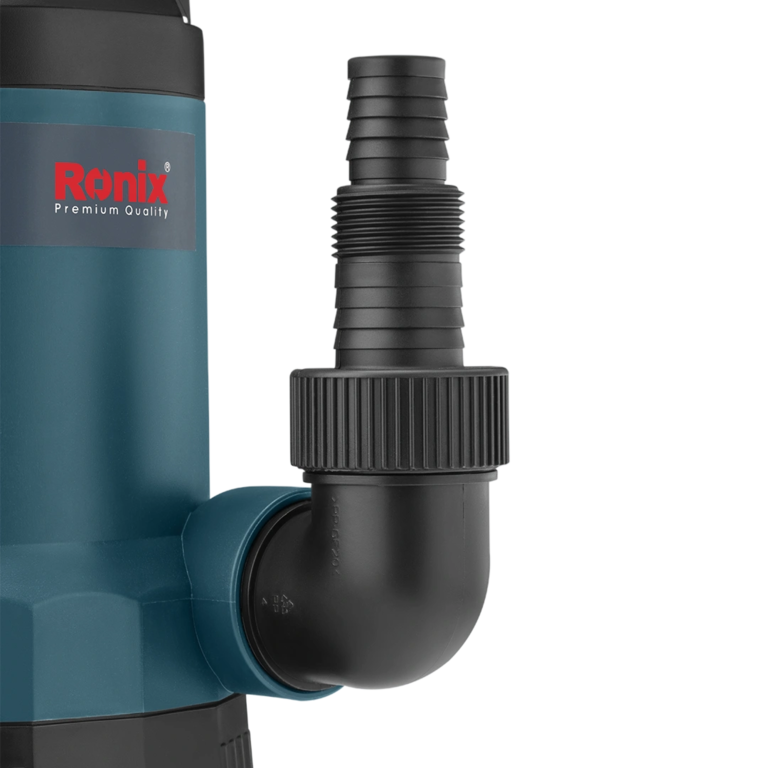

outlet port diameter G1 1/2inch
Speed 2850RPM
Max. liquid temperature 35℃
Max. Ambient temperature 35℃
Working Pressure 0.8Bar
solid passage diameter 35mm
max immersion depth 7m
max dry running tim 30seconds
Protection level IPX8
Insulation Class B class
Pump housing material PP
Motor housing material 409#Stainless steel
Mechanical seal material Ceramic and graphite
Motor protection 125℃
Coil winding material copper winding
Impeller material PA66
shaft material 420#Stainless steel
Net Weight 5.1Kg
Gross weight 5.5Kg
packaging color box
Include Adaptor*1, Manual*1
