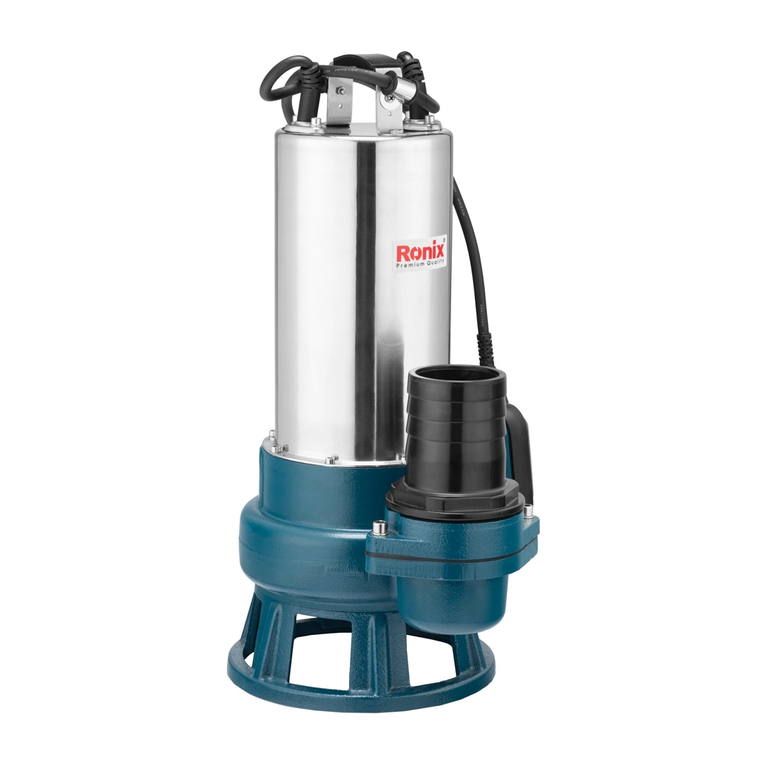

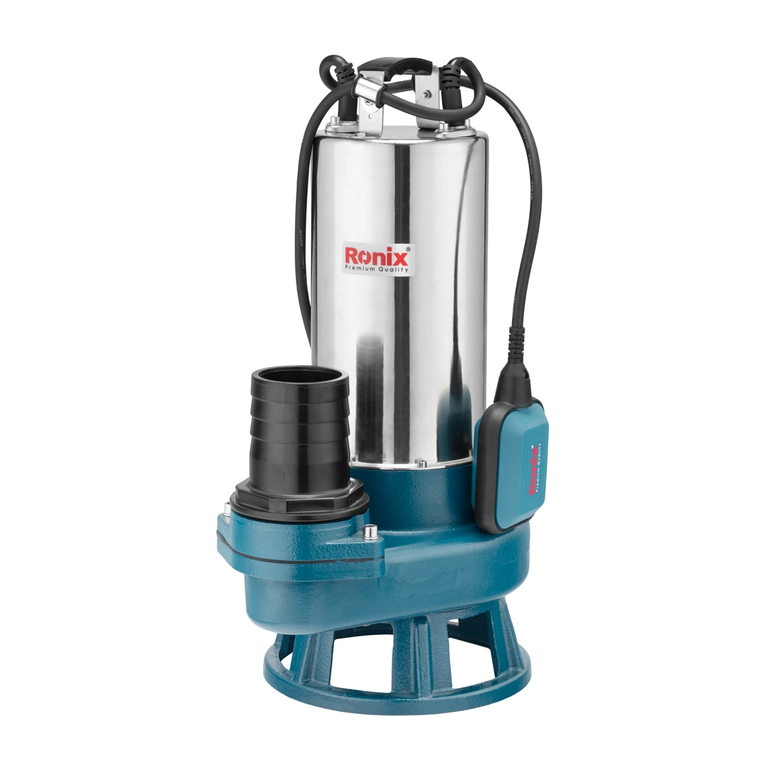

Model : RH-4041 (NA)
Model | RH-4041 |
Power | 2 HP |
Voltage | 220 V |
Frequency | 50 Hz |
Min.Flow | 5 m³/h |
Max. Flow | 36 m³/h |
Min.Head | 2 m |
Max. head | 13.5 m |

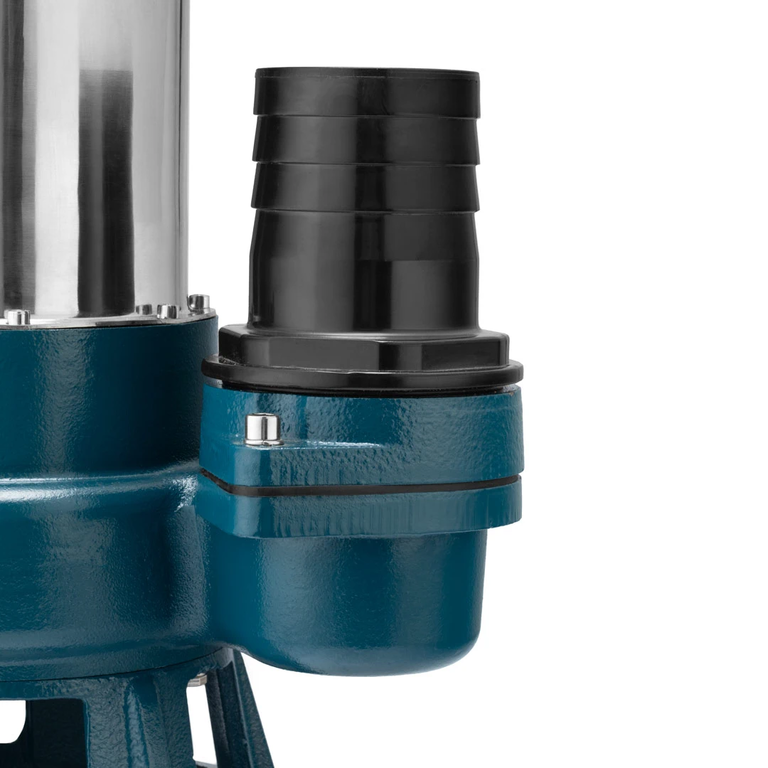

outlet port diameter | 3 inch |
Speed | 2850 RPM |
Max. liquid temperature | 0-35 ℃ |
Max. Ambient temperature | 0-40 ℃ |
Working Pressure | 0-1.35 Bar |
solid passage diameter | 25 mm |
max immersion depth | 5 m |
max dry running tim | 30 seconds |
Protection level | IP68 |
Insulation Class | B |
Pump housing material | CAST IRON |
Motor housing material | S/S 304 |
Mechanical seal material | SIC-SIC/Ceramic-Graphite |
Coil winding material | COPPER |
Impeller material | CAST IRON |
shaft material | 316+45 |
Weight | 26.4 Kg |
Supplied In | honeycomb carton |
