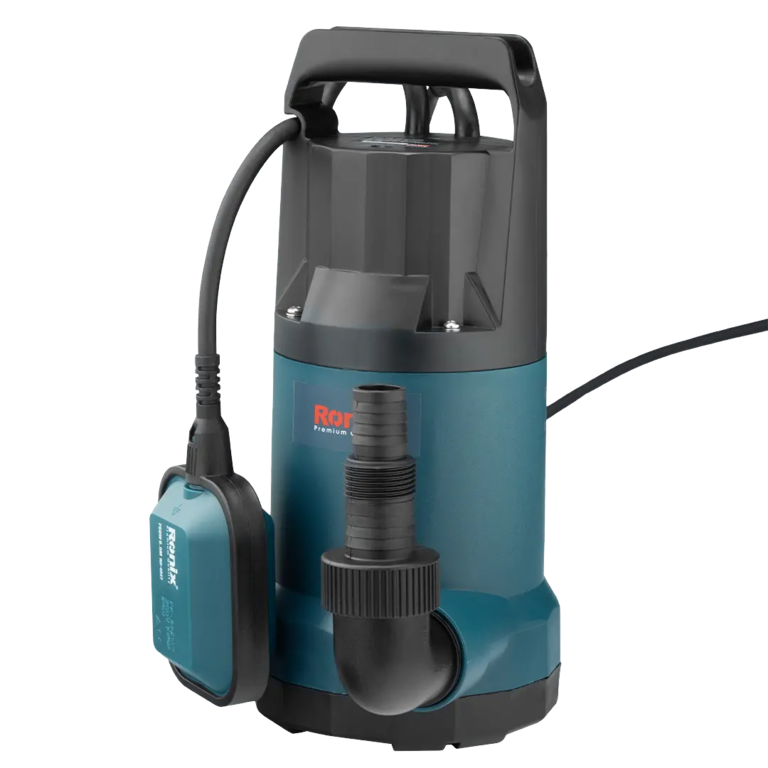

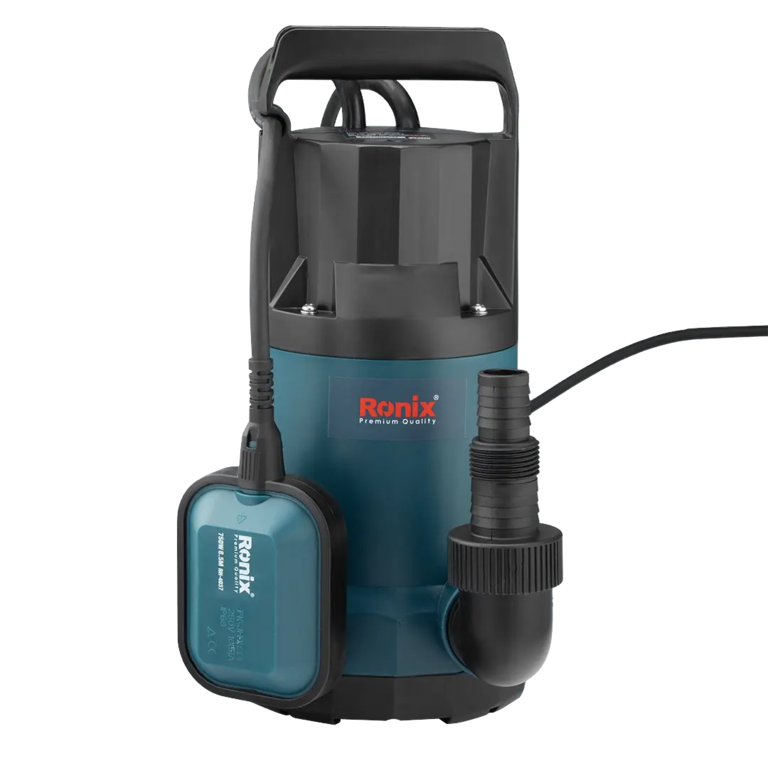

Submersible Pump 750W-8.5m
Model : RH-4037
: 0

Model : RH-4037 (NA)

Submersible Pump 750W-8.5m

Barcode For Color Box : 6942318622410

Barcode For Inner Carton : 6942318622427

Bulk Order
  • IPX8 protection level, with thermal protection and insulation Class B, ensures long motor life.
  • Submersible pump design, ideal for immersion in water for water lifting and drainage.
  • Suitable for clean water free of solids and abrasives, as well as non-viscous, non-aggressive, non-crystallized liquids with physical and chemical properties similar to water.
  • Perfect for domestic drainage, water lifting from tanks, rivers, or pools, and for garden and allotment irrigation.

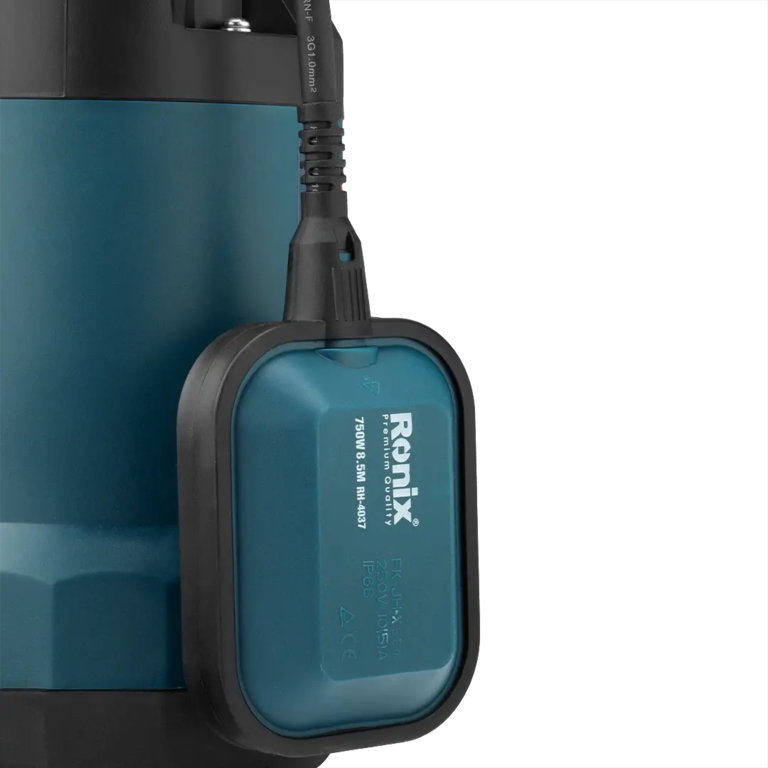

  • Equipped with a float switch for automatic water level control and pump operation.
  • Continuous-duty motor (type S1) for increased durability
  • Stainless steel screws for corrosion resistance
  • Stainless steel motor cover and shaft for extended longevity.
  • Oil-submerged lip seal and mechanical seal for improved reliability.
  • High-strength engineering plastic pump body for added durability.
Model RH-4037
Power 750W
1HP
Voltage 220-240V
Frequency 50Hz
Max. Flow 12500L/h
12.5m³/h
Min.Head 0m
Max. head 8.5m
outlet port diameter G1 1/2inch
Speed 2850RPM
Max. liquid temperature 35℃
Max. Ambient temperature 35℃
Working Pressure 0.85Bar
solid passage diameter 5mm
max immersion depth 7m
max dry running time 30seconds
Protection level IPX8
Insulation Class B class
Pump housing material PP
Motor housing material 409#Stainless steel
Mechanical seal material Ceramic and graphite
Motor protection 125℃
Coil winding material copper winding
Impeller material PA66
shaft material 420#Stainless steel
Net Weight 5Kg
Grose Weight 5.4Kg
packaging color box
Accessories Adaptor*1, manual*1
