Model : RH-4033 (NA)
Model | RH-4033 |
Power | 2 HP |
Voltage | 220 V |
Frequency | 50 Hz |
Min.Flow | 2 m³/h |
Max. Flow | 9.2 m³/h |
Min.Head | 0.5 m |
Max. head | 48 m |

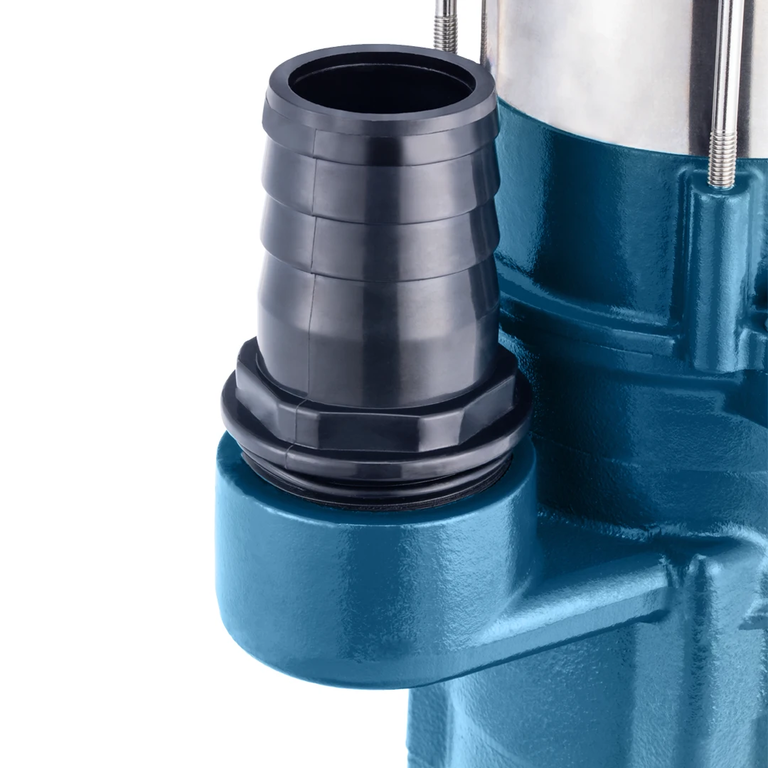

outlet port diameter | 2 inch |
Speed | 2850 RPM |
Max. liquid temperature | 0-35 ℃ |
Max. Ambient temperature | 0-40 ℃ |
Working Pressure | 0-4.8 Bar |
solid passage diameter | 4 mm |
max immersion depth | 5 m |
max dry running tim | 10 seconds |
Protection level | IP68 |
Insulation Class | B |
Pump housing material | CAST IRON |
Motor housing material | S/S 201 |
Mechanical seal material | SIC-SIC/Ceramic-Graphite |
Motor protection | WITH |
Coil winding material | COPPER |
Impeller material | PPO |
shaft material | 316+45 |
Weight | 23 Kg |
Supplied In | honeycomb carton |
