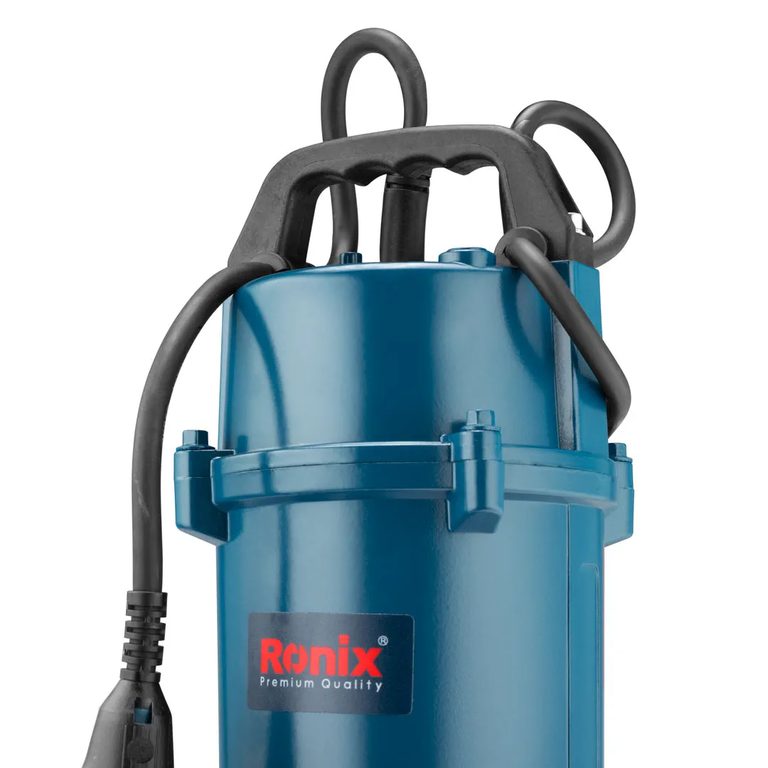

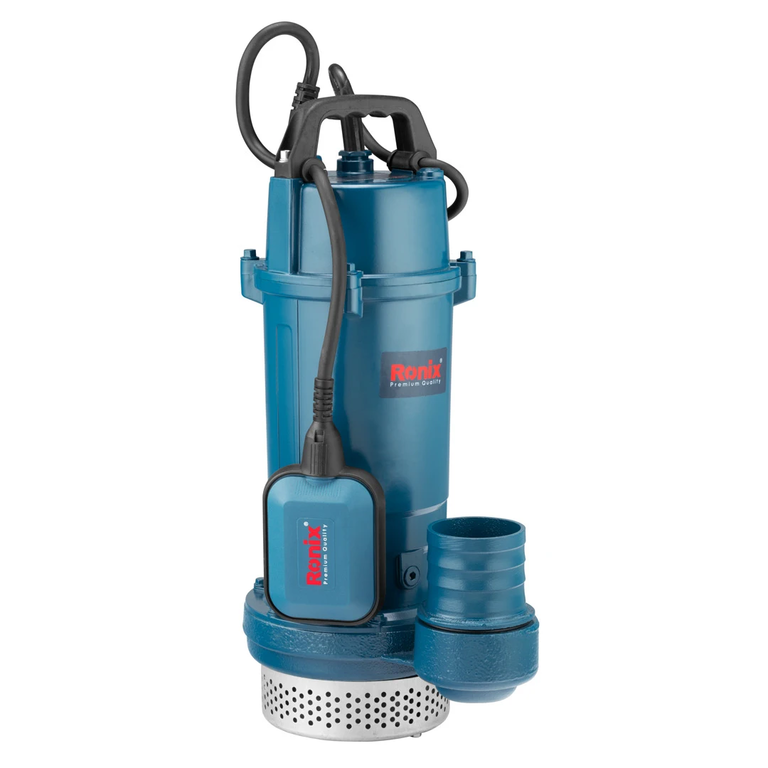

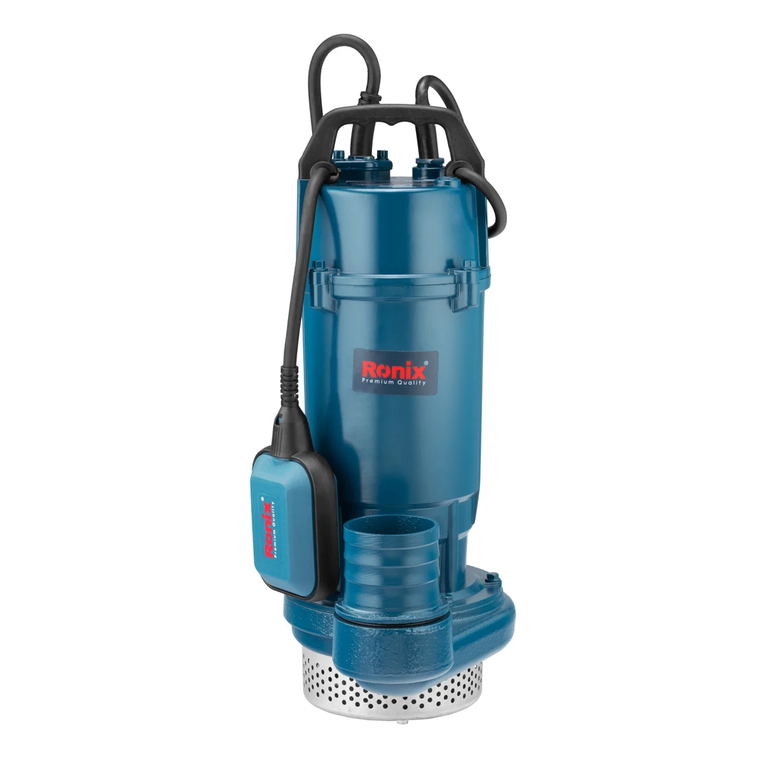

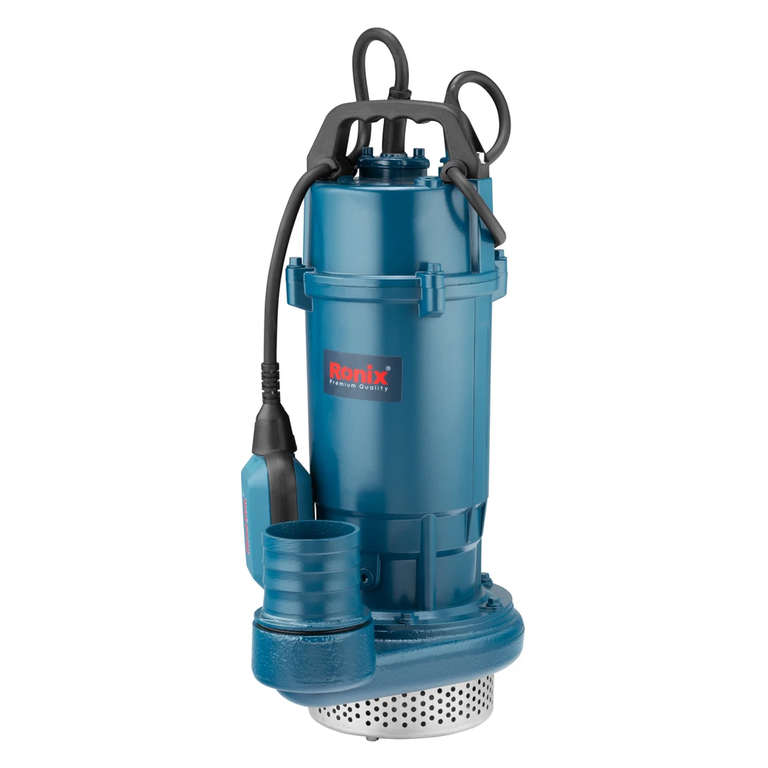

Submersible Pump 1.5 hp
Model : RH-4035
Rating: 0
Submersible Pump 1.5 hp-1
Submersible Pump 1.5 hp-1

Model : RH-4035 (NA)

Submersible Pump 1.5 hp

Bulk Order
Designed to be immersed in water for lifting and draining.
Suitable for clean water, free of solids, abrasives, and impurities. The liquids should also be non-viscous, non-aggressive, non-crystallized, and similar to water in physical and chemical properties.
Ideal for domestic use, drainage, or lifting water from tanks, rivers, pools, or for irrigating gardens and allotments.

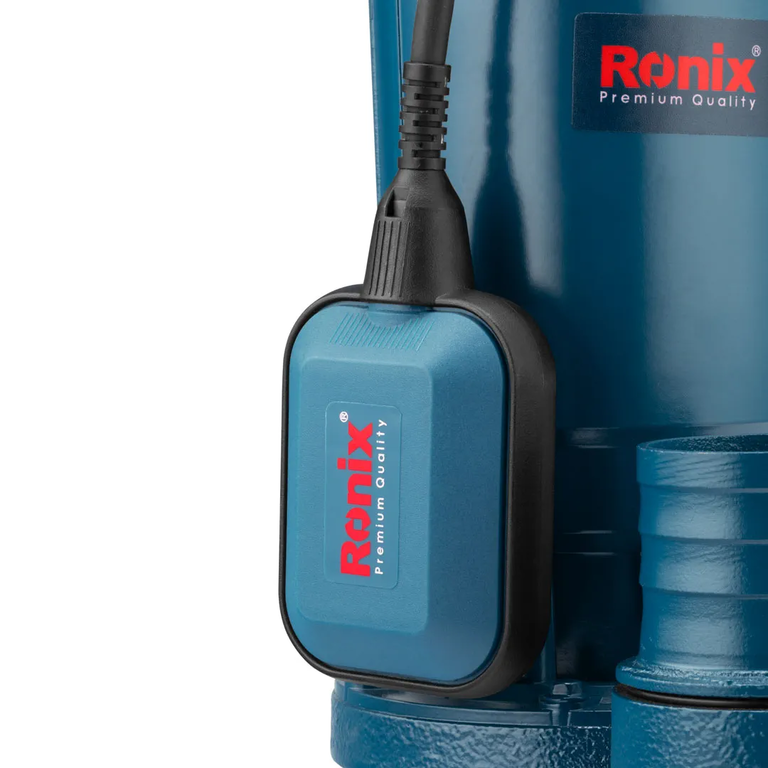

Equipped with a float switch that automatically controls the water level and pump operation.
For motor protection, it features an IP68 protection level, a thermal protector, and Class B insulation to ensure long life.
Utilizes a ceramic/graphite mechanical seal, an aluminum impeller, and a cast iron pump housing for increased efficiency. The motor duty cycle type S1 also contributes to the pump's overall durability
The RH-4035 tackles a variety of tasks with its impressive flow rate, ranging from efficiently draining flooded basements, ponds, and pools (up to 28 cubic meters per hour) to effectively transferring large volumes of clean water from tanks, rivers, or wells (minimum flow rate of 5 cubic meters per hour). It also has a minimum head of 2.5 meters, making it suitable for irrigation tasks. This versatile pump features a built-in float switch that automatically manages water levels and pump operation, safeguarding users and optimal efficiency. Additionally, the RH-4035 features dry run protection, allowing it to withstand accidental dry running for up to 10 seconds, providing peace of mind during operation.
Model RH-4035
Power 1.5hp
Voltage 220V
Frequency 50Hz
Min.Flow 5m³/h
Max. Flow 28m³/h
Min.Head 2.5m
Max. head 18m

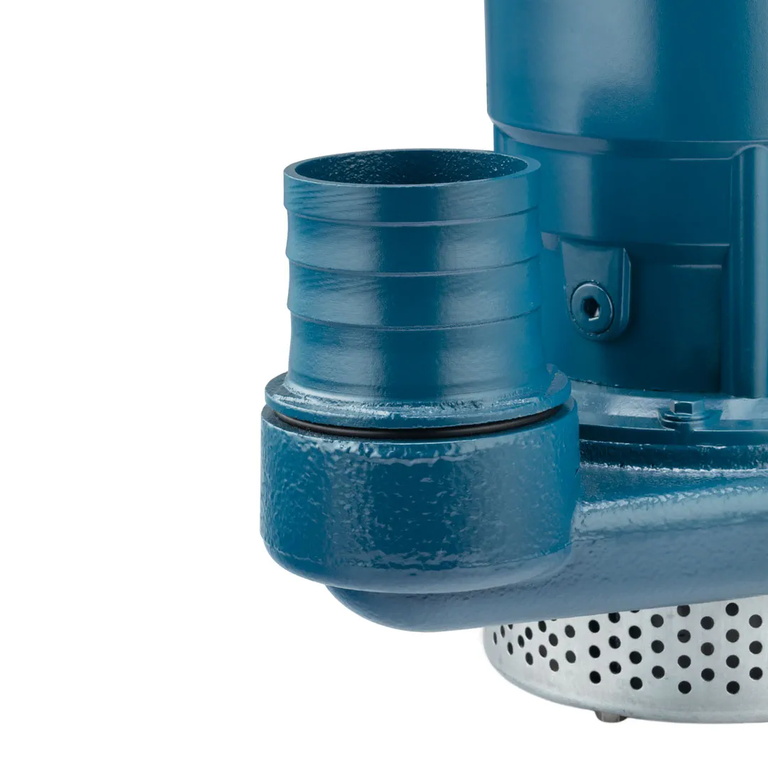

Inlet/outlet port diameter 2 1/2”
Speed 2850RPM
Max. liquid temperature ℃0-35
Max. Ambient temperature ℃0-40
Working Pressure 0-1.8BAR
solid passage diameter 6mm
max immersion depth 5m
Protection level IP68
max dry running time 10Sec
Insulation Class B
Pump housing material CAST IRON
Motor housing material ALUMINUM
Mechanical seal material Ceramic-Graphite
Coil winding material COPPER
Impeller material ALUMINIUM
shaft material 316+45
Weight 13.5kg
Supplied in honeycomb carton
Downloads & Resources
Take Control of Your Clean Water and Power Through Pumping Tasks with the RH-4035 Submersible Pump.
The RH-4035 Submersible Pump is a heavy-duty solution for efficiently handling your clean water needs. This 1.5-horsepower pump is submersible, allowing for complete underwater operation, and ideal for various water lifting and draining tasks.
The RH-4035 is a submersible pump, designed to be completely immersed in water for efficient lifting and draining tasks. The motor is equipped with a thermal protector and insulation class B for extended lifespan. The S1 motor duty cycle ensures continuous operation for maximum productivity.
This pump is suitable for clean water applications, free from solids, abrasives, and harsh chemicals. It efficiently handles liquids similar to water in physical and chemical properties.
The RH-4035 boasts a robust cast iron pump housing for exceptional durability even in demanding environments. The compact design allows for easy portability and maneuverability in tight spaces.
Safety is prioritized with the RH-4035. The pump features an automatic float switch that controls water levels and pump operation, preventing damage and ensuring user safety. Additionally, the IP68 protection level safeguards the pump against water ingress, and the ceramic/graphite mechanical seal minimizes leakage.
The RH-4035 comes packaged in a honeycomb carton for secure transportation. While specific accessories may not be included, the pump is designed to work with standard 2 1/2" diameter hoses for various water transfer applications.
RH-4035 Submersible Pump: Tackle demanding clean water tasks with this powerful and efficient submersible pump
