SDS Max 3-Cutter Hammer Drill Bit 15*540- German
Model : RH-59254
: 0
SDS Max 3-Cutter Hammer Drill Bit 15*540- German
SDS Max 3-Cutter Hammer Drill Bit 15*540- German
SDS Max 3-Cutter Hammer Drill Bit 15*540- German
SDS Max 3-Cutter Hammer Drill Bit 15*540- German
SDS Max 3-Cutter Hammer Drill Bit 15*540- German
SDS Max 3-Cutter Hammer Drill Bit 15*540- German

Model : RH-59254 (NA)

SDS Max 3-Cutter Hammer Drill Bit 15*540- German

Bulk Order
  • The Trijet Ultimate SDS-max hammer drill bit is even more robust and faster than its predecessor.
  • Pronounced, patented double centring tip ensures simple, precise positioning
  • In total, the Trijet Ultimate therefore is 4 x more robust as well as 10% quicker in concrete and 35% quicker in reinforcement, resulting in a very long service life with up to 1.500 holes drilled.
  • Cutting edges of equal height with reverse curvature, the newly developed cutting geometry with reinforcement protection chamfers, reduced frontal surfaces and the optimised helix guarantee even better performance, making the Trijet Ultimate our best hammer drill bit.
Designed for professional drilling applications, the RH-59254 offers a strong steel construction, a heat-resistant Tungsten Carbide tip, and hardness above 48 HRC for reliable durability. Its 3-flute design and optimized geometry support better drilling control, while the clip packaging makes it easy to store and carry. With a service life of up to 1500 holes, it is a dependable solution for demanding work.
Model RH-59254
size 15 mm
No of Flute 3
Overall Length 540 mm
Working Length 400 mm
Material Steel
Tip Material Tungsten Carbide
Surface Finish Shotpeened
Hardness >48 HRC
Temprature Strength 1200 °C
Weight 547.6 gr
Packaging Clip
Downloads & Resources
To discover more about the RH-59254, take a closer look at its structure and performance features.
The RH-59254 is built with a robust steel body and a Tungsten Carbide tip that can withstand temperatures up to 1200°C. Its shot-peened surface improves wear resistance, while the hardness level above 48 HRC adds strength during heavy-duty use. The 3-flute construction, combined with an optimized helix and refined cutting geometry, helps improve drilling efficiency.
This drill bit is developed for concrete and reinforced concrete. It performs 10% faster in concrete and 35% faster in reinforcement, giving users efficient results and a service life of up to 1500 holes. Its design helps maintain stable performance even in tough drilling conditions.
With a 15mm diameter, 540mm overall length, and 400mm working length, the RH-59254 is suitable for deep and precise drilling tasks.
Weighing 547.6g, this drill bit is made from durable steel for a strong and balanced structure. The patented double-centering tip helps ensure accurate positioning and reduces slipping at the beginning of drilling.

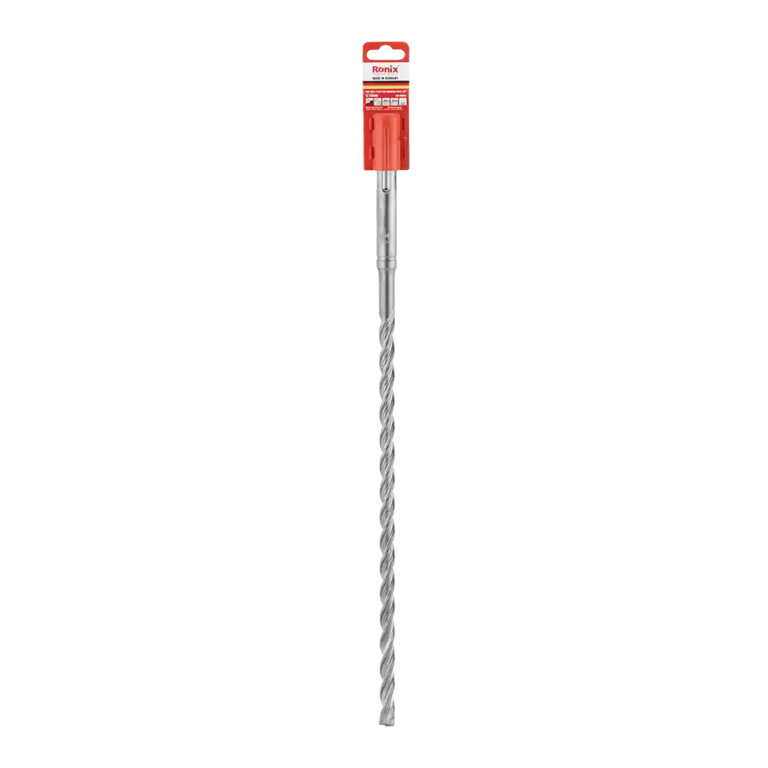

The RH-59254 comes in a clip-style package that keeps the drill bit secure, organized, and easy to transport.
