(145mmx175mmx178mm)Pressure Control
Model : RH-4047
: 0

similar model

RH-4047 RH-4045 RH-4046

Model : RH-4047 (NA)

(145mmx175mmx178mm)Pressure Control

Bulk Order

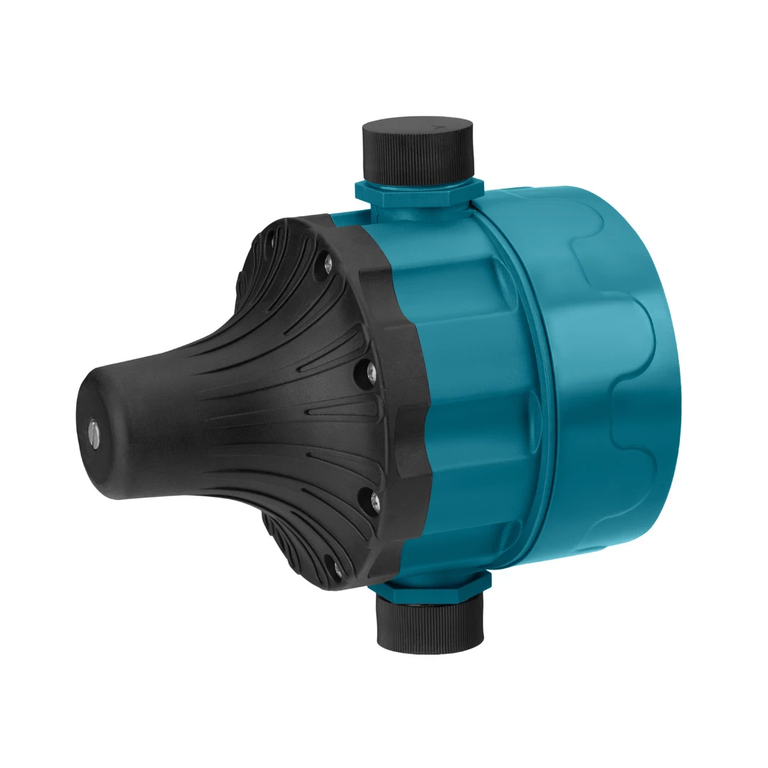

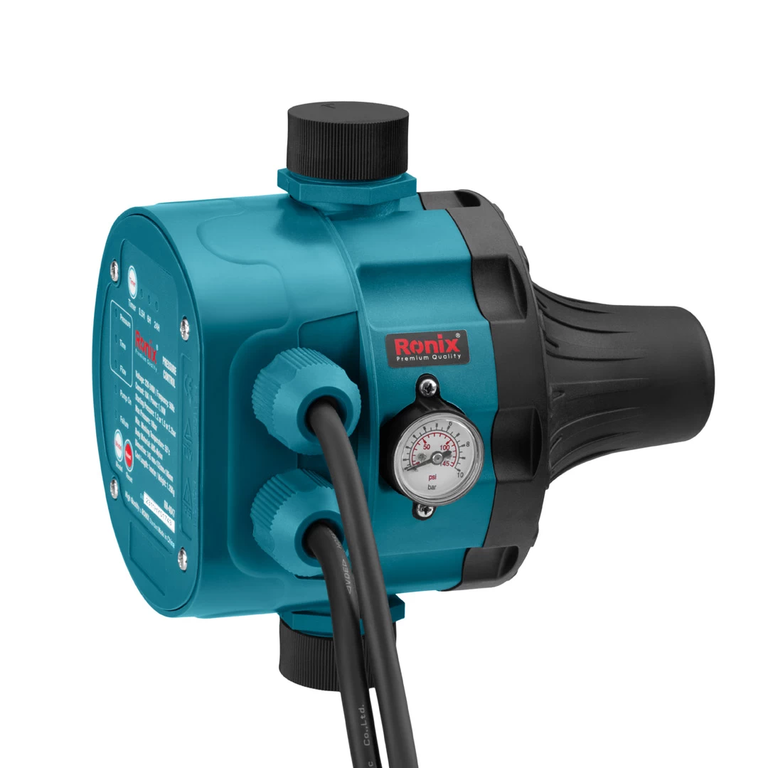

  • The pressure controller automatically starts and stops the water pump when any tap or valve in the system is opened or closed It completely replaces traditional pump control systems, including the pressure switch, pressure tank, check valve, and more
  • It is compatible with all household water systems
  • The reset button allows for easy restarting after the dry running protection is triggered
  • This electronic water pump automatic pressure control switch is made of ABS + Nylon material, ensuring durability and a long service life
The RH-4047 makes controlling your household water pump simple and reliable. It automatically starts the pump when a tap or valve is opened and stops it when closed; no extra pressure switches, tanks, or valves needed. Built from strong ABS + nylon for long-lasting use, it features dry-running protection and a reset button for easy restart. Adjustable starting pressure (1.2–2.5 Bar) ensures it fits your system’s needs.
Model RH-4047
Voltage 220-240 V
Frequency 50 Hz
Current 10 A
Power 1.1 KW
Starting Pressure 1.5 Bar
Adjustable Pressure range 1.2-2.5 Bar
Max. Working Pressure 10 Bar
Max. Working Temperature 55 °C
Body Material ABS + Nylon
Dimensions 145x175x178 mm
Power Cable Length (with Euro Plug) 1 m
Motor Cable Length 30 cm
Net Weight 1.08 Kg
Gross weight 1.29 Kg
packaging Color Box
Downloads & Resources
The Ronix RH-4047 is a compact, durable solution for managing your household water system. Perfect for all household water systems, the RH-4047 makes pump control smarter, safer, and easier. Read on to learn more.
The RH-4047 features a modern, compact design measuring 145 × 175 × 178 mm, making it easy to install in any household water system. Its smart layout ensures convenient handling and operation, while its lightweight structure adds to its versatility.
Constructed from a combination of ABS and durable nylon, this pressure controller is built to withstand wear, temperature fluctuations, and long-term use. The high-quality materials guarantee a reliable and long-lasting performance.
This controller automatically starts and stops your water pump whenever a tap or valve is opened or closed, eliminating the need for traditional pump control components such as pressure switches, tanks, or check valves. It offers an adjustable starting pressure range of 1.2–2.5 Bar and can handle a maximum working pressure of 10 Bar at up to 55°C.
Equipped with dry-running protection, the RH-4047 safeguards your pump against damage when the water supply is low. The included reset button allows for quick restarts after the safety feature is triggered, ensuring continuous operation.

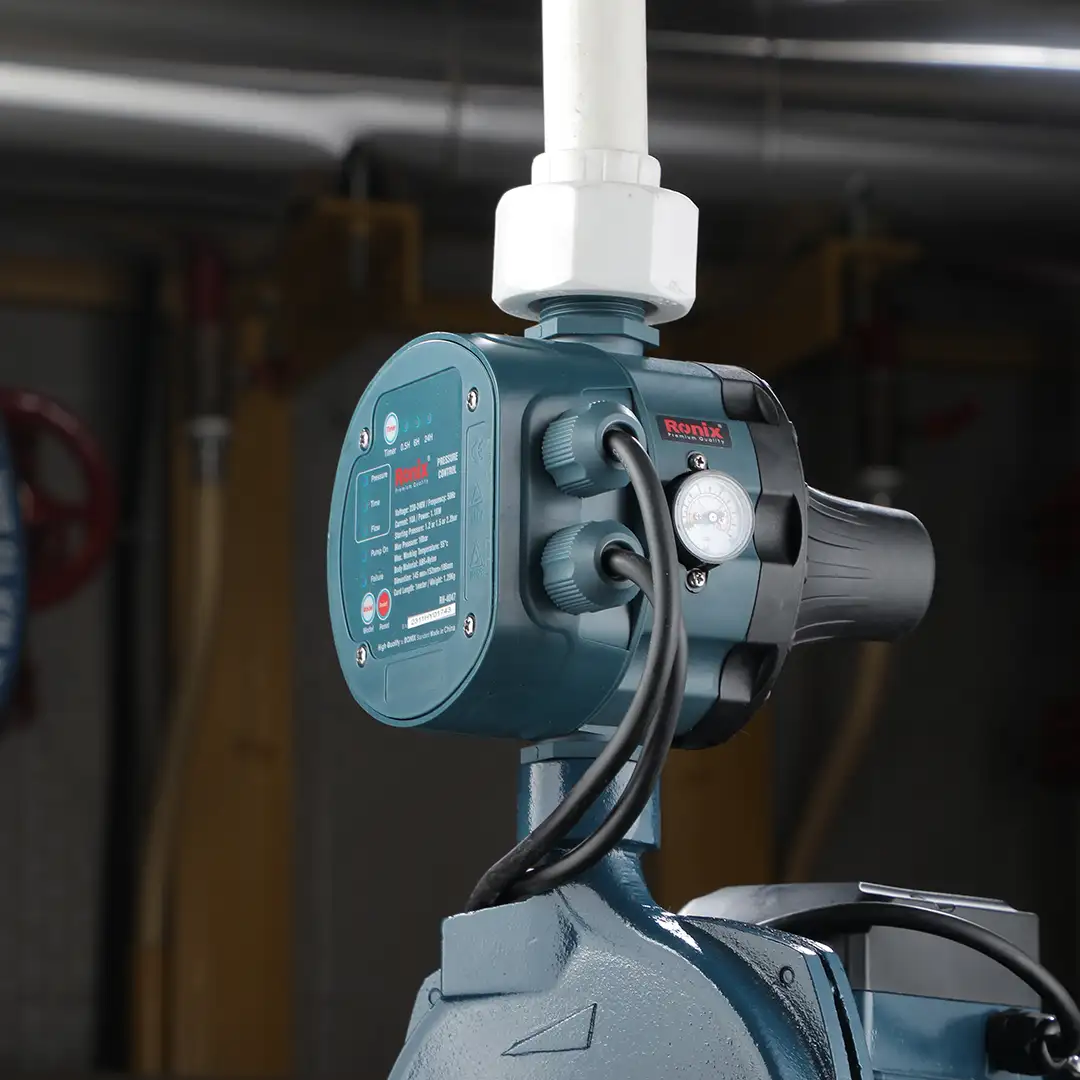

Ideal for all household water systems, the RH-4047 provides a reliable, space-saving solution for automatic pump control, whether for homes, gardens, or small-scale water distribution systems.
The RH-4047 comes neatly packaged in a color box, ready for installation.
