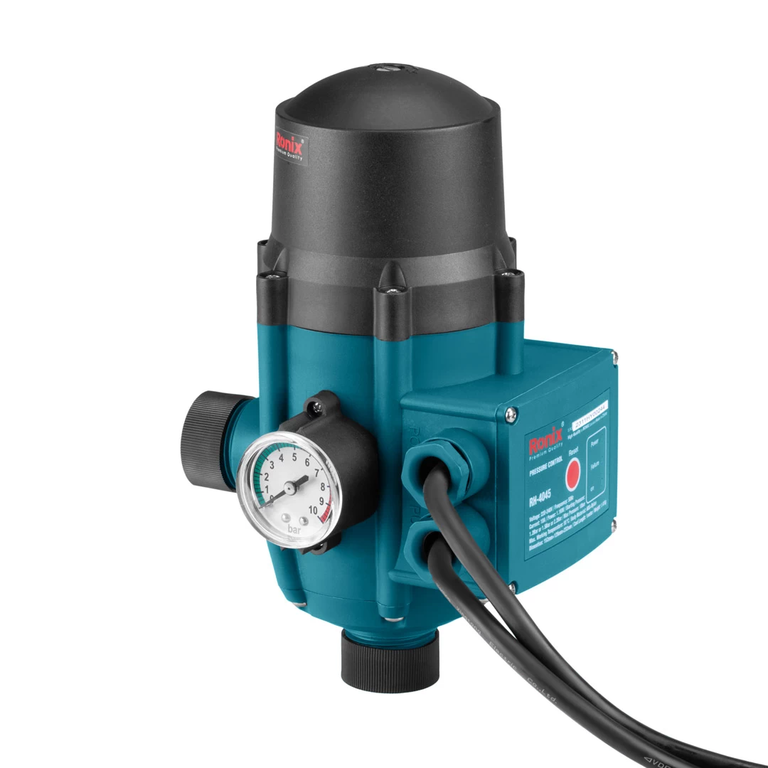

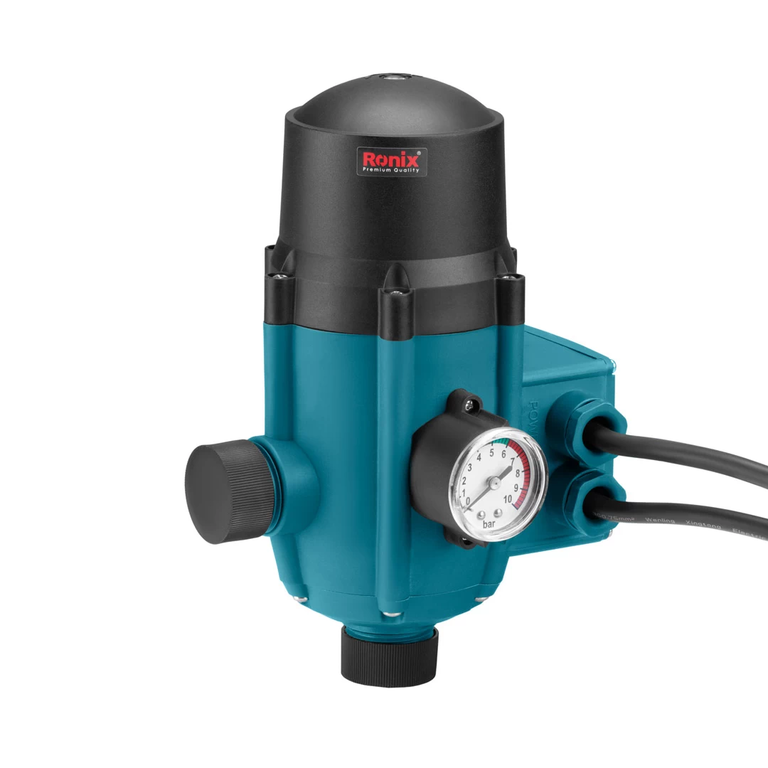

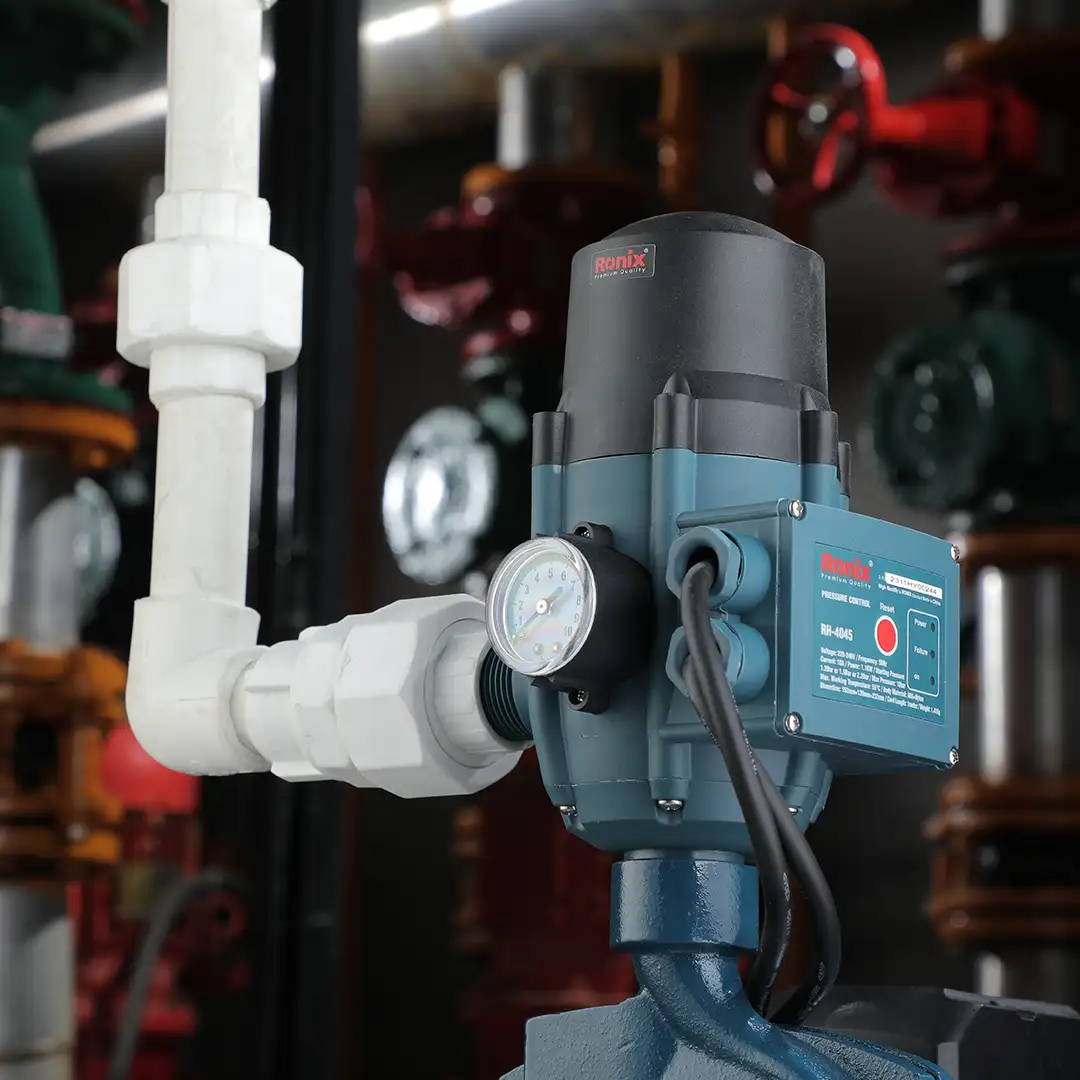

Pressure Control (120mmx150mmx225mm)
Model : RH-4045
: 0
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)
Pressure Control (120mmx150mmx225mm)

similar model

RH-4045 RH-4046 RH-4047

Model : RH-4045 (NA)

Pressure Control (120mmx150mmx225mm)

Bulk Order
  • The pressure controller automatically starts and stops the water pump when any tap or valve in the system is opened or closed It completely replaces traditional pump control systems, including the pressure switch, pressure tank, check valve, and more
  • It is suitable for all household water systems

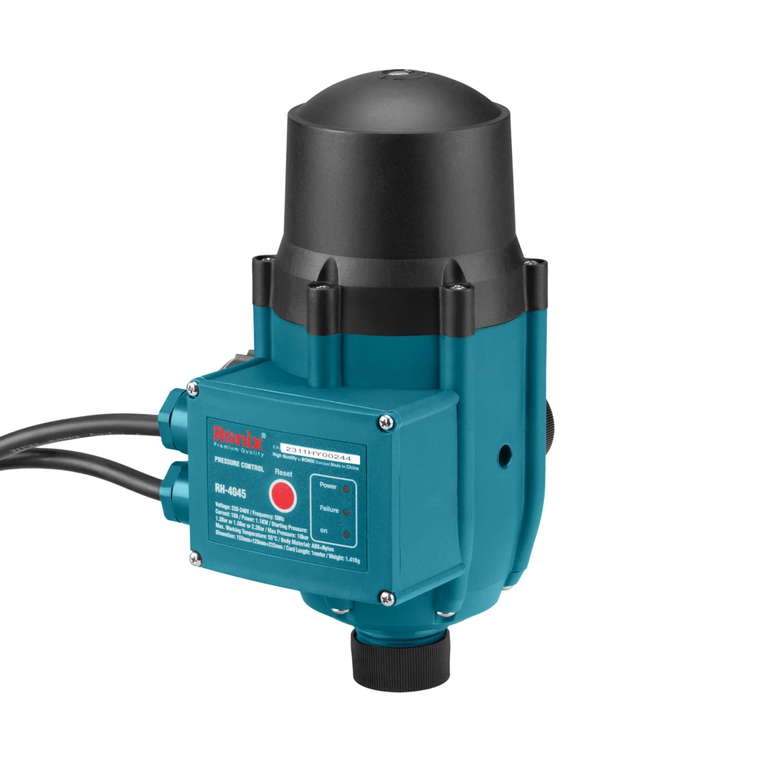

  • A reset button is included for restarting after dry running protection is triggered
  • This electronic water pump automatic pressure control switch is made of durable nylon material, ensuring a long service life
The RH-4045 is a smart and easy way to control your household water pump. It automatically turns the pump on when you open a tap and off when you close it. No need for a pressure switch, tank, or extra valves.

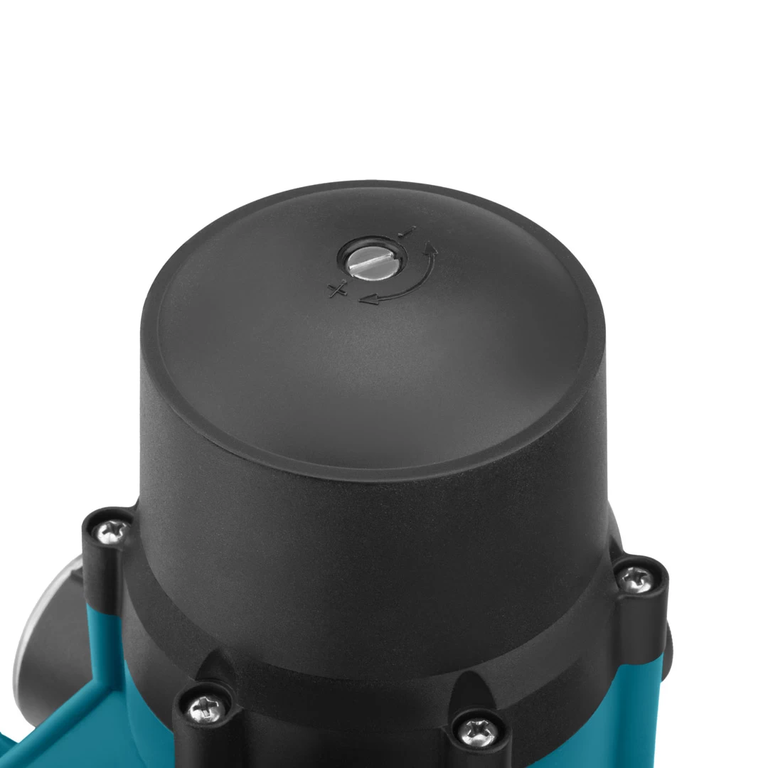

Made from strong nylon for long-lasting use, it also has dry-running protection to prevent pump damage, plus a reset button to restart quickly. The starting pressure can be adjusted from 1.2 to 2.5 Bar, making it suitable for different needs.

Model RH-4045
Voltage 220-240 V
Frequency 50 Hz
Current 10 A
Power 1.1 KW
Starting Pressure 1.5 Bar
Adjustable Pressure range 1.2-2.5 Bar
Max. Working Pressure 10 Bar
Max. Working Temperature 55 °C
Body Material Nylon
Dimensions 120x150x225 mm
Power Cable Length (with Euro Plug) 1 m
Motor Cable Length 30 cm
Net Weight 1.25 Kg
Gross weight 1.41 Kg
packaging Color Box
Downloads & Resources
The Ronix RH-4045 is an easy and effective way to control your household water pump. It’s built to last and makes your water system simple to use. Read on to learn more.

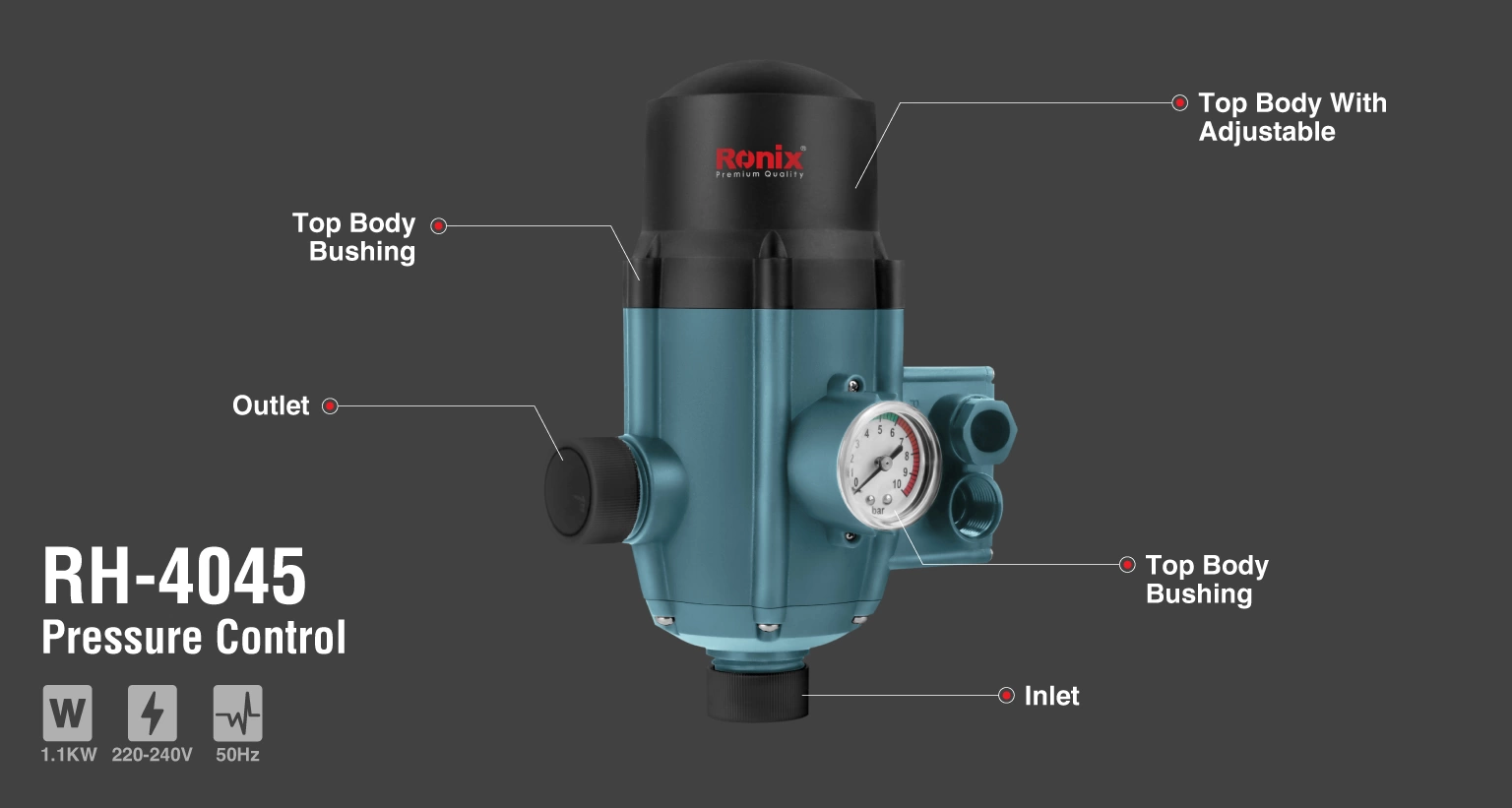

The RH-4045 features a compact, user-friendly design that easily integrates into any household water system. Its 120 × 150 × 225 mm size makes installation simple, while the ergonomic shape allows for easy handling and operation. It includes a 1-meter power cable with a Euro plug and a 30 cm motor cable for quick and convenient setup.
Made from high-quality, durable nylon, the RH-4045 is built to last. This strong yet lightweight material resists wear, corrosion, and temperature changes, ensuring reliable performance over time.
The RH-4045 automatically starts and stops your pump when any tap or valve is opened or closed, replacing traditional control parts like pressure switches and tanks. It features adjustable starting pressure (1.2–2.5 Bar) and can handle up to 10 Bar working pressure, with a maximum operating temperature of 55°C.
For added protection, the unit has built-in dry-running protection to prevent pump damage when water supply is low. A convenient reset button allows for quick restarts after safety shutdowns.
Ideal for all household water systems, the RH-4045 offers a practical, space-saving solution for automatic pump control in homes, gardens, and small-scale water distribution setups.
Packaged in an attractive color box, the RH-4045 comes ready for installation.
