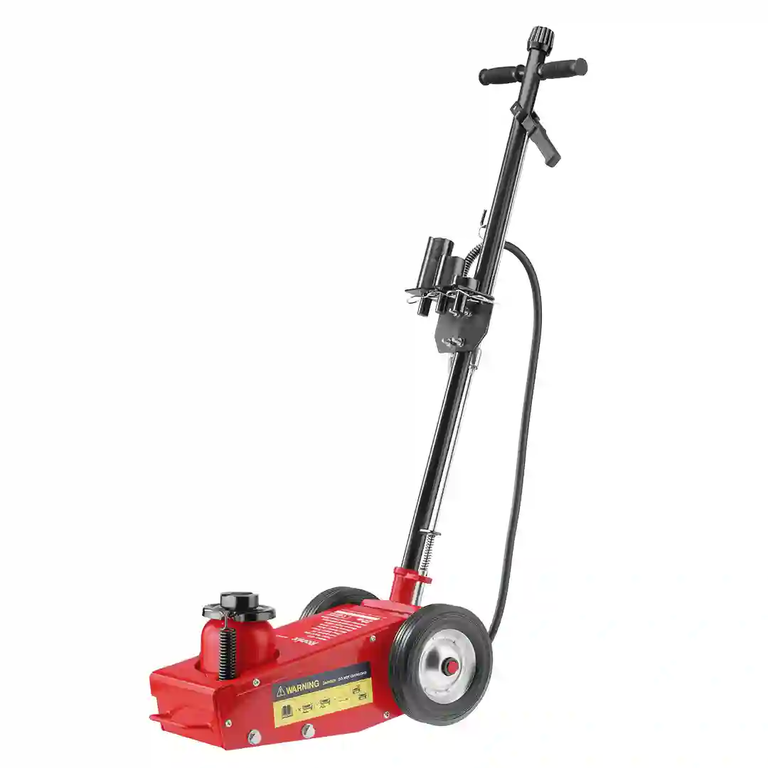

Pneumatic Jack 22 Ton
Model : RH-4949
: 0
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton
Pneumatic Jack 22 Ton

Model : RH-4949 (NA)

Pneumatic Jack 22 Ton

Barcode For Inner Carton : 6942318614293

Bulk Order
  • Constructed from high-grade steel and built to exacting standards for quality and durability
  • Lead-free paint finish applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, reducing wear and extending service life

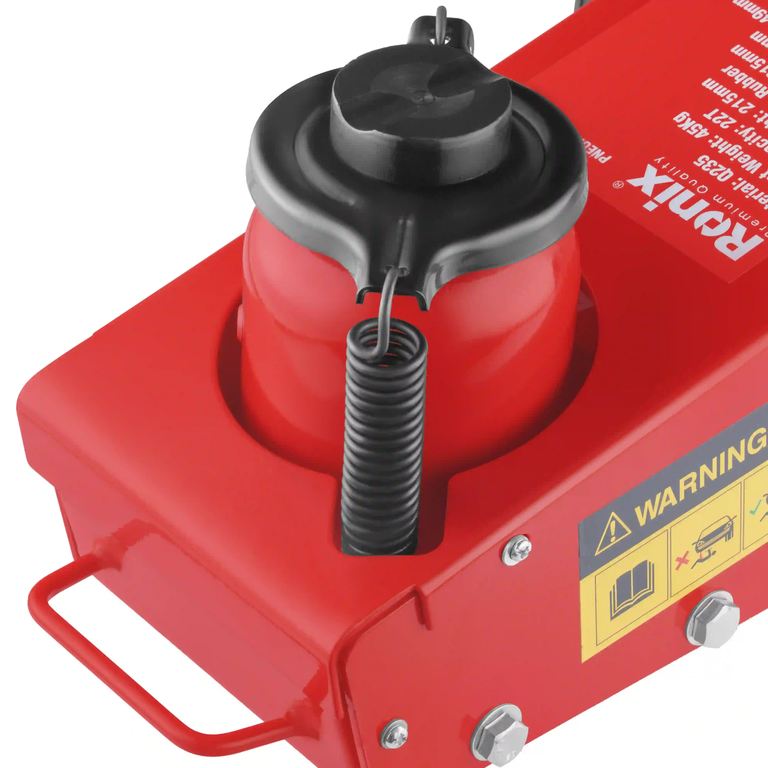

  • Telescopic cylinders ensure a fast and safe 1-stage lift
  • Compact and short chassis for even the lowest vehicles
  • Ergonomic handle with push buttons

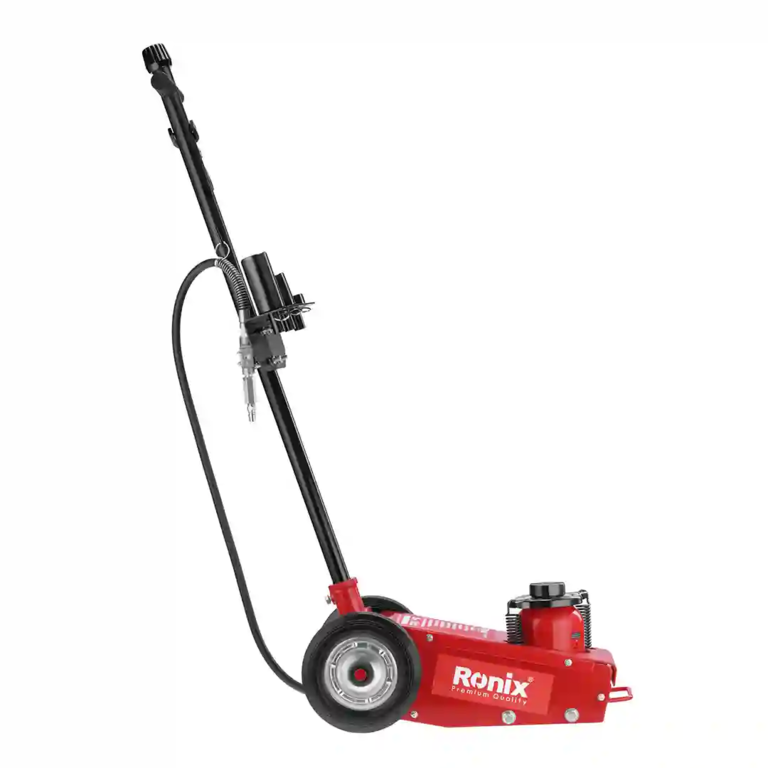

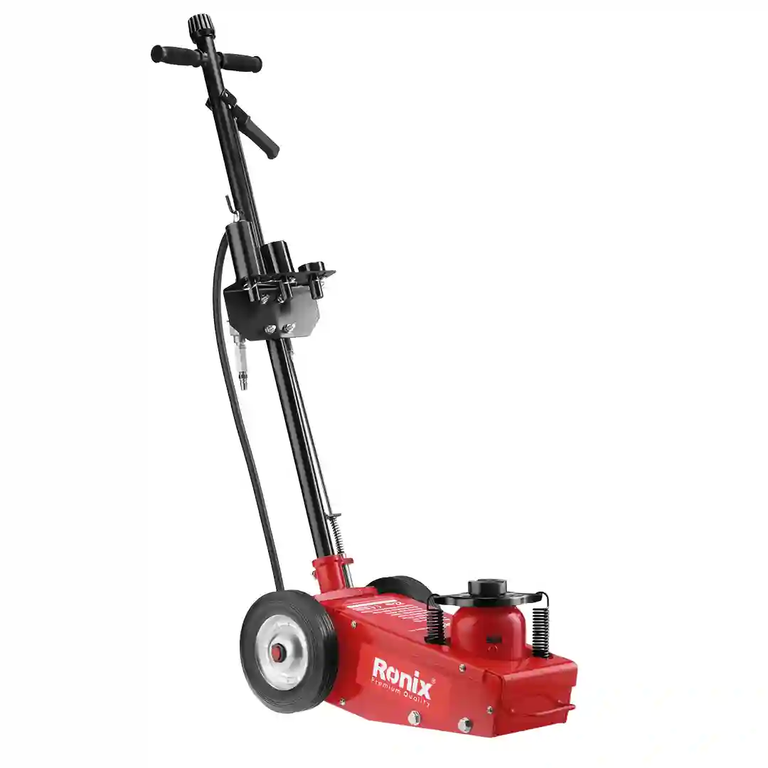

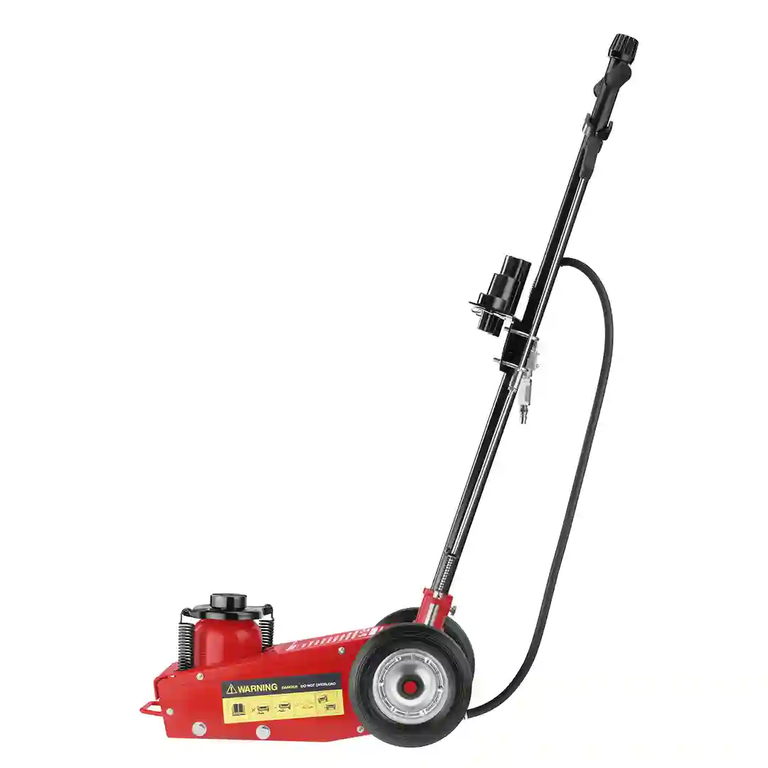

The RH-4949 pneumatic jack is a versatile lifting solution designed for heavy-duty applications. With its impressive 22-ton (22,000 kg) load capacity and a lifting height of 215mm, this jack effortlessly handles even the most demanding tasks.
Model RH-4949
Load Capacity 22000 Kg
22 Ton
Maximum height 430 mm
Minimum height 215 mm
Lifting Height 215 mm
Dimensions 555*315*250 mm
Material Q235
Wheel material Rubber
Wheel Dimensions Ø200*49 mm
Net Weight 45 Kg
Gross weight 47 Kg
Supplied In Carton
Downloads & Resources
Ronix-product-detail-10521-1
The RH-4949 pneumatic jack combines power, precision, and durability in one exceptional package. Its high-quality, large-diameter hydraulic steel cylinder unit operates at lower oil pressures, which reduces wear and extends service life. Continue reading to find out more about this tool in detail.
The RH-4949 pneumatic jack boasts an impressive load capacity of 22 tons (22,000 kg), making it suitable for heavy-duty applications. Its maximum height reaches 430mm while offering a minimum height of 215mm for versatile lifting options. The effective lifting height of 215mm ensures that users can easily lift vehicles or equipment with minimal effort.
Weighing in at a net weight of 45kg and a gross weight of 47kg, the RH-4949 is designed for strength without compromising on portability. Its wheel dimensions of Ø200*49mm allow for easy movement across various surfaces. The high-quality large diameter hydraulic steel cylinder unit requires lower oil pressure to raise loads efficiently, which helps reduce wear over time and extends the service life of the tool. The compact chassis design accommodates even the lowest vehicles, while the ergonomic handle with push buttons ensures user-friendly operation. Additionally, telescopic cylinders provide a swift and secure one-stage lift.
Constructed from Q235 high-grade steel, the RH-4949 pneumatic jack is built for the toughest liftings while maintaining its structural integrity. The wheels are made from durable rubber to ensure smooth operation on different surfaces. A lead-free paint finish is applied after a thorough chemical wash to guarantee a long-lasting appearance that resists rust. This paint is also oil, grease, and dirt-resistant, allowing for easy cleanup after use.

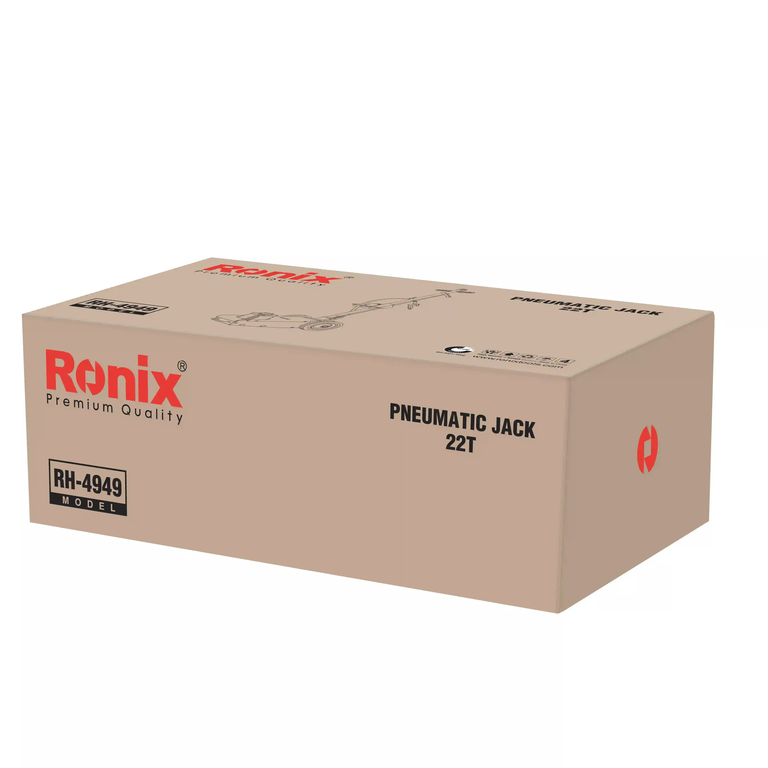

The RH-4949 pneumatic jack is securely packaged in a carton, ensuring it arrives in excellent condition, ready for immediate use. This thoughtful packaging not only protects the product during transit but also highlights its suitability for professional garages, workshops, or industrial settings where reliable tools are essential for heavy vehicle maintenance or repair tasks.
