Model : RH-4309 (NA)

High Pressure Air Grease Injector 45L

Barcode For Inner Carton : 6942318603426

Bulk Order
  • 45-liter high-capacity reservoir
  • 6–8 Bar working pressure
  • Adjustable pressure range of 0–1 MPa
  • 4-meter high-pressure rubber hose
  • Designed for reliable lubrication of machines, systems, and components
  • 50:1 compression ratio

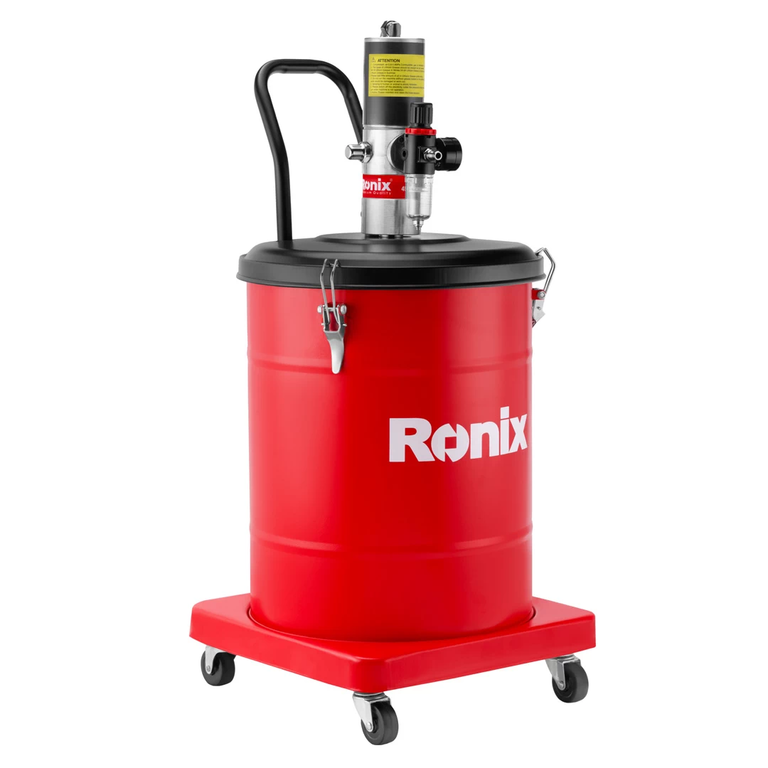

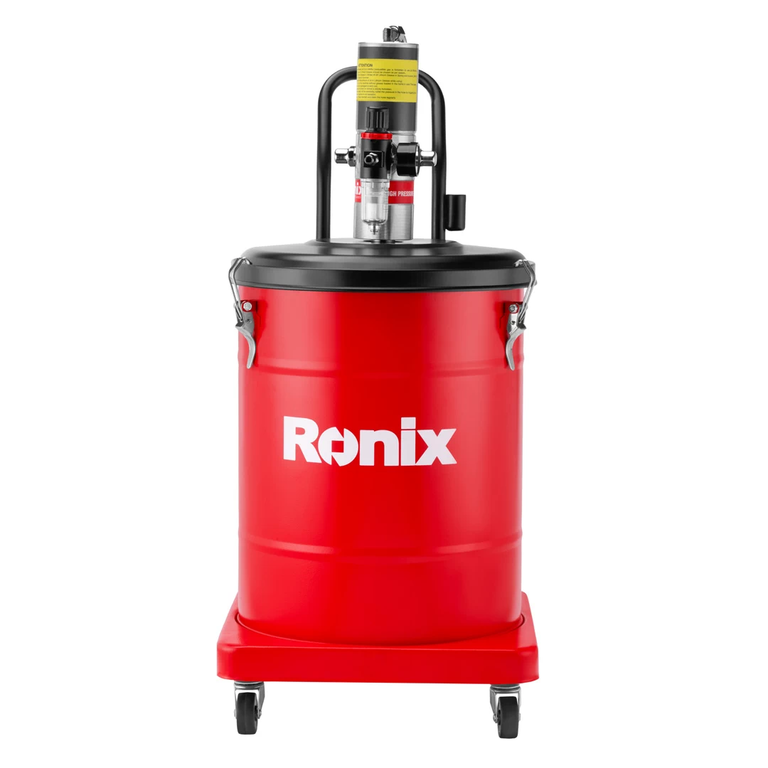

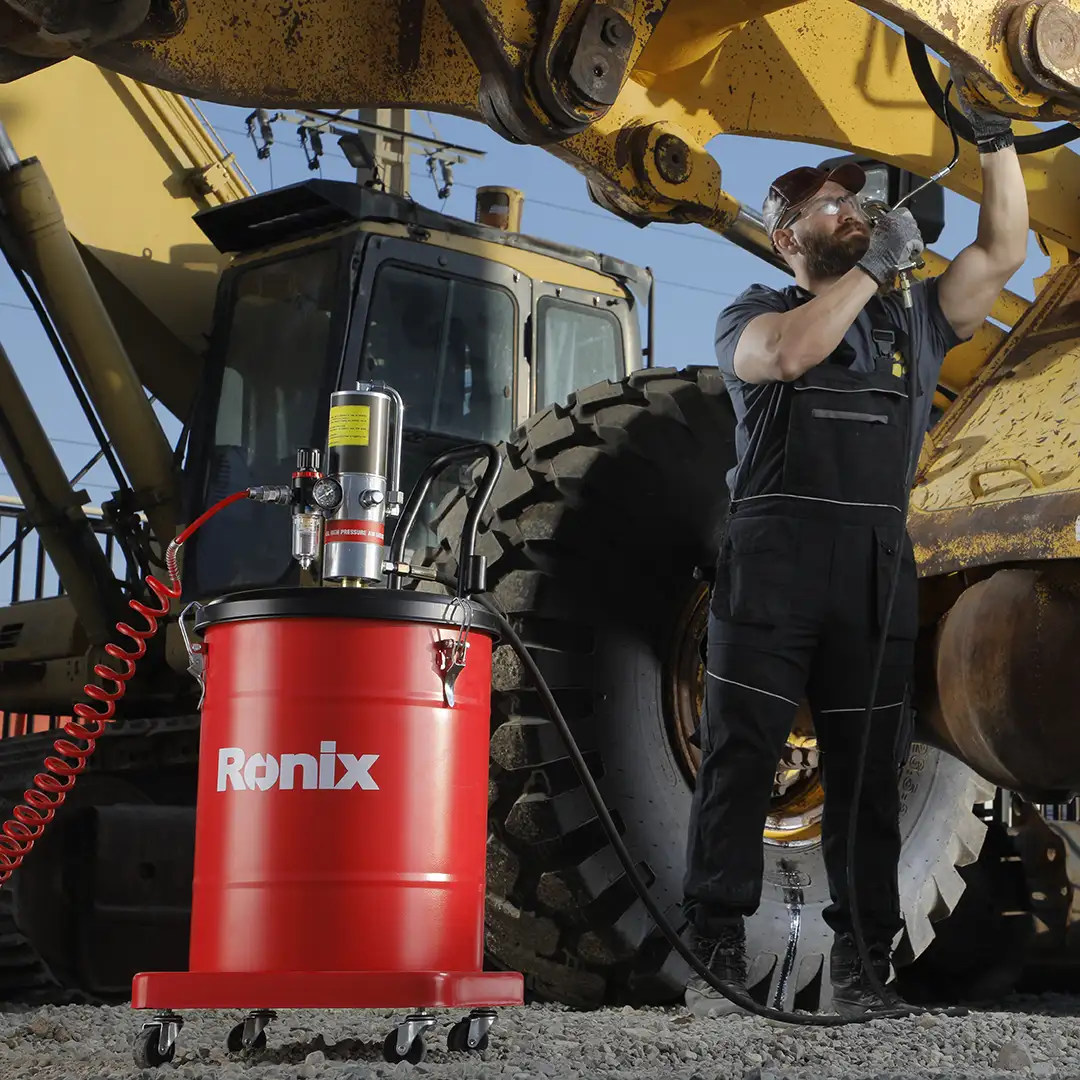

The Ronix RH-4309 Pneumatic Grease Pump is a heavy-duty lubrication tool designed for demanding applications. With a working pressure of 6-8 Bar (87-116 psi) and a 50:1 compression ratio, it efficiently lubricates machines, systems, and components. The pump has a 45-liter capacity ideal for continuous operation, and it also comes with an adjustable pressure gauge (0-1 MPA, 0-150 psi) to ensure precise control. Made from durable steel, the RH-4309 stands 830 mm tall, has a diameter of 355 mm, and weighs 16.5 kg. It includes a 4-meter high-pressure rubber hose for extended reach. The product comes with all essential accessories, including nozzles, hoses, wheels, and a repair kit, all packaged in a color box for convenience.

Model RH-4309
Total height 830 mm
Stand Dimension 430*φ355 mm
Body diameter 355 mm
Capacity 45 L
Max Pressure 400 Bar
5700 Psi
Working Pressure 6-8 Bar
87-116 Psi
pressure gauge graduation unit 0-1 Mpa
0-150 Psi
High-Pressure Rubber Hose Length 4 m
Body Material Steel
Net Weight 14.5 Kg
Total weight 16.5 Kg
packaging Color Box

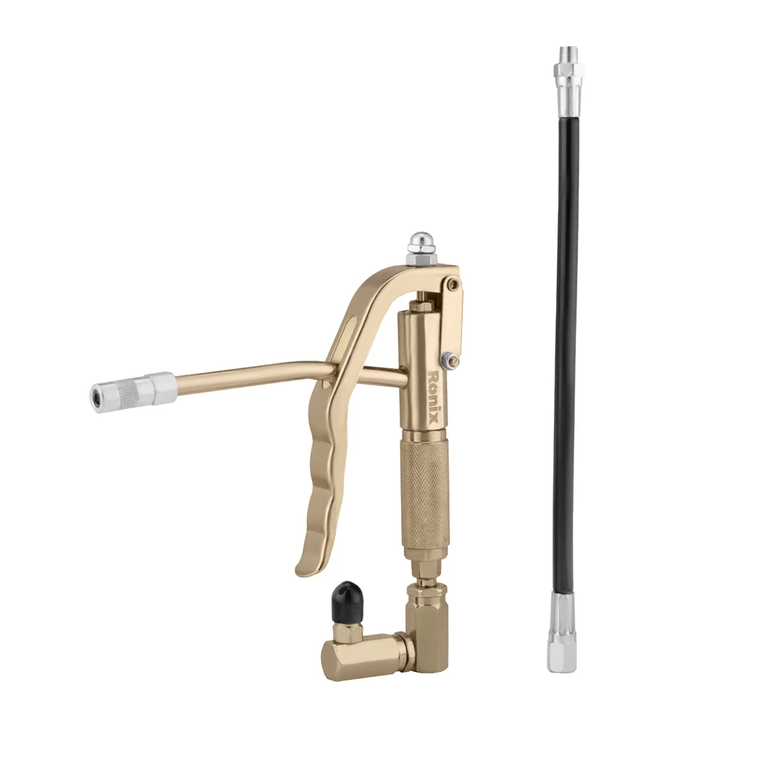

Included 1 pc HYQ-200 with plain-type nozzle, 1 pc air hose (4 m × 6 mm × 16 mm high-pressure rubber hose), 1 pc 30 cm gun hose, 1 pc pointed-type nozzle, 4 pcs wheels, 1 set repair kit
Downloads & Resources
Ronix-product-detail-10521-1

This product has an adjustable pressure gauge (0-1 MPA, 0-150 psi) that allows for precise control, ensuring optimal performance across various lubrication tasks.

This grease pump has a height of 830 mm and a diameter of 355 mm. This product has a total weight of 16.5 kg.

Its body is crafted entirely from steel, built to endure pressure, time, and the rough rhythm of demanding worksites.

The RH-4309 operates as a robust pneumatic grease pump with a working pressure of 6–8 Bar (87–116 psi) and a powerful 50:1 compression ratio. This setup boosts the output to a maximum pressure of 400 Bar (5700 psi), delivering the force needed to lubricate heavy machinery, complex systems, and high-demand components with confidence.

With a spacious 45-liter reservoir, it’s engineered for long, uninterrupted cycles—ideal when the work can’t pause and the machines must keep moving.

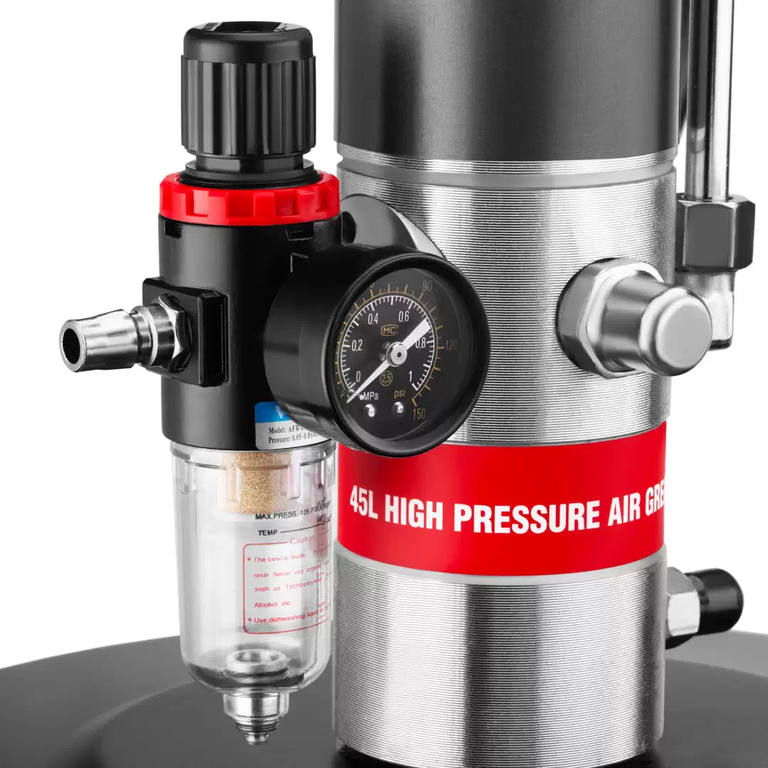

The adjustable pressure gauge ranges from 0–1 MPa (0–150 psi), giving the operator precise control over every task and adapting easily to different lubrication demands.

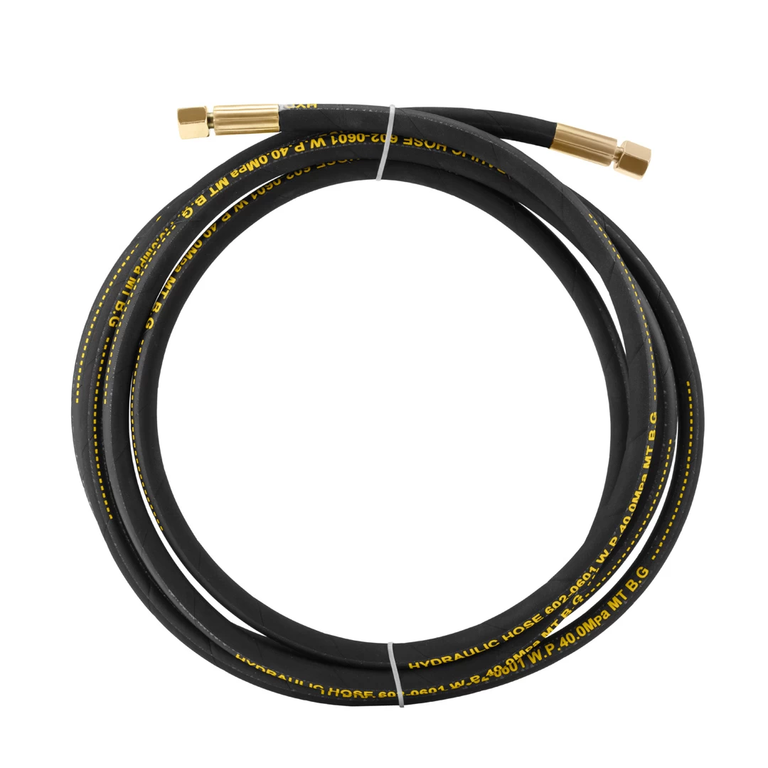

A 4-meter high-pressure rubber hose comes included, offering generous reach so the job flows smoothly even in tight or awkward spaces.

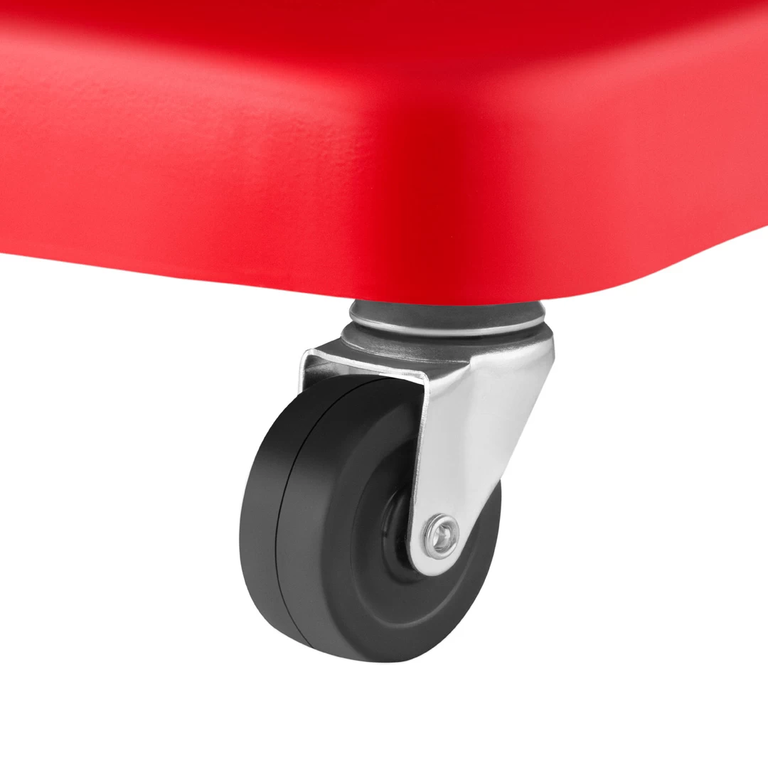

This product is supplied in a color box along with all the essential accessories, including: 1pc HYQ-200 with Plain Type Nozzle, 1pc- Air Hose: 4m x 6mm x16mm high-pressure rubber hose, 1pc 30cm gun hose, 1pc pointed type nozzle, 4pcs wheels, and 1set repair kit.
