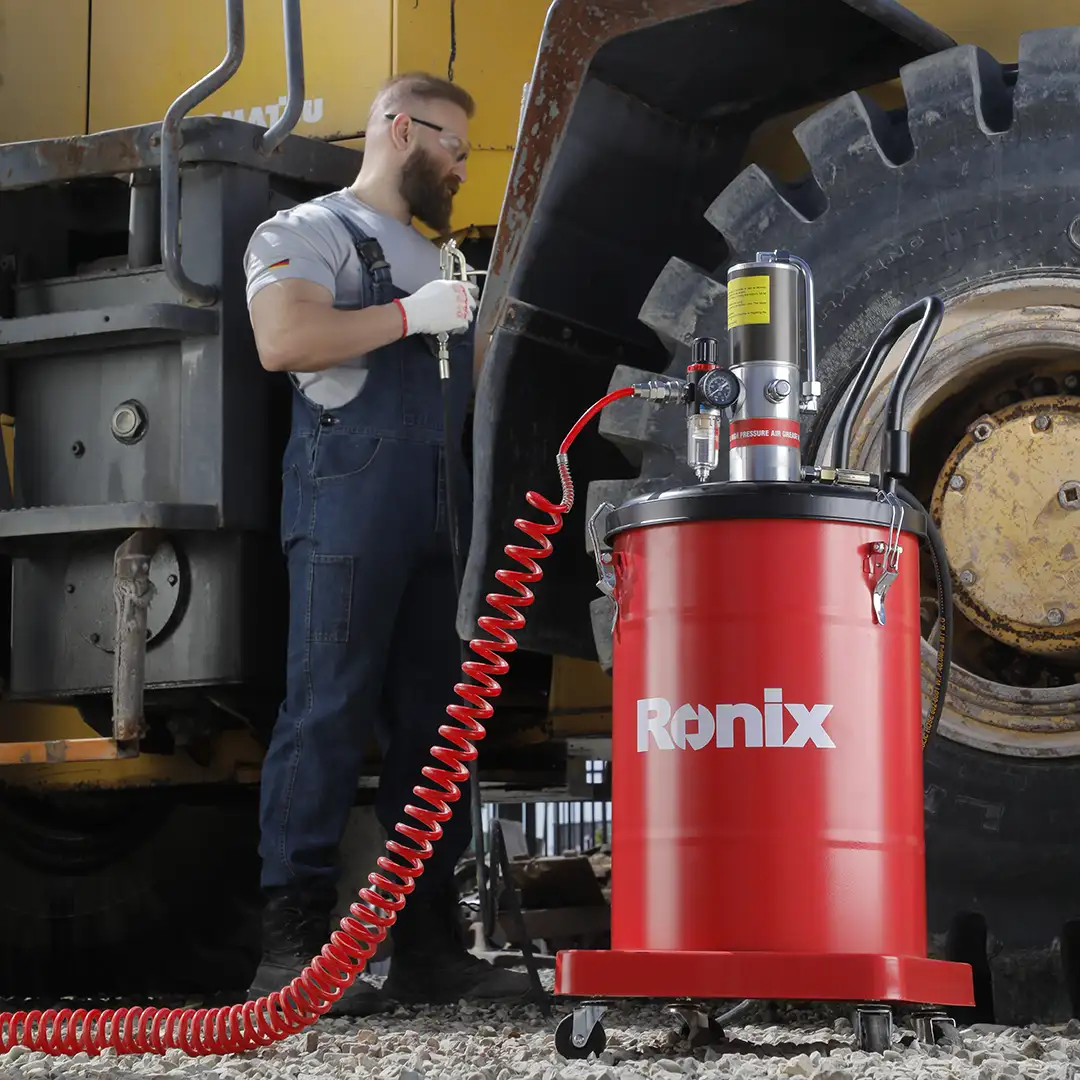

High Pressure Air Grease Injector 30L
Model : RH-4308
: 0
Ronix-product-detail-10519-1
HIGH PRESSURE AIR GREASE INJECTOR 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
HIGH PRESSURE AIR GREASE INJECTOR 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L
High pressure air grease injector 30L

similar model

RH-4308 RH-4307 RH-4309

Model : RH-4308 (NA)

High Pressure Air Grease Injector 30L

Barcode For Inner Carton : 6942318603419

Bulk Order
  • 30-liter high-capacity reservoir
  • 6–8 Bar working pressure
  • Adjustable pressure range of 0–1 MPa
  • 4-meter high-pressure rubber hose
  • Designed for reliable lubrication of machines, systems, and components
  • 50:1 compression ratio

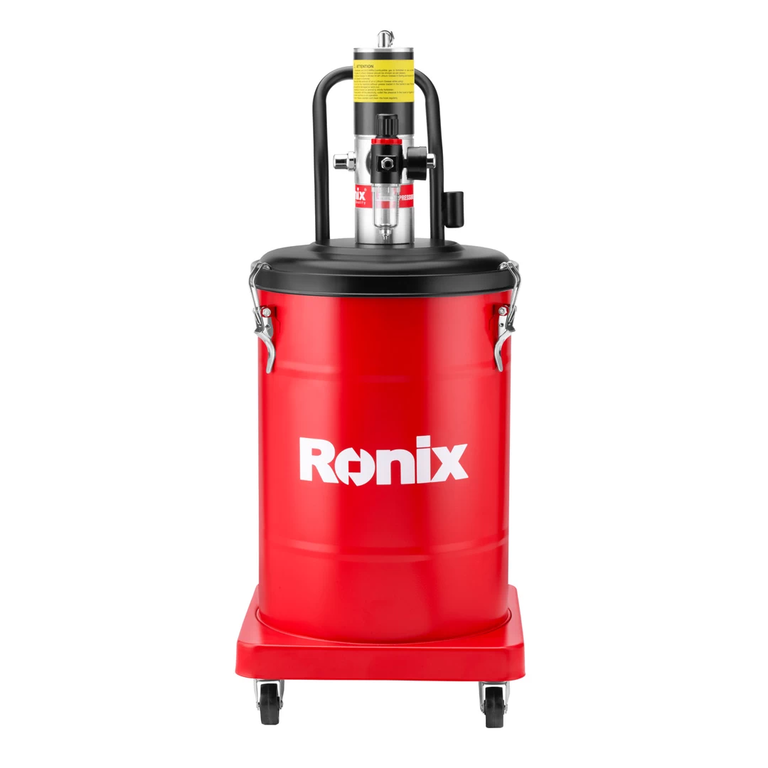

The Ronix RH-4308 Pneumatic Grease Pump is a high-performance lubrication tool designed for heavy-duty applications. With a powerful working pressure of 6-8 Bar (87-116 psi) and a 50:1 compression ratio, it ensures efficient lubrication of machinery and components. The pump features a 30-liter capacity for continuous operation, and its adjustable pressure gauge (0-1 MPA, 0-150 psi) provides precise control for a wide range of tasks. Built with a durable steel body, the RH-4308 stands 830 mm tall, has a diameter of 315 mm, and weighs 15kg. It comes equipped with a 4-meter high-pressure rubber hose for extended reach and versatility. The product is packaged with all essential accessories.
Model RH-4308
Total height 830 mm
Stand Dimension 430*φ315 mm
Body diameter 315 mm
Capacity 30 L
Max Pressure 400 Bar
5700 Psi
Working Pressure 6-8 Bar
87-116 Psi
pressure gauge graduation unit 0-1 Mpa
0-150 Psi
High-Pressure Rubber Hose Length 4 m
Body Material Steel
Net Weight 13 Kg
Total weight 15 Kg
packaging Color Box

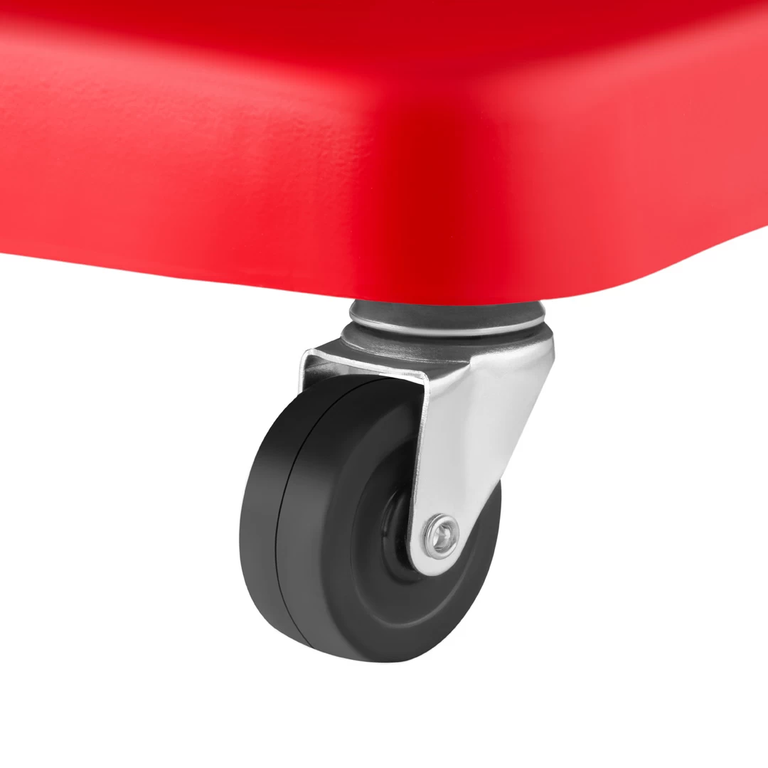

Included 1 PC HYQ-200 with Plain Type Nozzle, 1 PC Air Hose (4 m × 6 mm × 16 mm high-pressure rubber), 1 PC Gun Hose (30 cm), 1 PC Pointed Type Nozzle, 4 PCS Wheels, 1 Set Repair Kit
Downloads & Resources
Ronix-product-detail-10521-1

The RH-4308 provides high-pressure lubrication with a working pressure of 6-8 Bar, making it well-suited for maintaining various machines and components.

Standing 830 mm tall with a body diameter of 315 mm, the RH-4308 is compact yet robust, weighing 15 kg for easy placement and handling in any workspace.

Constructed from durable steel, the pump’s body is built to withstand heavy use, ensuring long-lasting performance even in demanding industrial environments.

The RH-4308 is a pneumatic grease pump that delivers high power with a working pressure of 6-8 Bar (87-116 psi). Its 50:1 compression ratio makes it suitable for nearly all heavy-duty lubrication applications, ensuring smooth operation of machines and components.

Featuring a generous 30-liter reservoir, this pump supports continuous operation without frequent refills, making it ideal for extended maintenance tasks.

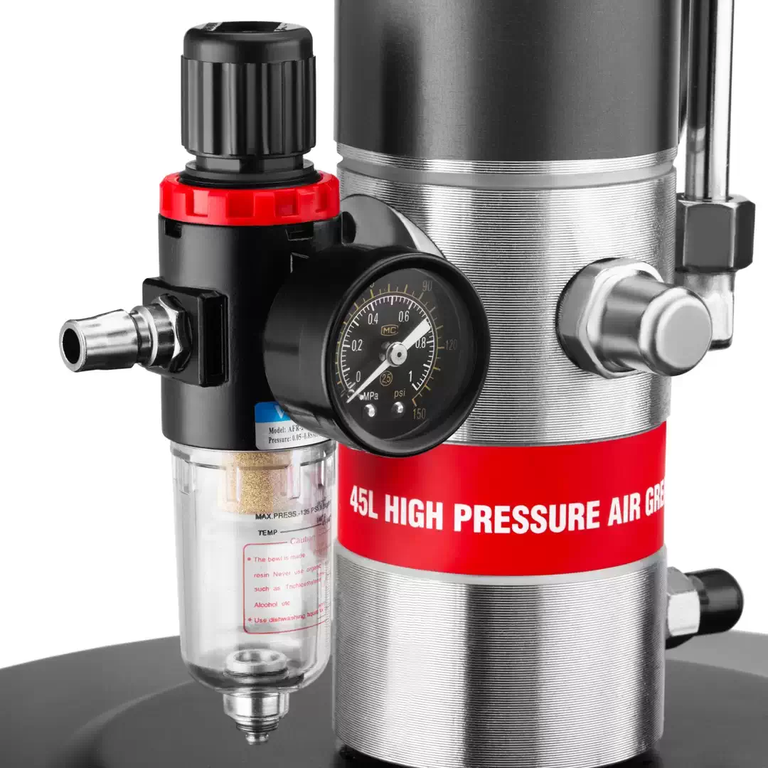

The adjustable pressure gauge allows control from 0-1 MPA (0-150 psi), offering flexibility and precision.

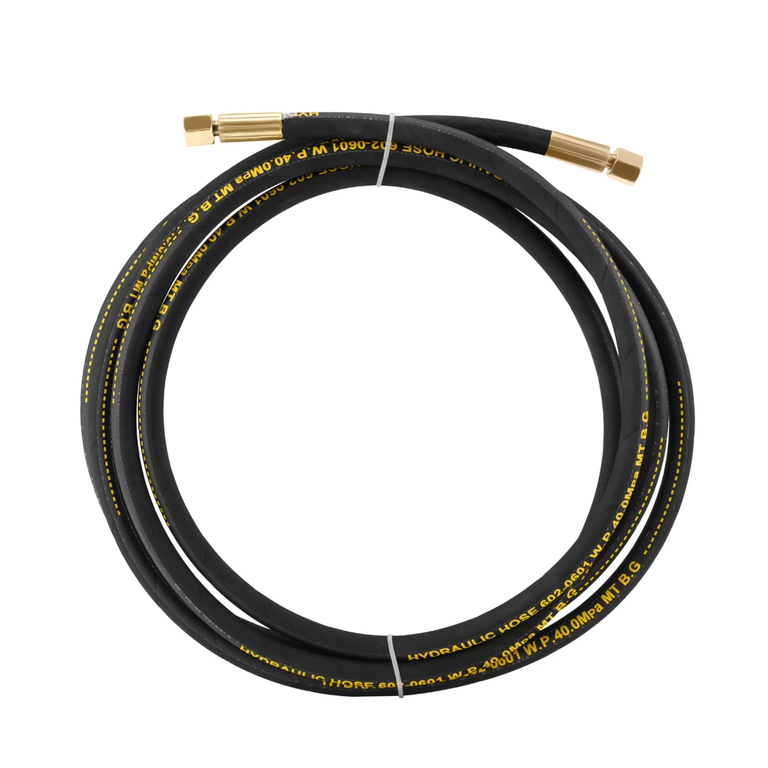

Equipped with a 4-meter high-pressure rubber hose, the RH-4308 ensures flexible reach and ease of operation across workspaces, even in hard-to-access areas.

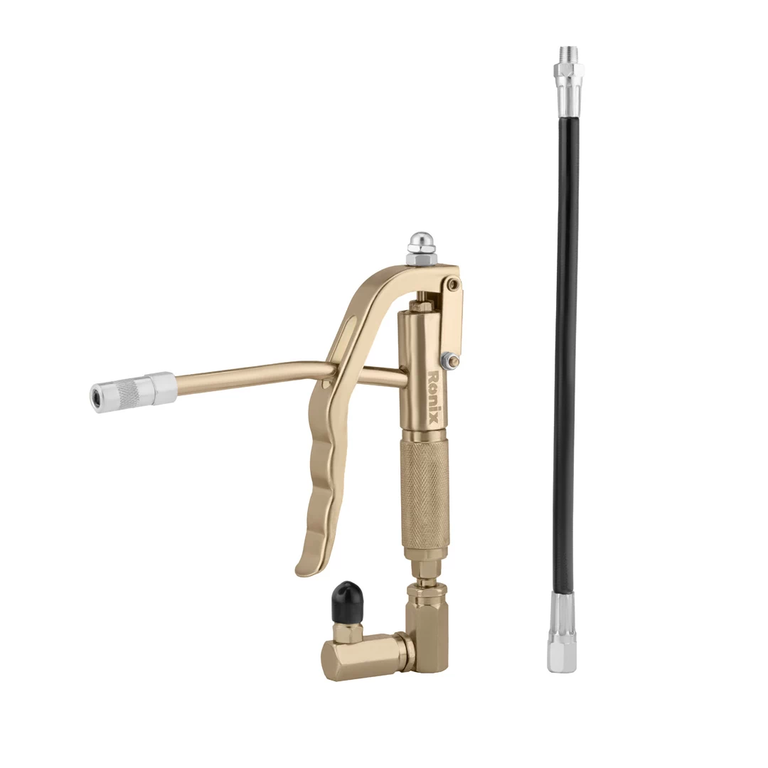

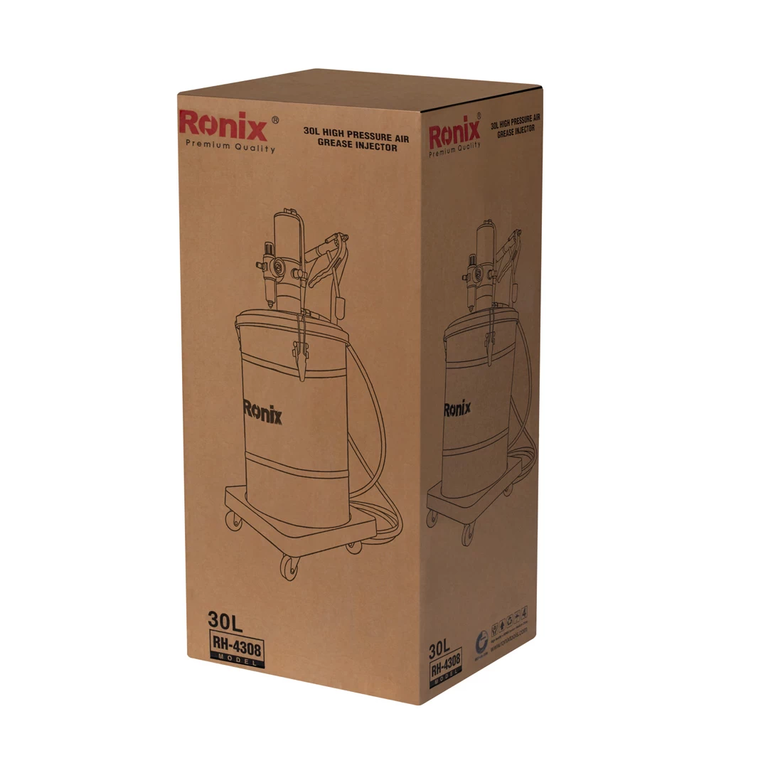

The RH-4308 is packaged in a color box with all essential accessories, including one HYQ-200 nozzle with a plain type nozzle, a 4-meter air hose (6mm x 16mm), a 30 cm gun hose, a pointed type nozzle, and a complete repair kit.
