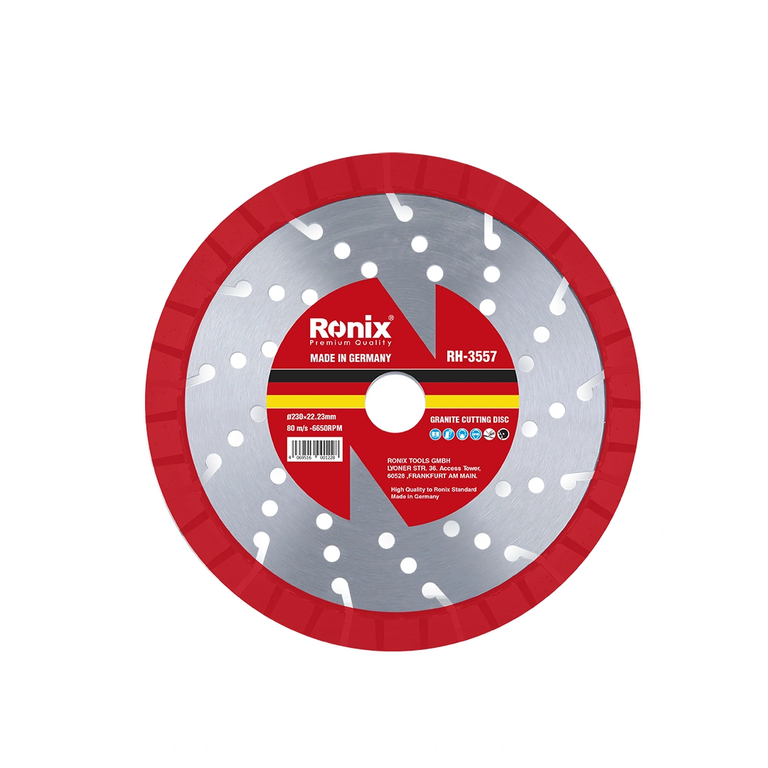

Granite Cutting Disc 230 mm - Segment 13 - German
Model : RH-3557
: 0

Model : RH-3557 (NA)

Granite Cutting Disc 230 mm - Segment 13 - German

Barcode For Card : 4069516001228

Barcode For Color Carton : 4069516001235

Bulk Order
  • Manufactured by forging process which ensures faster cut, longer life and a higher level of safety.
  • For each application there is an optimal combination of diamond, alloy and manufacturing parameters.
  • High-quality diamond tools with optimized cutting behaviors require the use of high-quality raw materials.
  • Diamond tools must be matched to the application (range of use, material to be cut, drive power, speed, etc.)
  • The optimum balance between diamond concentration, diamond quality
  • Applications Granite cutting disc for concrete, hard building materials, for rough cutting granite, etc.
  • For natural stones such as marble, wet cutting is usually done with table or bridge saws using blades larger than Ø230mm
  • The alloy hardness against the abrasion of the material to be processed guarantees reliable performance
  • Suitable for both dry and wet cutting with a strong bond between steel body and diamond segments.
  • Our tools are manufactured in accordance with EN13236 to ensure safe use.
  • The gaps between the diamond segments promote airflow and help dissipate heat generated during cutting
  • Different sizes that will cover all your fabrication cutting needs
Manufactured with German technology and in compliance with EN13236 safety standards, the Ronix RH-3557 is a 230 mm granite cutting disc engineered from high-quality raw materials and forged for maximum durability.
Designed for cutting hard construction materials and heavy-duty applications, its diamond-segment gaps promote airflow and efficiently dissipate heat, ensuring stable performance and extended disc life.
Model RH-3557
Body Material Laser weldable Steel
Style K168
Maximum RPM 6650 RPM
Max Speed 80 m/s
Application Granite
Tools Angel Grinder
Number of Teeth 15
Arbor Size 22.23 mm
Disc Thickness 1.8 mm
Wheel Diameter 230 mm
Segment Thickness 2.6 mm
Segment Height 13 mm
Weight 0.69 Kg
Downloads & Resources
Read the detailed description below to get more information on the different parts of the Ronix RH-3557 granite cutting disc.
The RH-3557 is manufactured from laser-weldable steel through a forging process and using high-quality raw materials, which guarantees faster and smoother cutting on hard materials, longer service life, and superior safety. Its precise construction ensures consistent performance across all applications.
Ideal for fine and smooth cutting on concrete, other hard building materials, and rough cuts in granite, the Ronix RH-3557 handles any heavy-duty stonework with ease. With a speed capacity of up to 6650 RPM for maximum efficiency, it supports both dry and wet cutting operations, ensuring versatile performance in any project.
This granite cutting disc is equipped with 15 teeth, each featuring a 13 mm segment height. It has an overall diameter of 230 mm and a thickness of 1.8 mm, weighing just 0.69 kg, which provides a balanced and durable design.
